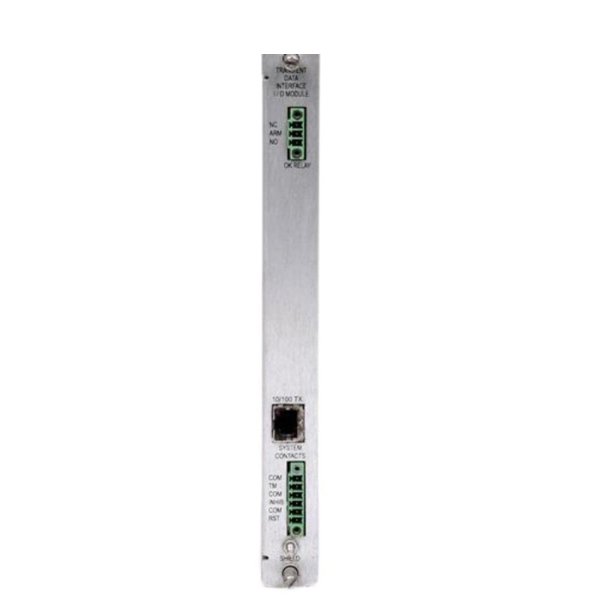

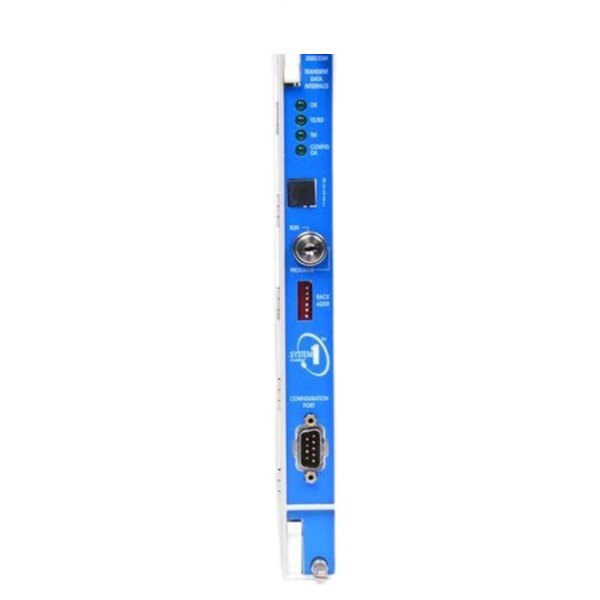

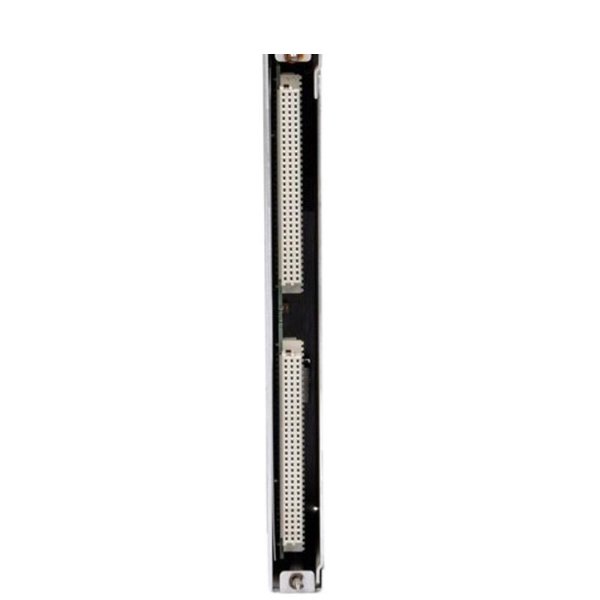

Bently Nevada 33500/22M 146031-01+288055-01 Transient Data Interface Module

The Bently Nevada 33500/22M Transient Data Interface Module (TDI), part numbers 146031-01 and 288055-01, is a high-performance communication and data interface unit designed for integration within the 3500 Machinery Protection System. This TDI version combines enhanced hardware capability with advanced transient data collection, supporting seamless communication with System 1® condition monitoring software.

Functioning as the system’s Rack Interface Module (RIM), it captures both steady-state and transient vibration or position data during machinery events such as startups, shutdowns, or malfunctions. With dual part numbers, this configuration includes both the core TDI module and associated terminal components for optimized installation and data transfer.

Installed exclusively in Slot 1 of the rack, the 33500/22M ensures centralized control, simplified configuration management, and high-resolution data communication for real-time diagnostics and predictive maintenance.

Technical Specifications

Applications

The Bently Nevada 33500/22M TDI module is engineered for demanding industrial environments that require advanced vibration diagnostics and real-time performance data. Its key applications include:

• Steam and Gas Turbines

  For transient and continuous vibration monitoring during rapid operational changes.

• Compressors and Blowers

  Tracks equipment health during high-speed rotation and mechanical shifts.

• Large Industrial Motors

  Useful in monitoring imbalance, misalignment, and bearing wear.

• Refineries & Petrochemical Plants

  Mission-critical asset monitoring for rotating machinery under hazardous conditions.

• Power Generation Units

  Enables predictive maintenance and integration into control networks.

• Oil & Gas Platforms

  Real-time diagnostics and early fault detection in high-risk offshore environments.

Product Advantages

• Unified Interface Functionality

  Replaces older RIM units by combining configuration control and transient data capture into one compact module.

• High-Speed Communication

  Ethernet support provides reliable and fast data transmission to plant-wide networks and SCADA systems.

• Advanced Transient Monitoring

  Captures high-resolution data during key machine events, improving diagnostics and downtime prevention.

• Redundancy Support

  Compatible with dual installation for improved fault tolerance and uninterrupted system communication.

• Seamless System 1® Integration

  Directly links to System 1® for centralized asset condition monitoring and trend visualization.

• Field-Replaceable Design

  Hot-swappable module can be replaced without powering down the rack, minimizing disruption.

• LED Diagnostics

  Front-panel indicators provide quick status information for communication and module health.

Frequently Asked Questions (FAQ)

1. What is the main role of the 33500/22M TDI module?

   It serves as a communication and configuration hub, managing data flow between the rack and System 1®.

2. What do the part numbers 146031-01 and 288055-01 refer to?

   These refer to the module and associated connector hardware needed for full operation.

3. Can the module be installed in any rack slot?

   No, it must be installed in Slot 1 only.

4. Is this module compatible with older 3500 systems?

   Yes, it is fully backward-compatible with other 3500 modules.

5. How is transient data collected and used?

   It captures detailed data during machine events and sends it to System 1® for analysis.

6. What happens if the TDI fails during operation?

   A redundant TDI (if configured) will automatically take over to maintain communication.

7. Can this module be replaced without shutting down the system?

   Yes, it supports hot-swapping for field maintenance.

8. What types of communication ports are available?

   Ethernet, RS-232, and RS-422/485 are included for flexible integration.

9. How is the module powered?

   It is powered through the 3500 rack backplane, no external power source is required.

10. Does it support condition monitoring software?

    Yes, it’s specifically designed to integrate with System 1® for real-time diagnostics.
