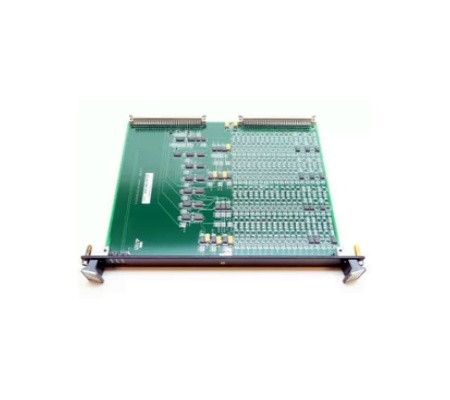

General Electric IS200ESELH1AAA Exciter Collector Board

The IS200ESELH1AAA is an exciter collector board that receives logic level gate pulses from a connected EMIO board. The EMIO board is a VME board that manages the inputs and outputs of multiple terminal boards. The gate pulse signals are sent to the EGPA exciter gate pulse amplifier board mounted in another cabinet. The LEDs are labeled Power, Activity, and Gate. The panel is labeled with the board ID and the GE logo. The IS200ESELH1AAA has two backplane connectors. The LED is driven by the gate input of the EMIO board. It lights up to indicate that the board is actively gated, which means it is processing and transmitting the gate pulse signal to the exciter gate pulse amplifier board.

Frequently asked questions about the product are as follows:

-What is the function of the IS200ESELH1AAA exciter collector plate?

It collects and processes signals from the exciter system to ensure correct control of the generator excitation current and stable power generation.

-How many units are required for a simplex system?

In a simplex system, only one unit is required.

-What does the ESEL function abbreviation mean?

Created for a fine function abbreviation dialog representation of the IS200ESELH1AAA exciter collector plate product number itself.
