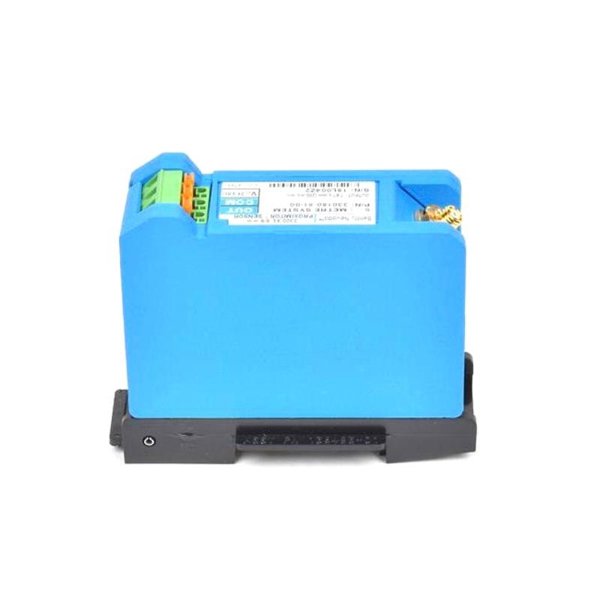

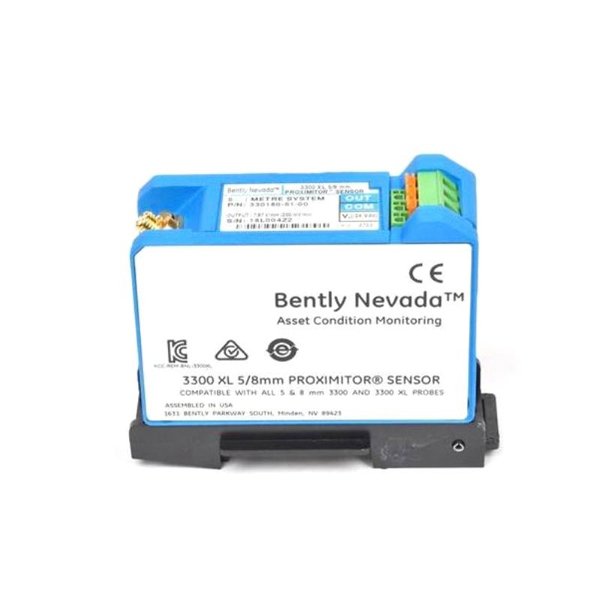

Bently Nevada 330180-A51-B00 3300 XL 8mm Proximitor Sensor

The Bently Nevada 330180-A51-B00 is a part of the 3300 XL 8mm Proximitor Sensor series, renowned for its reliability and performance in critical industrial vibration monitoring and machinery protection systems. Developed by GE’s Bently Nevada division, this sensor is engineered to provide highly accurate, non-contact displacement measurements in demanding environments such as power generation, oil and gas, and heavy manufacturing.

The “A51” suffix in this model designates a specific configuration related to system length (commonly 5 meters) and potentially special certification or market-specific variants. The Proximitor sensor works in conjunction with proximity probes and extension cables to monitor the dynamic and static position of rotating shafts and machinery components.

Technical Specifications

Applications

• Turbomachinery Protection: For continuous vibration and axial position monitoring on critical assets such as gas turbines, steam turbines, compressors, and generators.

• Rotating Equipment Monitoring: In oil refineries, petrochemical plants, pulp & paper mills, and mining operations.

• Condition-Based Maintenance (CBM): For early fault detection and machine health diagnostics.

• OEM Integration: Used by original equipment manufacturers in vibration detection systems and control loops.

• Power Generation: Suitable for use in nuclear, thermal, and hydroelectric generation plants.

Product Advantages

• Highly Accurate Displacement Measurement: With a standard 200 mV/mil output, it ensures precision in detecting shaft movement and vibration amplitude.

• Robust and Reliable: Designed to withstand harsh environments with excellent immunity to EMI/RFI.

• Global Certifications: ATEX, IECEx, and CSA certifications make it suitable for hazardous and explosive environments.

• Long-term Stability: Excellent temperature stability and mechanical durability for long operating life.

• Modular System: Easily integrated with Bently Nevada’s monitoring systems such as 3500 Series.

• Field Proven: Backed by decades of industrial use and continuous improvement by GE Bently Nevada.

• Flexible Mounting: DIN rail and bulkhead options available for versatile installation.

• Interchangeable Components: Compatible with other 3300 XL series probes and extension cables.

FAQ(Frequently Asked Questions)

1. What is the primary function of the 330180-A51-B00 sensor?

   It measures the dynamic and static position of a shaft in rotating machinery, crucial for vibration monitoring and machinery protection.

2. Can this sensor operate in hazardous areas?

   Yes, it has certifications like ATEX and IECEx, making it safe for use in potentially explosive environments.

3. What does the “A51” configuration represent?

   A51 typically denotes a 5-meter system length and may imply market-specific certification or application adaptations.

4. Is the sensor compatible with older Bently Nevada systems?

   Yes, it is backward compatible with many legacy systems, especially 3300 and 3500 series monitors.

5. Does this sensor support both radial and axial measurements?

   When used with appropriate probes and mounting, it can support both radial and axial position measurements.

6. What kind of cables are used with this sensor?

   It is used with standard Bently Nevada extension cables and proximity probes designed for 3300 XL systems.

7. How is the sensor typically mounted?

   It can be mounted using DIN rail or directly to a bulkhead via screws depending on the application setup.

8. How often does this sensor require calibration?

   These sensors are factory-calibrated, and typically require recalibration only during system overhauls or if performance deviates.

9. Can I use this with third-party probes?

   For best accuracy and signal integrity, use only Bently Nevada certified proximity probes and cables.

10. What industries commonly use this model?

    Oil & gas, petrochemical, power generation, paper, mining, and aerospace are among the major users.
