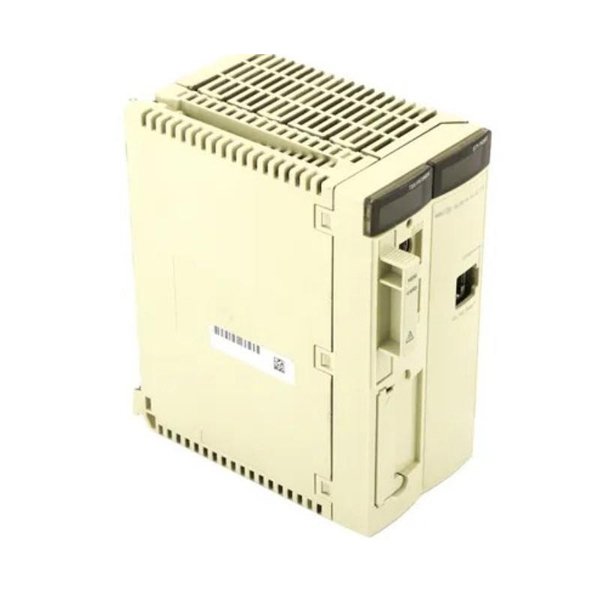

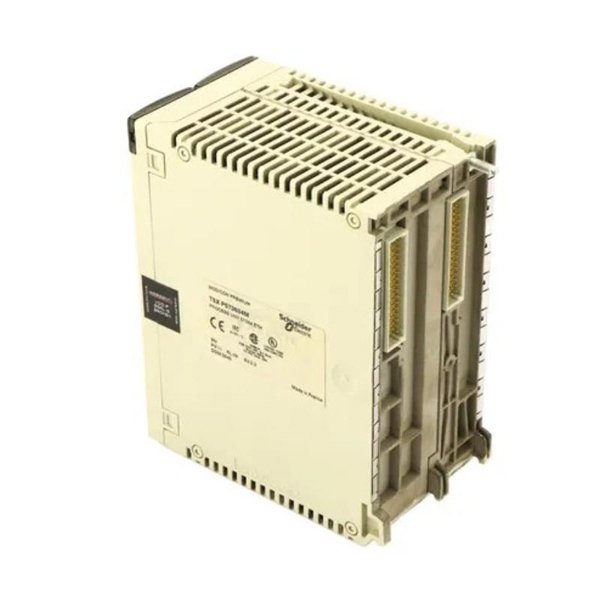

Schneider TSXP573634M Unity Processor

The Schneider TSXP573634M is a high-performance Unity Processor Module from the Modicon Premium PLC family, designed for advanced automation and control applications. With a 1 MB program memory and integrated Ethernet TCP/IP communication port, the TSXP573634M is ideal for complex process control, manufacturing automation, and SCADA systems.

It supports Unity Pro programming software, allowing structured programming with IEC 61131-3 languages, diagnostic features, and real-time performance. This processor is widely used in mission-critical industrial environments requiring fast cycle times, high memory capacity, and network connectivity.

Key Features

• High-speed 66 MHz processor for real-time control

• 1 MB internal RAM for user programs

• Integrated Ethernet TCP/IP port

• Up to 64 distributed I/O racks

• Compatible with Unity Pro software (IEC 61131-3 compliant)

• Modbus, Ethernet, and Uni-Telway protocol support

• Built-in diagnostics and real-time clock

• Support for floating-point arithmetic

• Expandable via multiple communication and I/O modules

• Redundancy support for critical applications

Technical Specifications

Industry Applications

• Industrial Automation – Factory-level control, discrete and batch processing

• Water Treatment – Pump and flow regulation, telemetry systems

• Energy & Utilities – Substation automation, SCADA integration

• Oil & Gas – Pipeline control, drilling equipment automation

• Food & Beverage – High-speed packaging and process control

• Pharmaceutical – Validated control systems and data logging

Product Advantages

• High Performance – Fast processing and large memory for demanding logic

• Scalability – Expandable architecture supporting thousands of I/O points

• Network Integration – Native Ethernet for easy connectivity

• Robust Programming – Unity Pro enables structured programming and debugging

• Secure and Reliable – With built-in watchdog and error diagnostics

• Modular Flexibility – Supports a wide range of I/O, communication, and motion modules

• Proven Industrial Use – Trusted in complex and continuous process industries

Frequently Asked Questions (FAQ)

1. What software is used to program the TSXP573634M?

   Unity Pro (now EcoStruxure Control Expert) is used for programming.

2. Does it support Ethernet communication?

   Yes, it has a built-in Ethernet TCP/IP port.

3. Can I use Modbus communication with this CPU?

   Yes, Modbus is supported via serial and Ethernet.

4. How many I/O points are supported?

   Up to 2048 discrete I/O points can be configured.

5. Is redundancy supported?

   Redundancy is supported with additional modules.

6. What programming languages are compatible?

   Supports all IEC 61131-3 standard languages: LD, FBD, ST, IL, SFC, and CFC.

7. Does it support floating-point operations?

   Yes, including real and double-precision floating-point.

8. Is there a real-time clock included?

   Yes, the module has an integrated RTC.

9. What is the memory size of the program?

   1 MB for user program, 256 KB data memory.

10. What are the main differences between TSXP573634M and TSXP572634M?

    TSXP573634M offers higher memory, faster processing, and better network capabilities.
