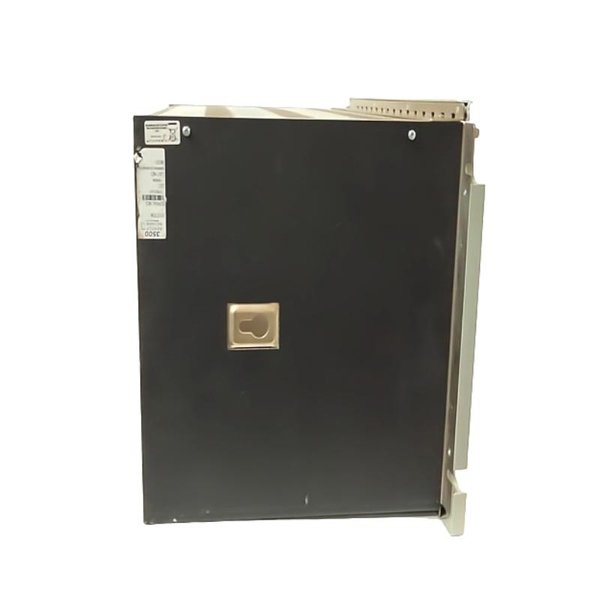

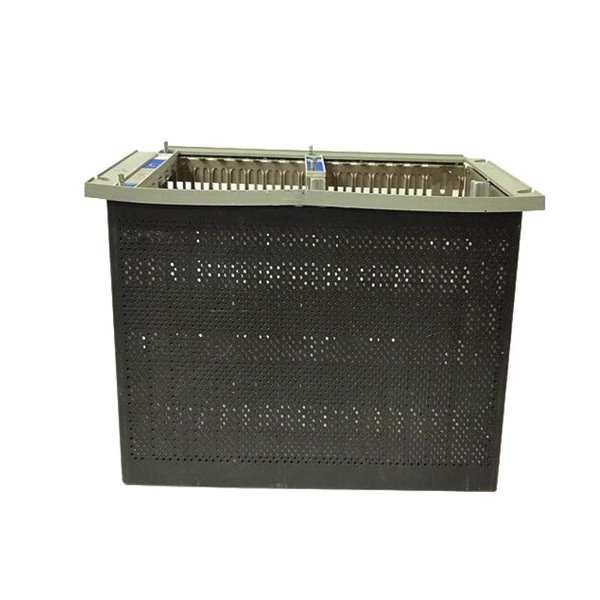

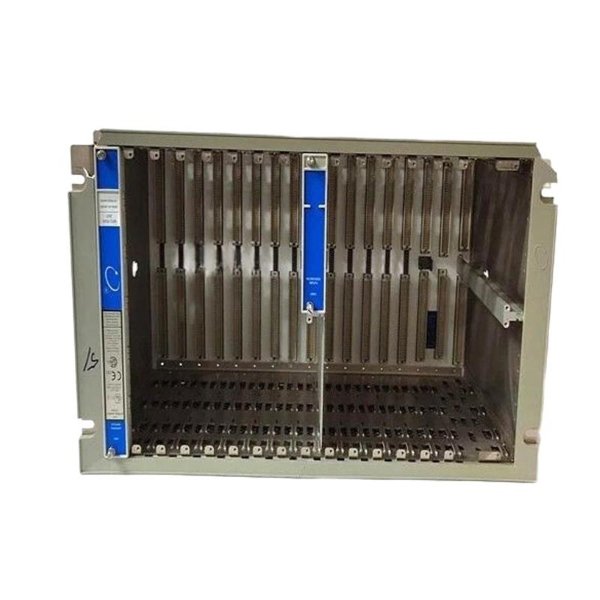

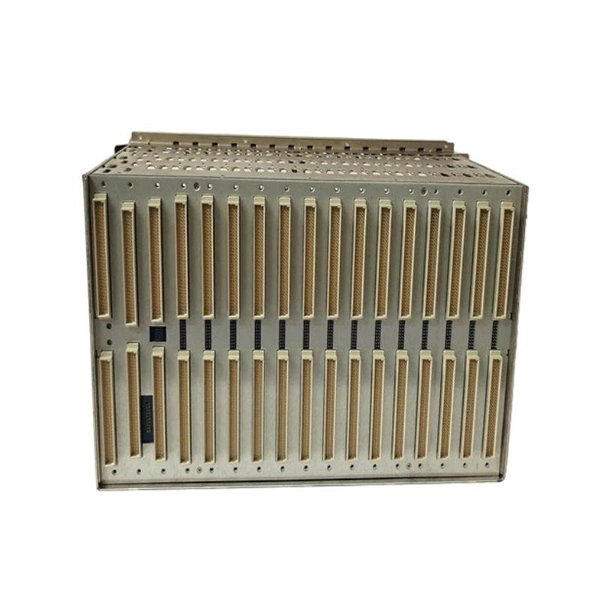

Bently Nevada 3500/05-01-03-01 3500/05 System Rack

The Bently Nevada 3500/05-01-03-01 System Rack is a vital component within the 3500 Series Machinery Protection System. It serves as a sturdy and reliable platform to house multiple monitoring modules, facilitating the collection, processing, and transmission of critical machinery health data. Built for industrial-grade durability, the rack ensures reliable power distribution and high-speed communication across the modules it supports. Its robust design supports a wide range of environmental conditions, making it suitable for diverse industrial applications including power generation, oil and gas, and heavy manufacturing. The 3500/05-01-03-01 model enhances system scalability and simplifies maintenance, supporting the overall goal of maximizing machinery uptime and operational safety.

Product Specifications

Applications

The Bently Nevada 3500/05-01-03-01 System Rack is widely utilized in critical machinery protection and condition monitoring systems across various industrial sectors:

• Turbine and compressor monitoring in oil and gas industries

• Generator protection in power plants

• Rotating equipment condition monitoring in petrochemical and chemical processing

• Machinery protection in heavy manufacturing facilities

• Integration within refinery and industrial plant safety systems

• Water and wastewater treatment facility equipment monitoring

Advantages

• Robust Industrial Build: Manufactured with high-grade steel to withstand industrial environments and mechanical stresses.

• Modular Architecture: Accommodates up to seven 3500 series modules, allowing tailored system configurations.

• Integrated Power Distribution: Ensures consistent and reliable power supply to all modules, minimizing wiring complexity.

• Efficient Backplane Communication: Facilitates stable and high-speed data and control communication among modules.

• Standard Rack Mounting: Compatible with standard 19-inch rack enclosures for easy installation and servicing.

• Wide Operating Temperature Range: Supports reliable operation across typical industrial temperature conditions.

• Simplified Maintenance: Modular design enables quick module swaps or upgrades with minimal downtime.

• Trusted Performance: Proven reliability in critical machinery protection applications worldwide.

Frequently Asked Questions (FAQ)

1. Which modules are compatible with the 3500/05-01-03-01 System Rack?

   Supports all Bently Nevada 3500 series machinery protection modules.

2. How many modules can be installed in this system rack?

   The rack accommodates seven 3500 series modules.

3. Does the rack supply power to the installed modules?

   Yes, it includes integrated power distribution to all modules.

4. What communication technology does the rack use?

   Modules communicate through a backplane bus system.

5. Is this rack compatible with standard mounting hardware?

   Yes, it fits standard 19-inch rack enclosures.

6. What environmental conditions is the rack rated for?

   It operates reliably between -40°C and 70°C.

7. Can modules be replaced without powering down the entire system?

   Module replacement is possible with minimal system disruption, following operational procedures.

8. Does the rack support redundant power supplies?

   While the rack supports modules capable of redundancy, power supply redundancy depends on configuration.

9. What safety certifications does the rack hold?

   It complies with relevant industrial safety and quality standards.

10. How is grounding managed within the rack?

    The rack is equipped with grounding points to ensure system safety and reduce noise interference.
