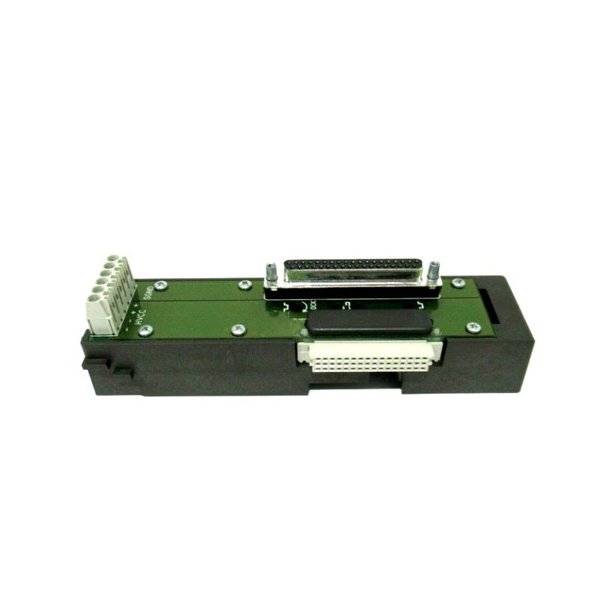

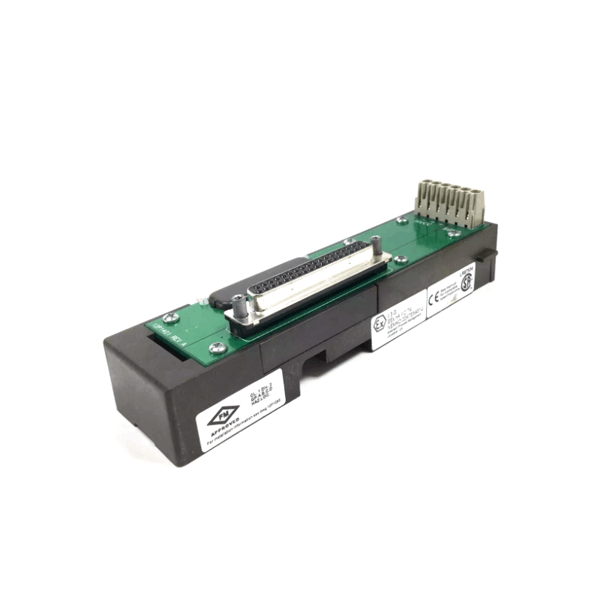

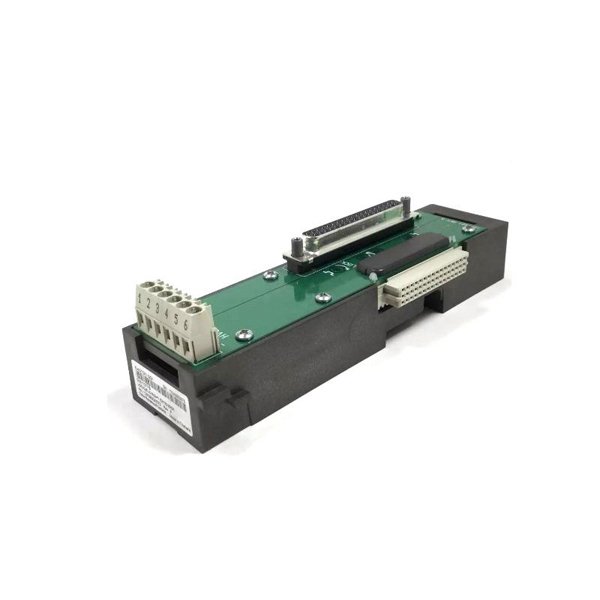

Emerson KJ4010X1-BG1 12P0830X062 Local Bus Right Extender

The Emerson KJ4010X1-BG1 12P0830X062 Local Bus Right Extender is an essential component of the Emerson DeltaV distributed control system. This module is designed to extend the functionality of the DeltaV Local Bus by providing additional connection points for input and output modules. The right extender helps to ensure that the control system maintains reliable communication and connectivity within industrial automation networks. The module is engineered to support high-speed data exchange, enhancing the overall system’s performance by enabling seamless communication across different devices. It also allows for easy scalability, ensuring that the DeltaV system can accommodate future expansions without compromising efficiency or reliability. This makes the KJ4010X1-BG1 ideal for use in complex automation and control systems, offering flexibility and increased capacity in environments where demand is high.

Product Specifications

The following table presents the detailed specifications of the Emerson KJ4010X1-BG1 12P0830X062 Local Bus Right Extender:

Applications

The Emerson KJ4010X1-BG1 12P0830X062 Local Bus Right Extender is primarily used in automation and control applications where the expansion of DeltaV systems is required. The module is beneficial in industries such as:

• Manufacturing Automation: Used for expanding the I/O capacity of DeltaV systems, facilitating better control of industrial processes and machinery.

• Oil & Gas: Enhances the control system’s scalability to monitor and control various processes, ensuring optimal safety and efficiency.

• Power Generation: Ideal for controlling equipment such as turbines, boilers, and other power generation devices, ensuring smooth operation of power plants.

• Chemical Processing: Provides additional connectivity for sensors and actuators in chemical production plants, improving process control and safety.

• Water Treatment: Supports the extension of control systems in water treatment facilities, where reliable data exchange and scalability are critical.

• Pharmaceuticals: Used to monitor and control critical processes in pharmaceutical production, ensuring quality control and regulatory compliance.

Advantages

1. Seamless Integration: The KJ4010X1-BG1 is fully compatible with Emerson’s DeltaV systems, ensuring easy integration into existing control setups.

2. High Data Throughput: This module supports fast and efficient communication across devices, allowing the control system to operate smoothly with minimal latency.

3. Scalability: It provides the flexibility to expand control systems without the need for a major overhaul, helping businesses grow without limitations.

4. Increased Reliability: Designed to handle high-speed data exchange, it minimizes the risk of communication failures, which enhances overall system reliability.

5. Compact Design: The KJ4010X1-BG1 is designed with space efficiency in mind, allowing it to be installed in compact spaces without sacrificing functionality.

6. Wide Temperature Range: The module operates reliably across a wide temperature range, making it suitable for harsh industrial environments.

7. Power Efficiency: With low power consumption, the module ensures efficient operation, helping to reduce the overall energy footprint of the control system.

8. Rugged Construction: The use of high-quality materials and an IP20 rating ensures durability in industrial settings where reliability is paramount.

9. Future-Proof: The KJ4010X1-BG1 is designed to be compatible with future DeltaV system expansions, providing flexibility for future upgrades.

10. Safety Certifications: Certified to meet industry safety standards (UL, CE, RoHS), ensuring safe operation in regulated industries.

FAQ

1. What is the function of the KJ4010X1-BG1 module?

   • The KJ4010X1-BG1 is a Local Bus Right Extender that expands the number of I/O modules that can be connected to the DeltaV system, enabling greater system flexibility.

2. How many channels does the KJ4010X1-BG1 support?

   • The module supports up to 32 channels, depending on the system configuration.

3. What is the operating voltage of the KJ4010X1-BG1?

   • The module operates at 24 V DC.

4. Is the KJ4010X1-BG1 compatible with all DeltaV systems?

   • Yes, it is fully compatible with all DeltaV systems, ensuring easy integration.

5. What is the weight of the KJ4010X1-BG1 module?

   • The weight of the module is 0.231 kg.

6. What is the temperature range for operating the KJ4010X1-BG1?

   • It operates in temperatures ranging from -20°C to +60°C.

7. How is the KJ4010X1-BG1 mounted?

   • The module is mounted on a DIN rail, which is standard for most control systems.

8. Does the module require any additional components for installation?

   • No additional components are required; it is designed for simple integration with the DeltaV system.

9. Can the KJ4010X1-BG1 module be used in hazardous environments?

   • Yes, the module is designed to operate reliably in industrial environments, but it is not rated for use in explosive atmospheres.

10. What certifications does the KJ4010X1-BG1 module have?

    • The module is certified with UL, CE, and RoHS standards, ensuring compliance with international safety and environmental regulations.
