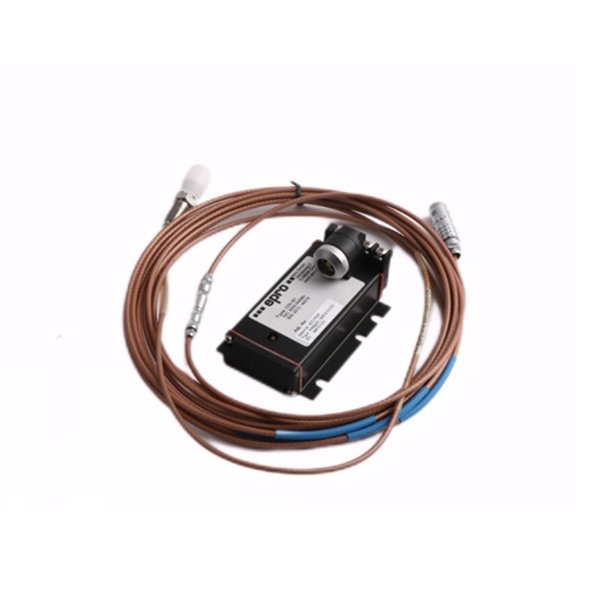

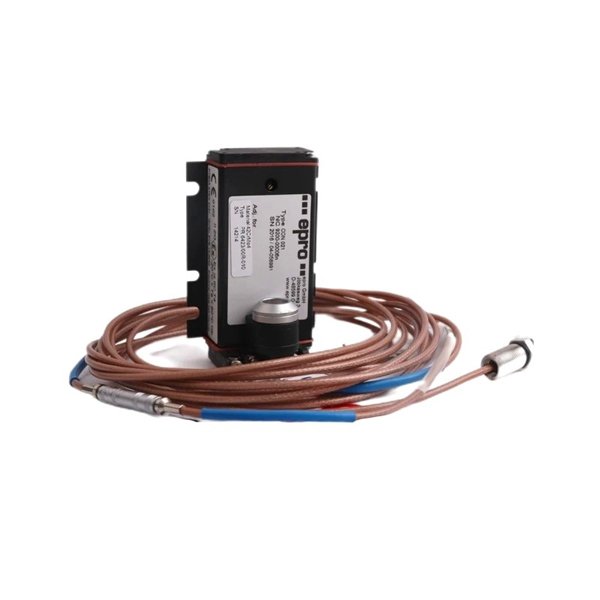

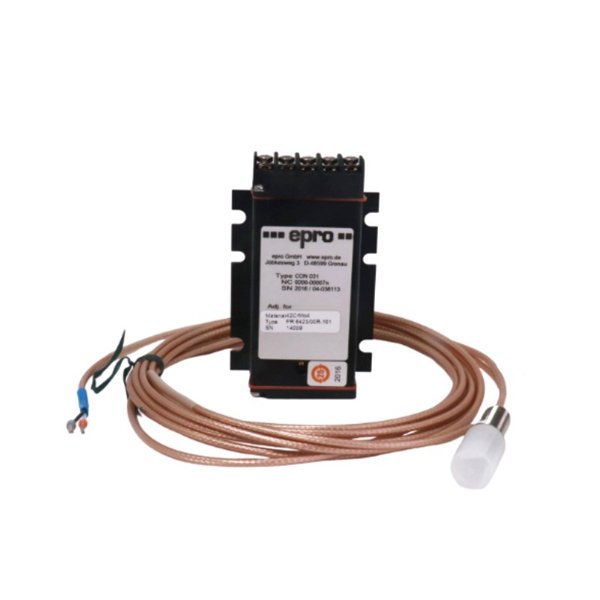

Epro PR6424/102-030 16mm Eddy Current Sensor

The Epro PR6424/102-030 is a highly reliable and precise 16mm Eddy Current Sensor designed to offer non-contact displacement, position, and vibration measurements. Utilizing advanced eddy current technology, this sensor provides accurate and rapid feedback for demanding industrial applications. It features a 16mm sensing head and offers a non-invasive measurement solution, ensuring minimal maintenance and long-lasting performance.

The Epro PR6424/102-030 is known for its robust design, high precision, and versatility, making it suitable for applications that require continuous, high-accuracy position sensing. It is capable of detecting even the smallest displacement changes, which makes it ideal for applications where precision is crucial.

Product Specifications

Product Applications

The Epro PR6424/102-030 16mm Eddy Current Sensor excels in a variety of industrial applications, where high precision and non-contact measurements are required. Here are some of the key applications:

1. Rotating Machinery Monitoring

   This sensor is commonly used in industries such as oil & gas, mining, and power generation to monitor the displacement and vibration of rotating machinery like motors, generators, pumps, and turbines.

2. Automotive Manufacturing

   In the automotive industry, the sensor helps with precise measurements in engine components, assembly lines, and testing stations, ensuring high-quality manufacturing standards.

3. Aerospace

   The Epro PR6424/102-030 sensor is perfect for use in aerospace applications, where it is used to measure the position of critical components such as actuators, landing gear systems, and engine parts.

4. Vibration Monitoring

   The sensor is widely used in industrial environments to monitor vibration levels and detect early signs of malfunction in mechanical systems, helping to avoid costly breakdowns and ensure efficient operations.

5. Precision Positioning

   It is used in applications requiring extremely high precision such as micromachining, semiconductor manufacturing, and position feedback systems for robotics and automation.

6. Turbine and Generator Monitoring

   The sensor is crucial for measuring the displacement of turbines and generators to detect potential faults in rotating machinery, ensuring reliable power generation in nuclear and thermal plants.

Product Advantages

• Non-contact Sensing

  The Epro PR6424/102-030 utilizes eddy current technology, which allows for non-contact sensing of displacement and position, thus eliminating wear and tear, ensuring durability and a longer operational lifespan.

• High Accuracy

  With an accuracy of ±0.1% of full scale, this sensor delivers precise and dependable measurements, ensuring that even the smallest displacement changes are detected.

• Fast Response Time

  The sensor features a response time of less than 1 ms, providing quick feedback for real-time applications, making it suitable for dynamic control systems that require fast processing.

• Robust Construction

  Designed to meet the demands of harsh industrial environments, the IP67 rating ensures that the sensor is protected against dust, moisture, and other environmental factors.

• Wide Temperature Range

  The Epro PR6424/102-030 sensor operates in a wide temperature range from -20°C to +70°C, making it adaptable to a variety of operational conditions.

• Easy Integration

  The sensor is designed for easy installation and integration with existing systems, featuring threaded or flange mounting options, making it versatile for various setups.

FAQ

1. What sensing technology does the Epro PR6424/102-030 sensor use?

   The Epro PR6424/102-030 uses eddy current technology to measure displacement and position.

2. What is the sensing head diameter of this sensor?

   The sensing head diameter is 16 mm.

3. What is the typical measuring range of this sensor?

   The typical measuring range of this sensor is 0-10 mm.

4. What output signal does the Epro PR6424/102-030 provide?

   The sensor provides an analog output (voltage or current).

5. What is the accuracy of this sensor?

   The accuracy is ±0.1% of full scale.

6. What is the supply voltage required for this sensor?

   The sensor requires a nominal 24 V DC supply voltage.

7. What is the response time of the Epro PR6424/102-030 sensor?

   The sensor has a response time of less than 1 ms.

8. What temperature range can the sensor operate in?

   The sensor can operate in temperatures ranging from -20°C to +70°C.

9. What is the environmental protection rating of this sensor?

   The sensor has an IP67 rating, ensuring it is dust-tight and water-resistant.

10. How can the sensor be mounted?

    The sensor can be mounted using either threaded or flange mounting options.
