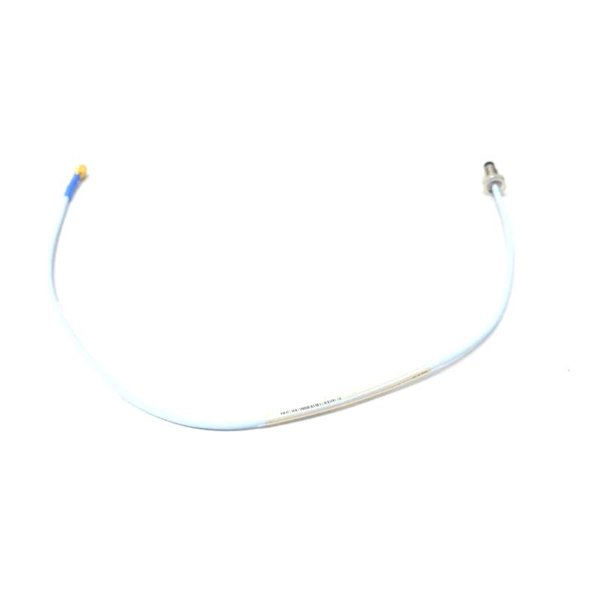

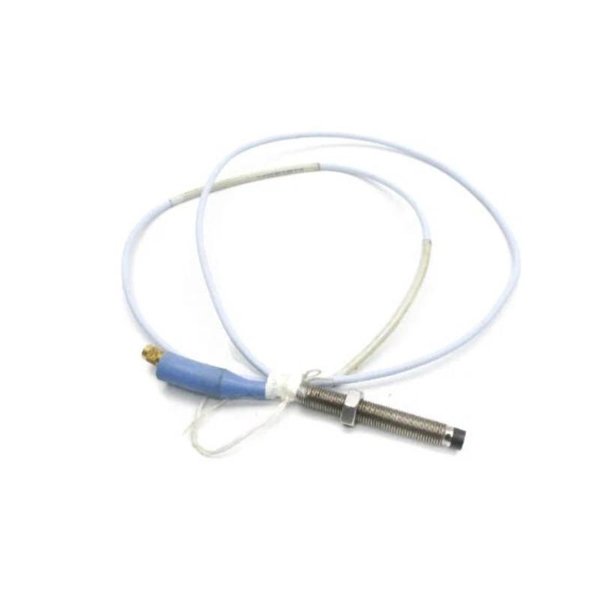

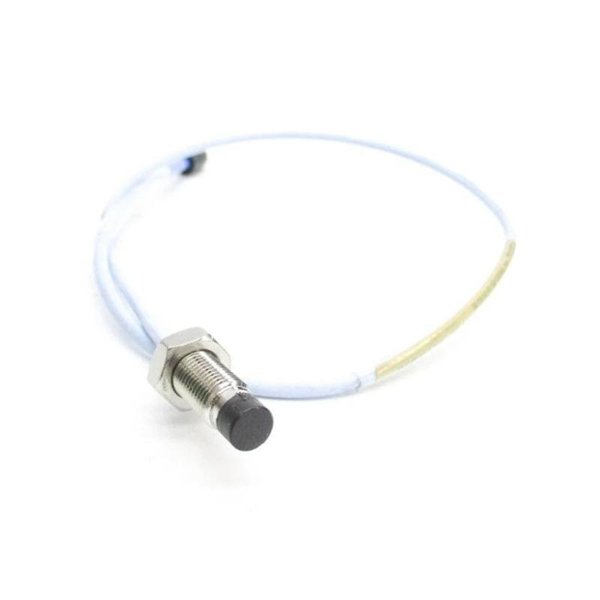

Bently Nevada 330101-00-20-90-12-05 3300 XL 8mm Proximity Probe

The Bently Nevada 330101-00-20-90-12-05 is part of the 3300 XL 8 mm Proximity Probe System, widely used for machinery condition monitoring and protection. It ensures accurate non-contact measurement of shaft vibration and displacement. With robust construction, high reliability, and industry-proven design, it is suitable for critical rotating machinery in power generation, petrochemical, and industrial sectors.

Technical Specifications

Applications

• Shaft vibration and displacement monitoring

• Turbine, compressor, and pump condition monitoring

• Axial position measurement in rotating machinery

• Radial vibration detection in large industrial machines

• Condition-based maintenance in petrochemical plants and power stations

Advantages

• High durability: PPS probe tip and rugged design withstand harsh environments.

• Reliable performance: Maintains precise linearity over wide frequency ranges.

• Improved retention: TipLoc technology prevents probe tip movement.

• Strong cable system: CableLoc provides high pull strength for demanding conditions.

• Leak protection: Optional FluidLoc option prevents oil or fluid ingress.

• Interchangeability: Compatible across 5 mm and 8 mm XL systems for easy replacement.

FAQ

Q1: What is the measuring range of the 3300 XL 8 mm probe?

A1: It provides a linear measurement range of approximately 2 mm (80 mils).

Q2: Is the probe interchangeable with older 3300 series probes?

A2: Yes, the 3300 XL series is backward compatible with earlier systems.

Q3: Can the probe withstand high-temperature environments?

A3: Yes, it supports continuous operation from -35 °C to +180 °C.

Q4: What industries commonly use this probe?

A4: Power generation, petrochemical, oil & gas, and heavy industrial applications.

Q5: What is the advantage of the PPS probe tip?

A5: It improves wear resistance and chemical resistance compared to earlier designs.

Q6: How is cable retention improved in this model?

A6: The CableLoc design ensures pull strength of up to 133 N (30 lbf).

Q7: What connector type does this part use?

A7: It uses the ClickLoc 90° connector for secure and repeatable connection.

Q8: Can the probe be used for axial position monitoring?

A8: Yes, it is suitable for both radial vibration and axial displacement monitoring.

Q9: How heavy is the probe including cable?

A9: The total weight is approximately 2.907 kg for the 9 m length.

Q10: What Proximitor sensor is compatible with this probe?

A10: It is designed to work with the 3300 XL Proximitor Sensor (model 330180).
