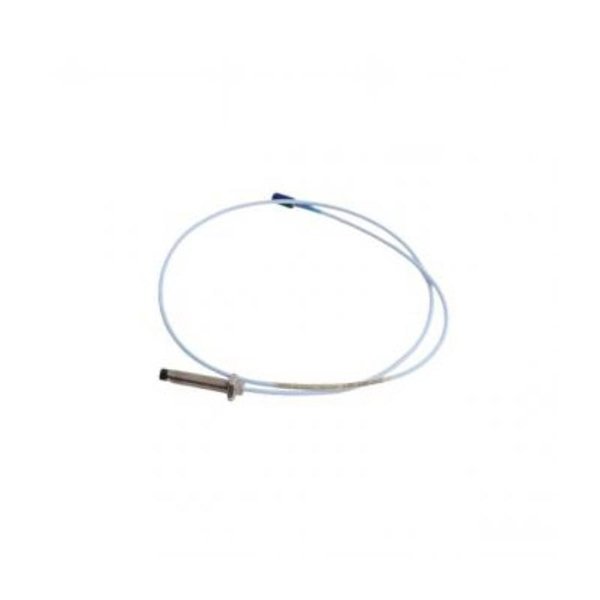

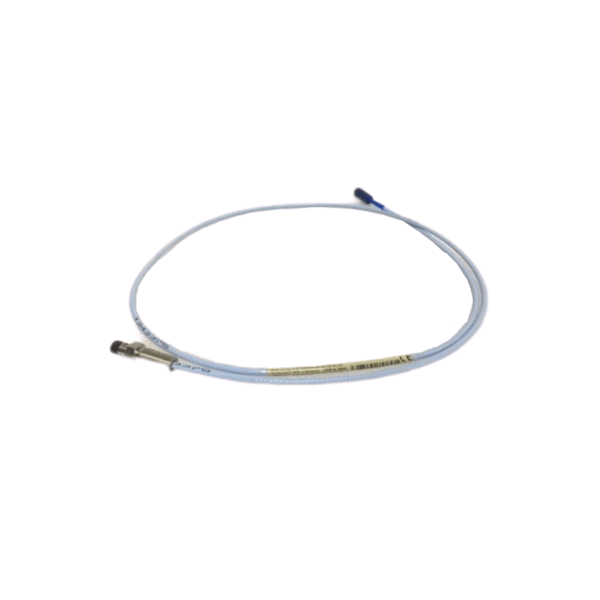

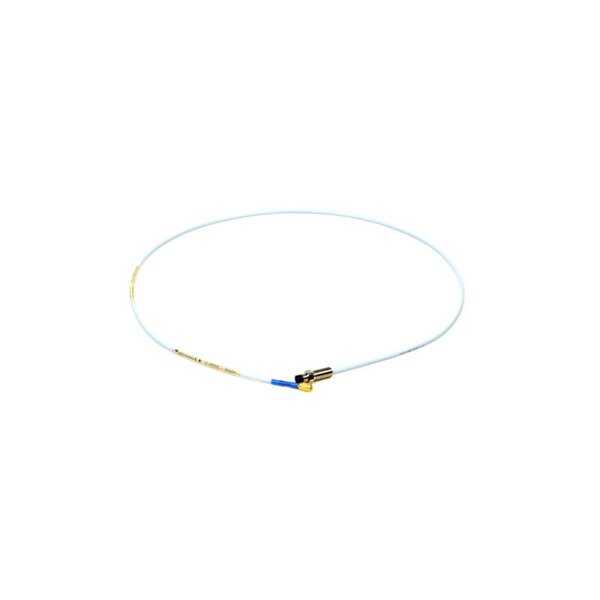

Bently Nevada 330195-02-12-05-00 3300 XL 8mm Reverse Mount Probe

The Bently Nevada 330195-02-12-05-00 is a high-performance extension cable designed specifically for use with the 3300 XL Series Proximity Transducer System. This system is widely deployed in rotating machinery condition monitoring, where accurate vibration and position measurements are critical. The 330195 series extension cables serve as an intermediary between the probe and the Proximitor sensor, ensuring signal integrity over long distances and enhancing the reliability of data acquisition in harsh industrial environments.

This particular model, identified by the part number 330195-02-12-05-00, is a 5-meter (approx. 16.4 feet) long extension cable with a straight connector design and durable jacket, suitable for challenging installation environments, including those with high temperatures and electrical interference.

Technical Specifications

Product Advantages

• Durable Industrial Design: Built with high-temperature-resistant materials and robust connectors to withstand harsh operational environments.

• Signal Integrity: Double-shielded construction ensures low signal degradation and high accuracy over extended cable lengths.

• Easy Integration: Fully compatible with Bently Nevada 3300 XL Proximity Systems, ensuring hassle-free deployment and scalability.

• Reliable Measurement Transmission: Ensures clean and undistorted signal transmission between the probe and monitoring module, even in EMI-prone areas.

• Wide Temperature Range: Ideal for use in turbines, compressors, and motors where high operational temperatures are common.

• Corrosion-Resistant: The PFA jacket resists corrosive chemicals and environmental degradation, making it suitable for offshore and refinery applications.

Product Applications

• Gas and Steam Turbines

• Industrial Compressors

• Rotating Pumps and Motors

• Oil and Gas Refineries

• Petrochemical Plants

• Power Generation Facilities

• Marine and Offshore Machinery

• Pulp and Paper Mills

This extension cable plays a vital role in continuous machinery condition monitoring by reliably linking proximity probes with their signal conditioning hardware.

Frequently Asked Questions (FAQ)

Q1: What does the part number 330195-02-12-05-00 mean?

A1: This part number refers to a 5-meter extension cable with specific connector configurations compatible with the Bently Nevada 3300 XL Proximity Transducer System.

Q2: Can this cable be used with older Bently Nevada systems?

A2: While it is optimized for the 3300 XL series, it can be adapted for use with older systems, but compatibility should be verified based on the connector types and electrical specs.

Q3: What is the jacket material, and why is it important?

A3: The jacket is made of PFA, which is resistant to high temperatures and corrosive environments, ensuring long cable life.

Q4: How is the cable shielded?

A4: It features a double-shielded design that protects against electromagnetic interference, which is crucial in industrial environments.

Q5: What is the maximum cable length I can use in this system?

A5: Bently Nevada systems typically support up to 9 meters of extension cable, but the specific system’s configuration should be checked.

Q6: Is this extension cable oil-resistant?

A6: Yes, it is designed for use in oil-rich environments like refineries and offshore platforms.

Q7: Can I bend this cable tightly during installation?

A7: While the cable is flexible, it is recommended to follow the manufacturer’s minimum bend radius to avoid signal degradation or damage.

Q8: Is it possible to repair a damaged cable?

A8: Damaged cables should not be field-repaired due to the shielding and connector integrity; replacement is recommended.

Q9: How do I identify connector orientation?

A9: The part number and ordering guide provide full details. “05” in the part number usually refers to straight connectors.

Q10: Does this cable require calibration?

A10: No, the cable itself doesn’t require calibration, but the complete system (probe + cable + proximitor) should be calibrated as a unit.
