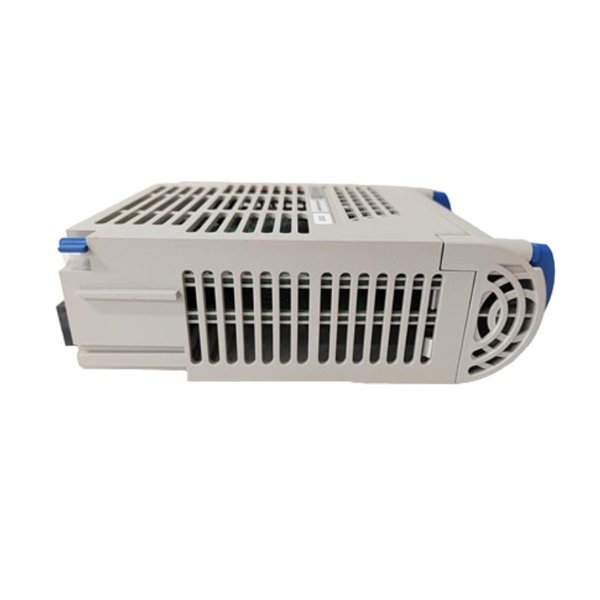

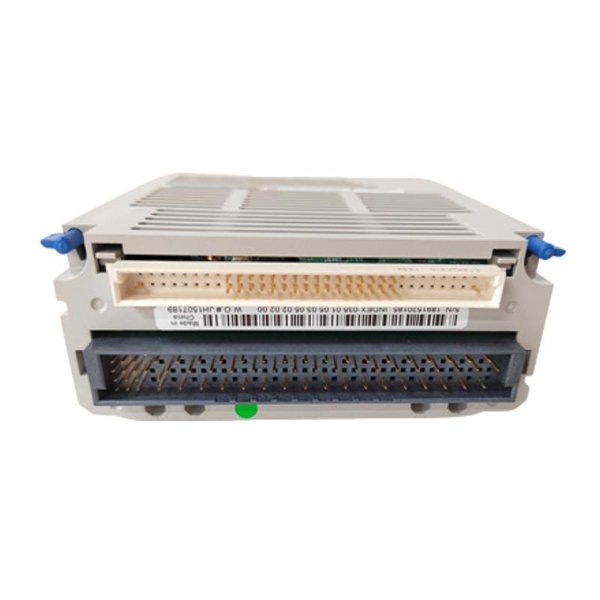

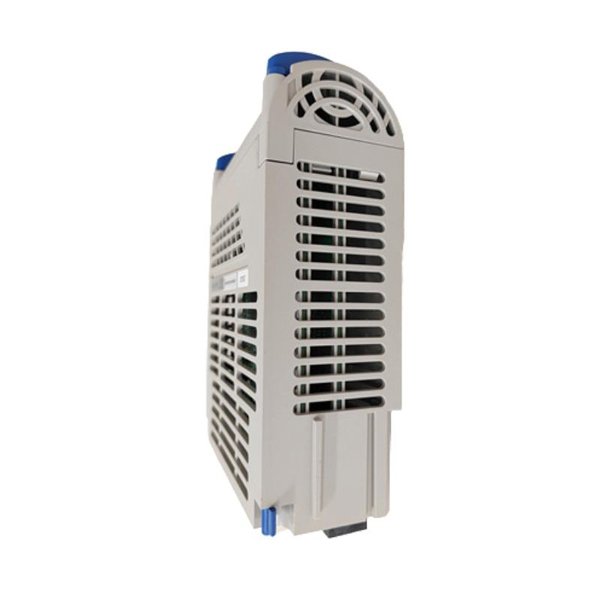

Ovation 5X00490G09 System Power Module

The Ovation 5X00490G09 System Power Module is a critical component of the Ovation Distributed Control System (DCS), designed to provide stable and reliable power distribution to controllers, I/O modules, and communication components within the system. This module ensures uninterrupted operation of control functions by maintaining a regulated power supply under demanding industrial environments.

It is engineered with built-in protection mechanisms, fault detection, and redundancy support to maximize uptime. The 5X00490G09 is widely adopted in industries where continuous power delivery is essential, such as power generation, water treatment, oil & gas, petrochemical, and process automation sectors.

Product Specifications

Applications

The Ovation 5X00490G09 System Power Module is widely deployed in automation environments that require uninterrupted and conditioned power supply for critical control equipment:

• Power Generation Plants – Provides stable power to turbine and boiler control modules.

• Water & Wastewater Treatment – Ensures consistent operation of controllers for pumps, valves, and chemical dosing systems.

• Petrochemical Industry – Maintains reliable power to critical process controllers and safety systems.

• Oil & Gas – Delivers regulated power for pipeline monitoring, refining processes, and compressor control.

• Industrial Manufacturing – Keeps automation controllers and I/O running during continuous operations.

• Renewable Energy Plants – Supports solar and wind plant controllers, maintaining grid stability and performance.

Advantages

The 5X00490G09 provides numerous technical and operational benefits:

• Stable Power Distribution – Ensures consistent voltage levels across all connected Ovation modules.

• High Efficiency – With ≥90% efficiency, it reduces power loss and operational costs.

• Fault Protection – Built-in over-voltage, over-current, and short-circuit protection enhance safety.

• Redundancy Ready – Can be paired with another power module for uninterrupted operation.

• Industrial Grade Reliability – Designed for harsh environments with wide operating temperature tolerance.

• Real-Time Diagnostics – Integrated LED and system feedback allow quick identification of power conditions.

• Easy Integration – Fully compatible with Ovation racks and system backplane for seamless installation.

Frequently Asked Questions (FAQ)

1. What is the input voltage requirement for the 5X00490G09 System Power Module?

   The module requires a nominal input of 24 VDC.

2. Which output voltages does the module provide?

   It provides regulated 5 VDC and ±12 VDC outputs for Ovation system components.

3. Can the module operate in redundant configurations?

   Yes, it supports dual-module redundancy to ensure uninterrupted power.

4. What type of fault protection is built into the 5X00490G09?

   It includes protection against over-voltage, over-current, and short-circuit conditions.

5. Does the power module provide diagnostic feedback to the system?

   Yes, it communicates status information via the Ovation system backplane.

6. How is cooling managed within the module?

   The module uses passive convection cooling with thermal monitoring for safe operation.

7. What is the maximum continuous power rating of this module?

   It is rated at 150 W continuous output power.

8. Are LED indicators available for quick troubleshooting?

   Yes, front-panel LEDs display operational and fault conditions in real time.

9. Is the module hot-swappable within the Ovation rack?

   Yes, it is designed to be hot-swappable, minimizing downtime during maintenance.

10. Can this module be integrated with legacy Ovation chassis?

    Yes, it maintains backward compatibility with earlier Ovation rack systems.
