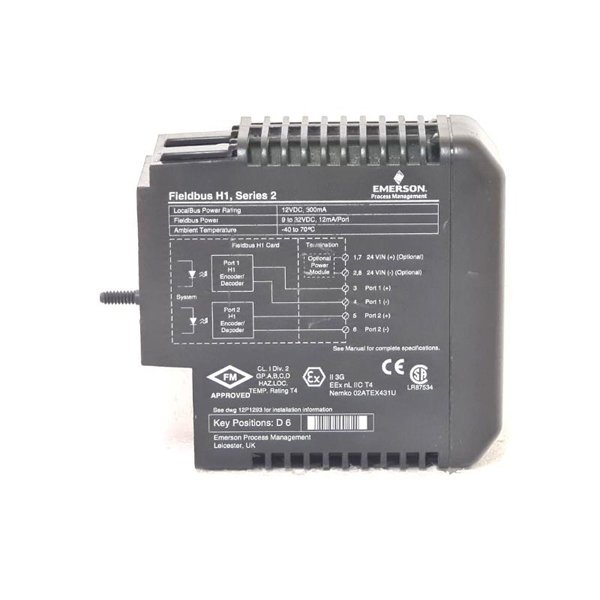

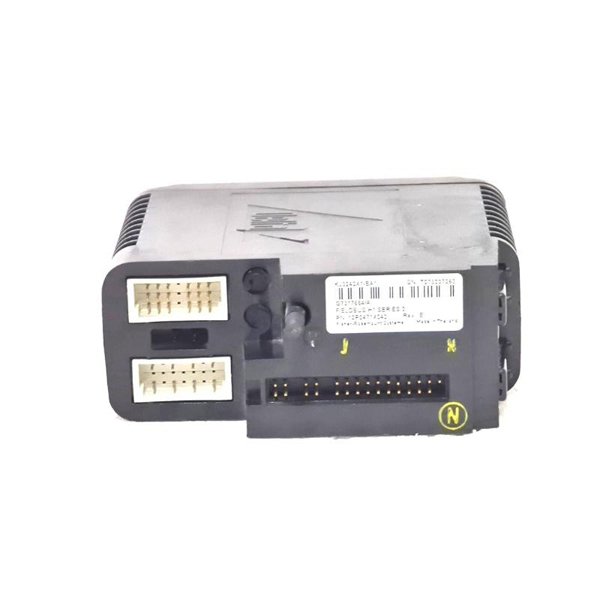

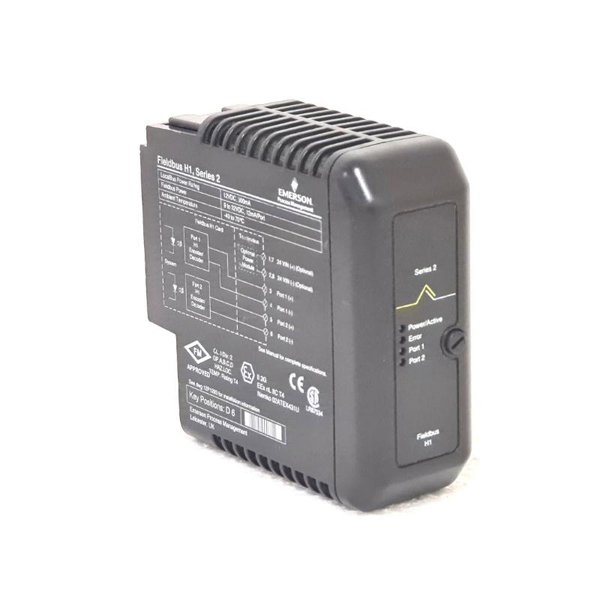

Emerson VE4017P0 KJ3242X1-BA1 Fieldbus H1 Card

Name: Emerson VE4017P0 KJ3242X1-BA1 Fieldbus H1 Card
Brand: Emerson
Availability: InStock

Manufacturer:Emerson

Product Number:VE4017P0 KJ3242X1-BA1

Product Type:Fieldbus H1 Card

Origin:USA

Dimensions:107 x 41 x 105 mm

Weight:0.3 kg

Views:42

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Contact Sales

Product Description

The Emerson VE4017P0 KJ3242X1-BA1 is a Fieldbus H1 interface card used within the DeltaV™ control system architecture. It enables robust digital communication with Fieldbus H1 devices, suitable for Zone 2 and Division 2 hazardous locations. It supports integration of smart field instruments, offering diagnostics and device management through a high-speed local bus.

Technical Specifications

Parameter	Specification
Model Number	KJ3242X1-BA1
Product Name	Fieldbus H1 Card
Power (Local Bus)	12 VDC at 300 mA
Power (Fieldbus)	9–32 VDC at 12 mA per port
Operating Temperature	-40°C to +70°C
Relative Humidity	5% to 95% Non-condensing
Shock Resistance	10g, ½ Sinewave, 11ms
Vibration Resistance	1mm P-P (2–13.2Hz), 0.7g (13.2–150Hz)
Airborne Contaminants	ISA-S71.04 Class G3
Enclosure Protection	IP20
Dimensions	107 x 41 x 105 mm
Weight	0.3 kg
Certifications	ATEX, IECEx, FM, Nemko

Applications

Fieldbus H1 segment integration in DeltaV control systems
Hazardous environment automation (Zone 2, Class I Div 2)
Process industries: oil & gas, petrochemical, chemical, power
Smart field device communication and diagnostics

Product Advantages

Direct integration with DeltaV systems
Certified for global hazardous area standards
Rugged design for harsh industrial conditions
Supports redundant installation
Easy installation with rotary keying
No calibration or maintenance required

Frequently Asked Questions (FAQ)

Q1: What does the VE4017P0 KJ3242X1-BA1 card do?

A1: It facilitates digital communication between DeltaV controllers and Foundation Fieldbus H1 field devices.

Q2: Is the card hot-swappable?

A2: No. The card must only be inserted or removed in non-hazardous areas and one at a time.

Q3: Can it operate in extreme temperatures?

A3: Yes, it supports a temperature range of -40°C to +70°C.

Q4: What safety certifications does it carry?

A4: It has ATEX, IECEx, FM, and Nemko certifications for use in hazardous zones.

Q5: What is the IP rating of the module?

A5: The module has an IP20 enclosure rating.

Q6: Is any user calibration needed?

A6: No. The card is factory calibrated and requires no adjustment.

Q7: What is the maximum humidity level it can withstand?

A7: It can handle up to 95% relative humidity, non-condensing.

Q8: How is the terminal block aligned?

A8: A rotary keying system ensures correct alignment with the card.

Q9: Does it support redundant fieldbus segments?

A9: Yes, redundancy is supported as part of the DeltaV architecture.

Q10: Is this card compatible with non-DeltaV systems?

A10: No, it is designed specifically for DeltaV systems.
