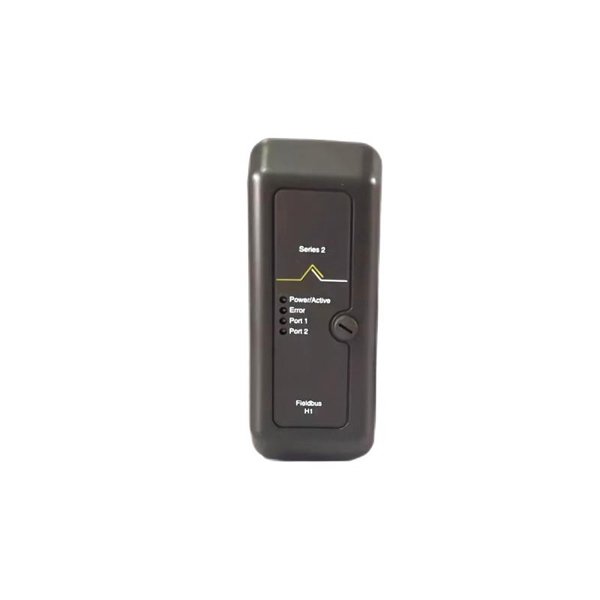

The Emerson KJ3242X1-BA1 Fieldbus H1 Card is a specialized communication interface module designed for use in Emerson’s DeltaV™ distributed control system (DCS). This card facilitates seamless digital communication over the FOUNDATION™ Fieldbus H1 protocol, which is widely adopted in modern process automation. It is a crucial component for achieving precise process control, real-time data monitoring, and device-level diagnostics in industrial environments.

The KJ3242X1-BA1 supports two H1 channels, allowing it to communicate with multiple Fieldbus-compatible field devices. Its robust design and integration within the DeltaV system make it ideal for demanding applications in industries such as oil & gas, petrochemicals, pharmaceuticals, and power generation. This card helps reduce wiring complexity, lower installation costs, and enhance diagnostic capabilities through digital communication.

Product Specifications

Applications

The Emerson KJ3242X1-BA1 Fieldbus H1 Card is tailored for use in process industries that require advanced, reliable, and real-time digital field communication. Key applications include:

• Oil & Gas – For upstream and downstream automation, including pipeline, refining, and offshore platforms.

• Chemical & Petrochemical Plants – Provides digital communication with field instruments for process monitoring and control.

• Power Generation – Integrates seamlessly with plant-wide DCS to manage turbine, boiler, and balance-of-plant instrumentation.

• Pharmaceuticals – Ensures process precision and regulatory compliance with digital diagnostics and parameter tracking.

• Food & Beverage – Enables hygienic and efficient automation for batch and continuous processes.

Product Advantages

• Dual H1 Channels: Supports two Fieldbus segments from a single card, improving cost-efficiency and system flexibility.

• Reduced Wiring: Digital communication minimizes point-to-point wiring, lowering installation and maintenance costs.

• Advanced Diagnostics: Enables device-level diagnostics and predictive maintenance, reducing unplanned downtime.

• System Integration: Fully integrated with Emerson’s DeltaV DCS for streamlined configuration and engineering.

• High Reliability: Designed for harsh industrial environments, with robust isolation and extended temperature operation.

• Scalability: Easily expandable by adding more H1 cards, suitable for growing system requirements.

• Standards-Compliant: Fully compliant with FOUNDATION™ Fieldbus standards, ensuring vendor interoperability.

• Hot-Swappable: Can be replaced without system shutdown, reducing impact on operations.

• Global Certifications: Certified for use in hazardous locations with ATEX, FM, and IECEx approvals.

• Enhanced Control: Improves process control accuracy by utilizing real-time data from smart devices.

FAQ

1. What is the primary function of the KJ3242X1-BA1?

   It enables communication with Foundation Fieldbus-compatible field devices using digital signals in the DeltaV system.

2. How many field devices can be connected to each H1 channel?

   Each channel supports up to 16 devices, depending on power and segment constraints.

3. Is the card compatible with older DeltaV versions?

   Yes, it is backward compatible with most DeltaV versions, but firmware updates may be required.

4. Can the card be hot-swapped during operation?

   Yes, the card supports hot-swapping without system disruption.

5. What type of isolation does it offer?

   It provides galvanic isolation between Fieldbus and the system to prevent signal interference.

6. How does this card improve diagnostics?

   It allows access to device diagnostics, signal quality, and predictive maintenance data via DeltaV.

7. Does it require an external power supply?

   No, it is powered by the DeltaV I/O subsystem.

8. Is the card hazardous-area certified?

   Yes, it meets ATEX, FM, CSA, and IECEx standards for hazardous environments.

9. Can I use third-party Fieldbus devices with it?

   Yes, as long as the devices comply with FOUNDATION Fieldbus specifications.

10. What kind of data can be accessed from the connected field devices?

    Process values, diagnostics, configuration parameters, and event/alarm information.
