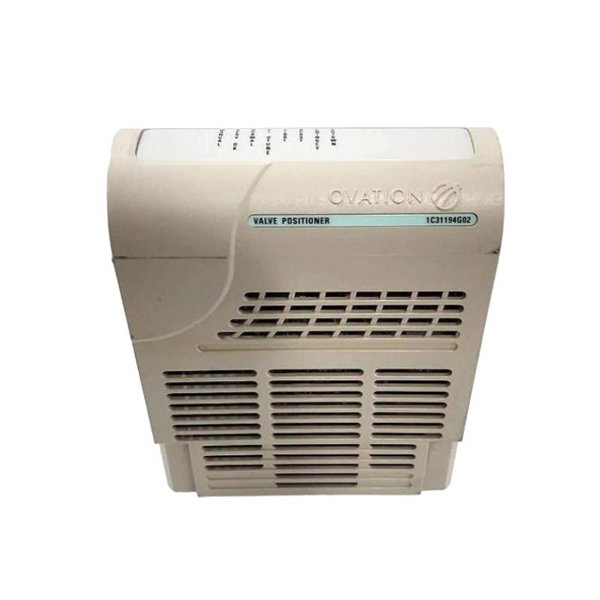

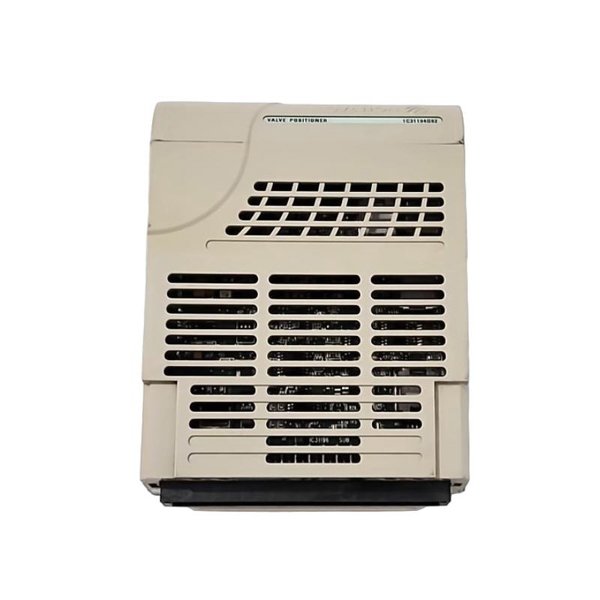

Ovation 1C31194G02 Valve Positioner Module

The Ovation 1C31194G02 Valve Positioner Module is a high-precision interface module engineered by Emerson for use within the Ovation Distributed Control System (DCS). This module plays a critical role in translating control signals into mechanical valve movements by interfacing with smart or analog valve actuators. It enables closed-loop feedback, ensuring accurate valve positioning, responsiveness, and system reliability in process automation environments.

Designed for use in power generation, oil and gas, water treatment, and other industrial sectors, the 1C31194G02 module receives analog or digital control signals from the Ovation DCS and sends corresponding output signals to valve actuators. Simultaneously, it receives position feedback to maintain precise control and enhance system diagnostics. With robust design, EMI protection, and fail-safe features, it ensures dependable operation in mission-critical applications.

Product Specifications

Product Applications

The 1C31194G02 module is essential in process industries where accurate valve actuation is critical to flow regulation, pressure control, or process consistency. Common applications include:

• Power Generation Plants – Steam turbine bypass valves, condenser control valves, and feedwater valves.

• Oil & Gas Facilities – Regulation of gas flow, pressure relief systems, and compressor inlet valves.

• Chemical Processing Plants – Accurate dosing, mixing, and temperature regulation via modulating valves.

• Water & Wastewater Treatment – Controls flow to filters, pumps, and sedimentation systems.

• Pharmaceutical Manufacturing – Regulates valve positions in sterilization and clean-in-place systems.

• Pulp & Paper Industries – Steam and water control in processing and drying sections.

Product Advantages

• High Precision Control – Enables accurate valve movement with real-time feedback for critical process loops.

• Integrated Diagnostics – Offers fault detection, signal status monitoring, and operational health indication.

• Robust Signal Conditioning – Ensures noise-free communication even in EMI-intensive environments.

• Wide Compatibility – Interfaces with both analog and smart actuators including HART-enabled models.

• Fail-Safe Operation – Retains last command or moves valve to predefined position on signal loss.

• Ovation System Ready – Seamless integration into Ovation DCS without external converters.

• Compact and Modular – Space-efficient rack-mountable design simplifies panel layout.

• Long Operational Life – Industrial-grade components ensure performance for over a decade with minimal maintenance.

FAQs

1. What is the primary function of the 1C31194G02 module?

It controls and monitors valve actuators by converting control signals from the Ovation DCS and returning position feedback.

2. Does this module support closed-loop control?

Yes, it supports closed-loop valve control using analog or digital feedback.

3. What types of actuators are compatible with this module?

Both analog (4–20 mA) and intelligent/smart valve actuators (e.g., HART-enabled) are supported.

4. Is this module used in safety instrumented systems (SIS)?

It is typically used in standard control loops. For SIS applications, redundant or certified SIL-rated modules may be required.

5. Can the module detect a feedback signal loss?

Yes, it has built-in diagnostics that alert the system in case of feedback failure.

6. What power supply is needed for operation?

It draws power directly from the Ovation rack backplane; no external power is required.

7. Is there signal isolation between channels?

Yes, it includes optical and galvanic isolation to prevent ground loops and interference.

8. Does the module require regular maintenance?

Minimal maintenance is required due to its solid-state design and integrated self-diagnostics.

9. What type of output does the module provide?

It provides a 4–20 mA signal or digital fieldbus output depending on configuration.

10. Can it be used in outdoor environments?

The module itself is not IP-rated for outdoor use unless enclosed in a properly rated control cabinet.
