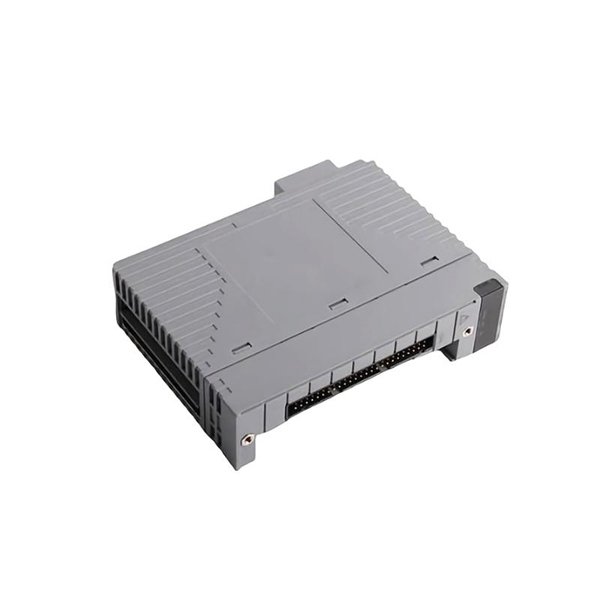

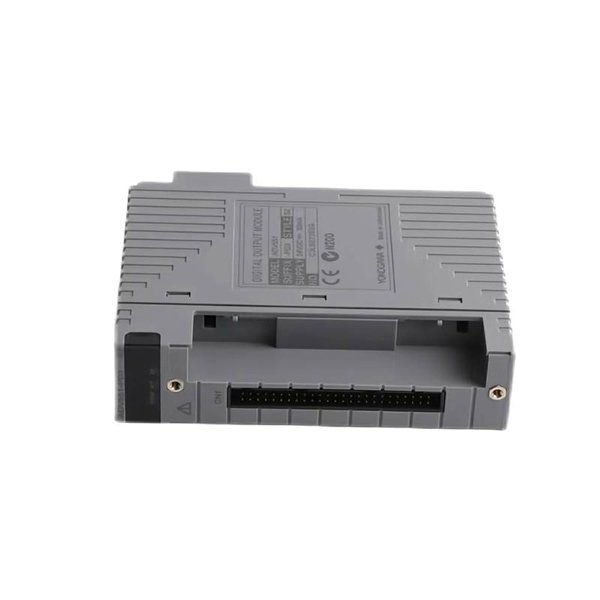

Yokogawa ADV551-P00/D5A00 Digital Output Module

The Yokogawa ADV551-P00/D5A00 Digital Output Module is a reliable and versatile component used in advanced control systems to manage and output digital signals to external devices. It is specifically designed for high-performance applications requiring precise control of industrial processes. As part of Yokogawa’s advanced automation solutions, this module offers exceptional durability, high-speed communication, and compatibility with a wide range of industrial equipment.

With its sophisticated design, the ADV551-P00/D5A00 module is ideal for controlling discrete devices like relays, solenoids, and other automation equipment that require direct on/off signals. It supports a variety of control architectures and is essential for maintaining smooth and efficient operations in diverse industrial environments.

Product Parameters

The following table provides an overview of the key specifications of the Yokogawa ADV551-P00/D5A00 Digital Output Module:

Product Applications

The Yokogawa ADV551-P00/D5A00 Digital Output Module is widely used in various industries, such as:

1. Process Control Systems: It is crucial in controlling processes where digital signals are necessary to activate or deactivate devices like actuators, switches, and alarms.

2. Factory Automation: The module provides reliable output for controlling equipment like motors, pumps, or conveyors.

3. Energy Management Systems: It enables the precise control of energy-consuming devices in industrial facilities, ensuring efficient energy usage.

4. Building Management Systems (BMS): It can be used for controlling lighting, HVAC, and security systems.

5. Manufacturing and Assembly Lines: The module is used in automated assembly systems for controlling robotic arms, sensors, and other equipment.

Product Advantages

1. High Reliability: The ADV551-P00/D5A00 module is designed to meet stringent industrial standards, ensuring stable operation over long periods even in harsh environments.

2. Fast Response Time: With a response time of just 20ms, it can provide real-time control of critical equipment, reducing downtime and increasing efficiency.

3. Compact and Flexible Design: Its compact size (107.5 × 130 × 32.8 mm) allows it to fit into tight spaces, while its DIN rail mounting system makes installation easy.

4. Wide Temperature Range: The module can operate in temperatures ranging from -20°C to 60°C, making it suitable for diverse industrial environments.

5. Energy Efficient: The module is designed to reduce energy consumption, helping businesses optimize operational costs.

6. Enhanced Safety: The digital outputs ensure precise control and safe operation of connected equipment, which is vital for critical systems.

7. Easy Integration: The module is compatible with Yokogawa’s extensive range of control systems, simplifying system integration and expansion.

8. Durability: Built with industrial-grade materials, it is capable of withstanding vibrations, shocks, and electrical interference, ensuring long-lasting performance.

Frequently Asked Questions (FAQ)

1. What is the primary function of the ADV551-P00/D5A00 module?

   • The ADV551-P00/D5A00 module is used to output digital signals to control various industrial devices, such as relays, solenoids, and actuators.

2. What is the operating voltage of this module?

   • The module operates at 24V DC.

3. How many digital output points are available?

   • The module has 16 digital output points.

4. What is the output current per point?

   • The output current per point is 0.5A.

5. What is the response time of the module?

   • The module has a fast response time of 20ms.

6. Can this module be used in extreme temperatures?

   • Yes, it can operate in temperatures ranging from -20°C to 60°C.

7. How is the module mounted?

   • It is designed for DIN rail mounting, which makes installation and maintenance easier.

8. What is the communication protocol used by the ADV551-P00/D5A00?

   • The module uses a standard communication protocol via the system bus.

9. What is the weight of the module?

   • The module weighs 0.2 kg.

10. Is this module compatible with Yokogawa’s other automation systems?

    • Yes, it is fully compatible with Yokogawa’s advanced control systems, making it easy to integrate into existing setups.
