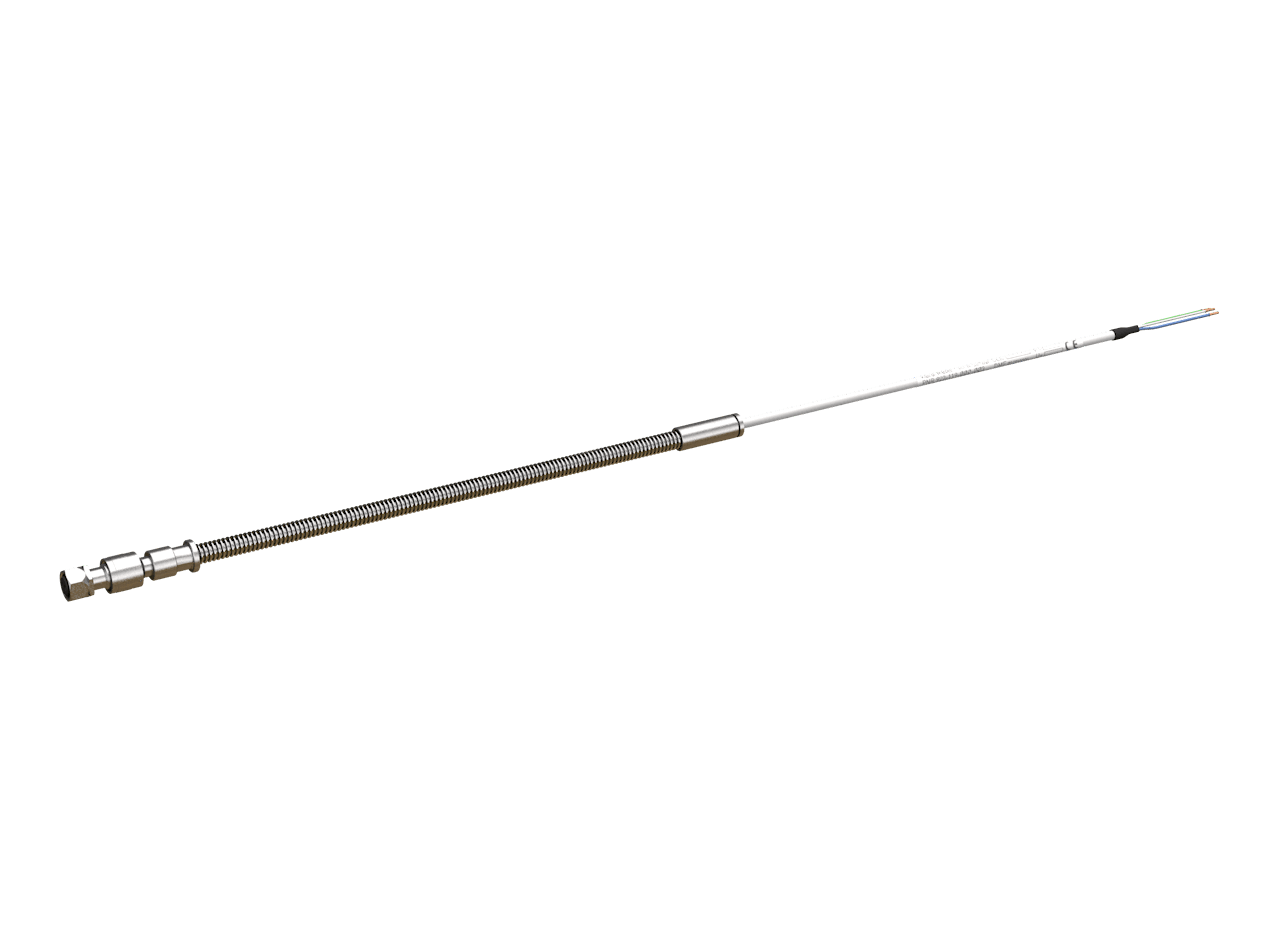

Meggitt EC119 922-119-000-003 Cable Assembly
Item Number: EC119 922-119-000-003
Brand:Meggitt
Lead Time: In stock
Description: Cable Assembly
Payment: T/T
Product Description
EC119 922-119-000-003 is a cable assembly designed for the CA280 vibration sensor (accelerometer using an external signal conditioner), CP21x dynamic pressure sensor, and EW140 ice detection sensor. The EC119 has a higher degree of protection (with a flexible leak-proof hose) and double shielding (inner and outer shield) compared to the similar EC222 cable assembly.
Function & Features
- Targeted design: EC119 922-119-000-003 is designed for CA280 vibration system, CP21x dynamic pressure system and EW140 ice detection system, and can connect related sensors.
- Cable material: EC119 922-119-000-003 uses K205A low-noise cable with PTFE sheath (4.2 mm diameter).
- Protective structure: EC119 922-119-000-003 is equipped with flexible leak-proof protective hose (8.7 mm diameter) and junction box adapter (11 mm diameter).
- Special connection: EC119 922-119-000-003 adopts the design of combining CG505 type threaded connector with flying wire terminal.
Specifications
|
Component |
Specification |
|
Model |
EC119 922-119-000-003 |
|
Measurement System |
EW Ice Detection |
|
Sensor |
EW140 |
|
Signal Conditioner |
DIC413 |
|
Length Options |
From 19.7 inches (increments of 19.7 in) / From 500 mm (increments of 500 mm) |
|
Protection |
Optional flexible leak-tight hose |
FAQ
Q: What is the brand?
A:Spare
Q: What is the type?
A:Cable Assembly
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
