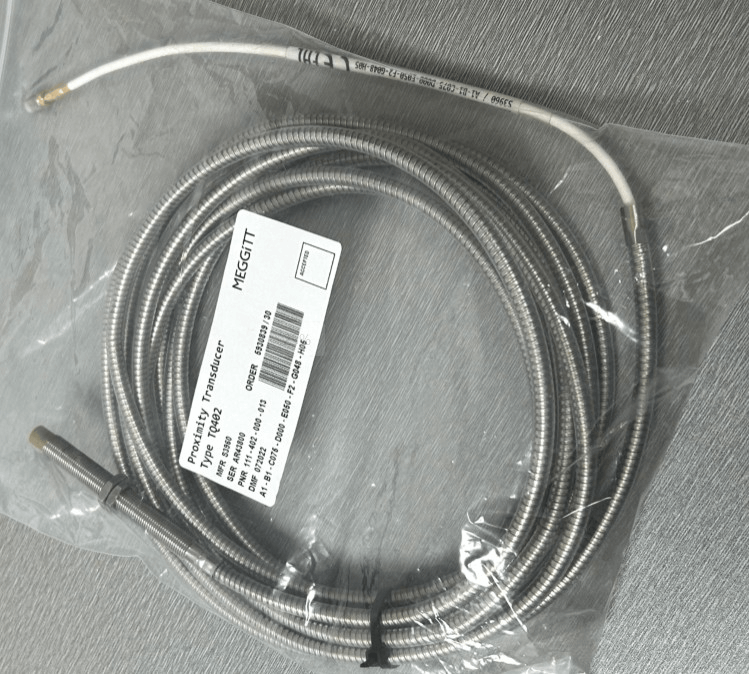

Meggitt TQ402 111-402-000-013 A1-B1-C042-D000-E050-F2-G050-H05 Proximity Sensor
Item Number: TQ402 111-402-000-013 A1-B1-C042-D000-E050-F2-G050-H05
Brand: Meggitt
Lead Time: In stock
Description: Proximity Sensor
Payment: T/T
Product Description
Proximity Sensor: TQ402 111-402-000-013 A1-B1-C042-D000-E050-F2-G050-H05is a proximity sensor based on non-contact sensing technology. The proximity measurement system based on TQ402 is mainly composed of TQ402/TQ412 non-contact sensor and IQS900 signal conditioner.It can output a voltage or current proportional to the distance between the sensor tip and the target (such as a machine shaft), which is suitable for measuring the relative vibration and axial position of the rotating mechanical shaft.
Features & Functions
- Coil Design: The TQ402 111-402-000-013 A1-B1-C042-D000-E050-F2-G050-H05 sensor tip has a built-in coil made of Torlon® (polyamide-imide).
- Construction: The TQ402 111-402-000-013 sensor has a stainless steel housing and is available in metric or imperial thread options.
- Cable: TQ402 111-402-000-013 Integrated coaxial cable with self-locking micro coaxial connector to support extension cables (such as EA402).
- Signal Provision: The TQ402 111-402-000-013 features a built-in high-frequency modulator/demodulator that provides a drive signal to the sensor, generating an electromagnetic field for gap measurement.
Specifications
|
Item |
Details |
| Series | TQ402 111-402-000-013 |
| Ordering Number | A1-B1-C042-D000-E050-F2-G050-H05 |
|
Frequency response |
DC to 20 kHz (-3 dB) |
|
Measurement range |
2 or 4 mm |
|
Temperature range-Transducer (operating, drift <5%) |
-40 to +180 °C |
|
Temperature range-Transducer and cable (short-term survival, drift >5%) |
+180 to +220 °C |
|
Temperature range-Transducer and cable (if used in an Ex Zone) |
-40 to +195 °C |
|
Temperature range-Cable, connector and optional (if used in an Ex Zone) |
-40 to +200 °C |
FAQ
Q: What is the brand?
A: Others
Q: What is the type?
A:Proximity Sensor
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
Q: Why choose us?
A: We are the supplier for industrial automation spare parts,We speciaized in PLC DCS and TSl system modules and spare parts for 10 years, With our professional expertise and extensive experience, we are well-equipped to meet your requirements.
