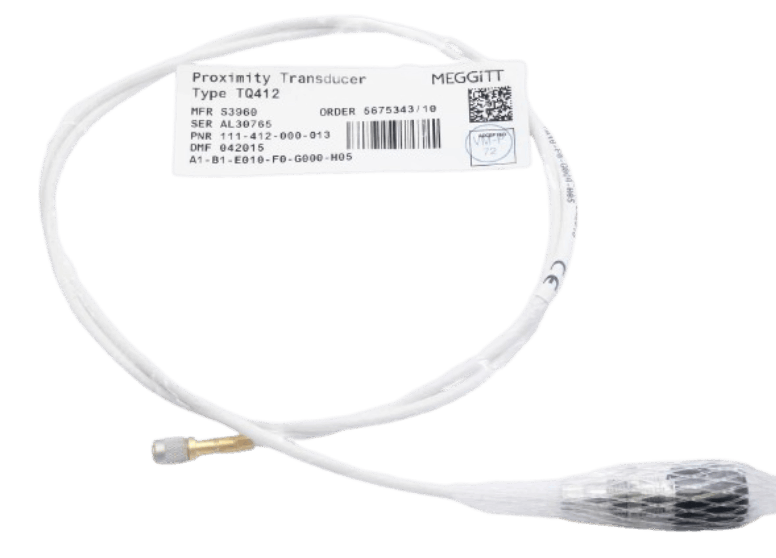

TQ412 111-412-000-013 A1-B1-E010-F0-G000-H05 Proximity Transducer
Item Number: TQ412 111-412-000-013 A1-B1-E010-F0-G000-H05
Brand: Meggitt
Lead Time: In stock
Description:Proximity transducer
Payment: T/T
Product Description
TQ412 111-412-000-013 A1-B1-E010-F0-G000-H05 is a non-contact proximity sensor. It is a calibrated proximity measurement system based on TQ402/TQ412 non-contact sensor and IQS900 signal conditioner. It is used to measure the distance between the sensor probe and the metal target (such as mechanical shaft) and output a voltage or current signal proportional to the distance. The system components are interchangeable and suitable for relative vibration and axial position monitoring of rotating machinery (such as steam turbines, gas turbines, compressors, etc.).
Function & Features

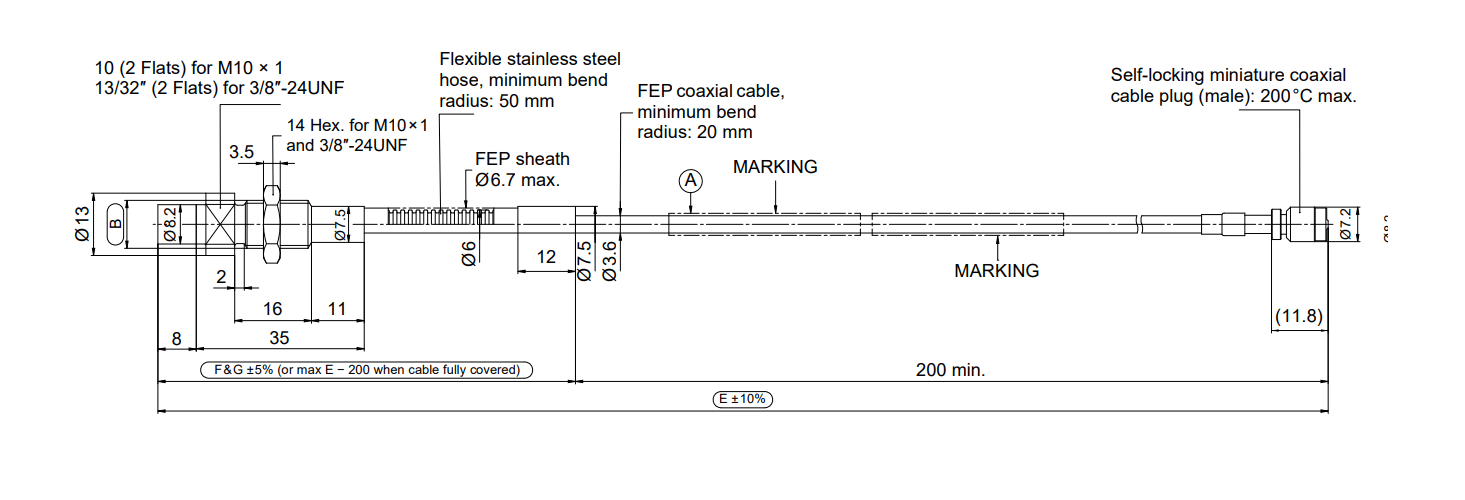

- The probe has an integrated coil, molded with Torlon® (polyamide-imide), and a stainless steel housing.
- The TQ412 is designed for reverse mounting applications and supports metric or imperial thread mounting.
- The TQ412 comes standard with an internal coaxial cable, terminated in a self-locking micro coaxial connector, and can be customized with different lengths of internal cable or extension cable.
- The target material of the TQ412 must be metal, and the gap is detected by electromagnetic induction.
Specifications
|
Items |
Details |
|
System Cable Lengths |
1 m, 5 m, 10 m |
|
Design |
Temperature-compensated |
|
Output Options |
Voltage or current output |
|
Output Protection |
Short-circuit protected |
|
Frequency Response |
DC to 20 kHz (–3 dB) |
|
Measurement Range |
2 mm or 4 mm (selectable) |
|
Operating Temperature Range |
–40 °C to +180 °C |
FAQs
Q: What is the brand?
A: Others
Q: What is the type?
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
Q: Why choose us?
A: We are the supplier for industrial automation spare parts,We speciaized in PLC DCS and TSl system modules and spare parts for 10 years, With our professional expertise and extensive experience, we are well-equipped to meet your requirements.
