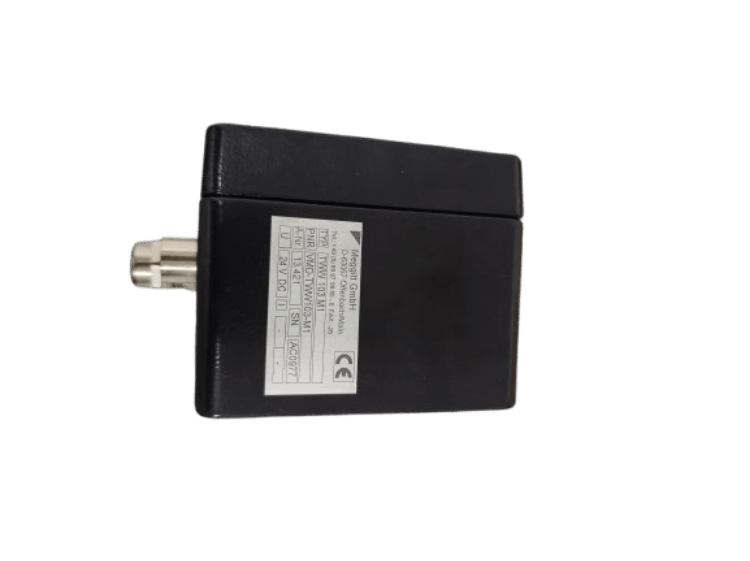

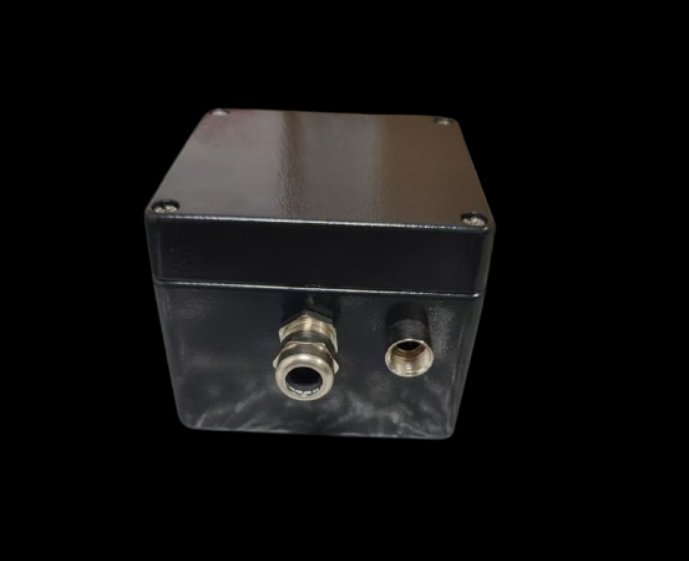

Meggitt VMD-TWW103-M1 Transmitter
Product Description
The VMD-TWW103-M1 is a single-channel vibration and position measurement transmitter. It is typically paired with the WW018 eddy-current proximity sensor for non-contact measurement of the relative position of a target object, forming a complete non-contact displacement (relative position) measurement system.
This displacement measurement system, consisting of the WW018 proximity sensor and the TWW103-M1 transmitter, has a static measuring range of 10 mm. The TWW103-M1 is available in standard and Ex versions. The standard version is for use in standard (non-hazardous) areas, while the Ex version is for use in hazardous areas.
Function & Features
- The VMD-TWW103-M1 focuses on single-channel vibration and position measurement.
- The VMD-TWW103-M1, when used with the WW 018 proximity sensor, enables non-contact measurement of the relative position of a target object, eliminating the need for physical contact.
- When used with the WW 018 proximity sensor, the VMD-TWW103-M1 has a static measurement range of 10 mm.
- Sensors of the same type and cable length are interchangeable, system length must be specified when ordering.
- The VMD-TWW103-M1 can be used in shaft relative position measurement chains for machinery protection and/or condition monitoring.
Specifications
|
Parameter |
Description |
|
Model |
VMD-TWW103-M1 |
|
Linearity deviation |
≤2%. Note: Measured with a reference WW 018 - R proximity sensor. |
|
Housing material |
Aluminum (Al - Si12) |
|
Color |
Black (RAL 9011) or silver/gray (RAL 7001) |
|
Mounting |
Four M4 × 30 fixing screws. Note: Wall mounting only. |
|
Cover screws |
Four cover screws. Mounting torque: 1.5 to 2.0 N•m. |
|
Dimensions |
100 × 100 × 80. See Drawings, Mechanical drawings on page 5 |
|
Weight |
800 g approx. |
FAQ
Q: What is the brand?
A: Spares
Q: What is the type?
A:Transmitter
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
