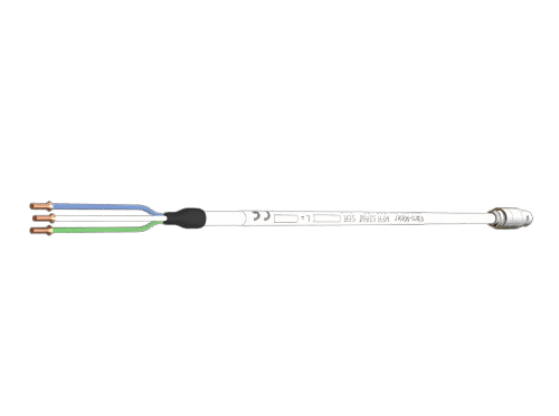

EC153 922-153-000-202 Cable Assembly
Item Number: EC153 922-153-000-202
Brand:Meggitt
Lead Time: In stock
Description: Cable Assembly
Payment: T/T
Product Description
The EC153 922-153-000-202 cable assembly is a connection cable for vibration sensors. It provides signal transmission for CA901, CP103, CP21x series vibration sensors (accelerometers with external signal conditioners), especially for use in high temperature and hazardous areas.
Function & Features
- The EC153 922-153-000-202 is compatible with the following vibration sensors: the CA901 (industrial-grade accelerometer), the CP103 (high-temperature accelerometer), and the CP21x series (accelerometers requiring an external signal conditioner).
- Signal Type: The EC153 922-153-000-202 supports shielded 2-wire vibration signal transmission.
- Specialized Cable: The EC153 922-153-000-202 uses the K205A specialized cable with a PTFE (polytetrafluoroethylene) outer sheath and a 4.2 mm diameter.
- Connector Type: The EC153 922-153-000-202 uses a VM LEMO 0 series push-pull connector (plug end) and flying leads (sensor end).
Specifications
|
Parameter |
Details |
|
Model |
EC153 922-153-000-202 |
|
Weight |
0.4Kg |
|
Cable Length |
Optional according to model (e.g., 1m, 5m, 10m, etc.) |
|
Bending Radius |
≥ 8 × Cable Diameter |
|
Tensile Strength |
≥ 50 N |
|
Conductor Resistance |
≤ 0.1 Ω/m |
FAQ
Q: What is the brand?
A: Spare
Q: What is the type?
A: Cable Assembly
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
