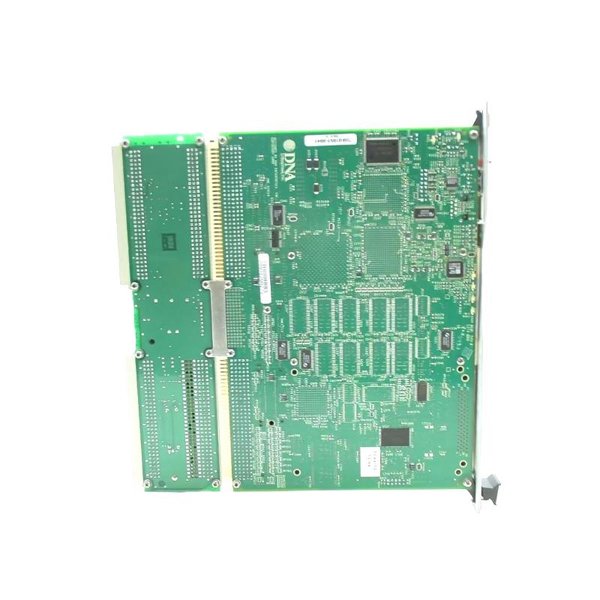

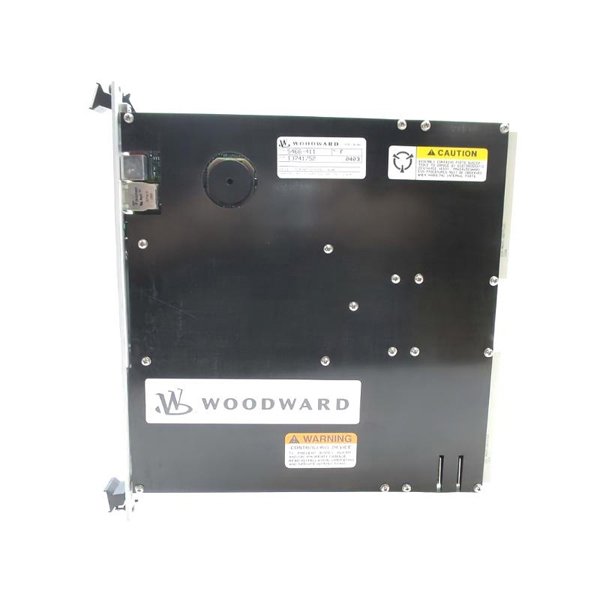

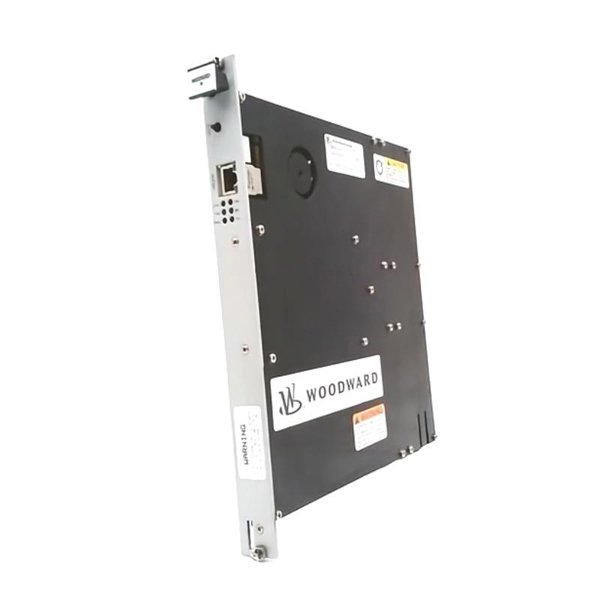

Woodward 5466-411 Ethernet Module

The Woodward 5466-411 Ethernet Module is a cutting-edge communication interface designed to integrate Woodward’s control systems with Ethernet networks. This module provides a robust, high-performance solution for enabling seamless communication between controllers, devices, and supervisory control systems within industrial automation, power generation, and process control applications. The 5466-411 Ethernet Module allows for fast data transfer, secure remote access, and efficient monitoring of connected systems in real-time.

This module supports standard Ethernet protocols, including TCP/IP, enabling easy integration with existing infrastructure. The 5466-411 is ideal for industries where reliable communication between various components is crucial, such as in power plants, industrial automation, and energy management systems. With its wide compatibility, fast data rates, and secure connectivity, the Woodward 5466-411 Ethernet Module is an indispensable part of modern control systems that require high reliability and fast communication.

Product Specifications

Product Applications

The Woodward 5466-411 Ethernet Module is used in various industrial sectors that require reliable and fast communication across a distributed network. Some common applications include:

• Power Generation: Provides fast, secure communication between turbines, generators, and control systems, allowing for real-time data transfer and monitoring.

• Industrial Automation: Facilitates seamless communication between programmable logic controllers (PLCs), remote I/O devices, and other automated systems.

• Energy Management: Used in energy management systems to connect and monitor devices such as energy meters, controllers, and other measurement systems.

• Process Control: Integrates with control systems to provide remote access and system monitoring for critical processes in industries like chemical processing, water treatment, and oil & gas.

• Building Automation: Used to monitor and control various building systems, such as HVAC, lighting, and security, through Ethernet-based communication.

• Remote Monitoring: Enables secure remote access to control systems, allowing operators to monitor performance and make adjustments from anywhere in the world.

Product Advantages

1. High-Speed Communication: The 5466-411 Ethernet Module supports 10/100/1000 Mbps Ethernet communication, allowing for fast and efficient data transfer.

2. Wide Compatibility: It is compatible with Woodward’s entire range of controllers and devices, ensuring seamless integration into existing systems.

3. Remote Access and Control: The Ethernet capability allows for remote monitoring and control of connected devices, improving operational efficiency and reducing downtime.

4. Flexible Mounting: With its DIN rail mounting option, the module can be easily installed in control cabinets, offering flexibility in system setup.

5. Broad Operating Temperature Range: The module operates in temperatures ranging from -40°C to +70°C, making it suitable for use in extreme environmental conditions.

6. Built-in Protection: Includes protection against over-voltage and over-current conditions, ensuring the module remains operational in harsh conditions.

7. Compact Design: With dimensions of 95 x 105 x 100 mm, the module is compact, making it ideal for space-constrained installations.

8. Secure Communication: The use of TCP/IP ensures secure communication over Ethernet, making it a reliable choice for critical applications.

FAQ

1. What is the primary function of the Woodward 5466-411 Ethernet Module?

   The module enables communication between Woodward control systems and Ethernet-based networks, providing real-time data transfer and monitoring.

2. What Ethernet speed does the module support?

   The 5466-411 supports Ethernet speeds of 10/100/1000 Mbps (Gigabit).

3. What communication protocol does the module use?

   It uses the TCP/IP communication protocol for fast and secure communication.

4. What is the power supply requirement for the Woodward 5466-411?

   The module operates with a 24 V DC power supply.

5. Can the 5466-411 module be used in extreme environments?

   Yes, it has an operating temperature range from -40°C to +70°C, making it suitable for use in extreme environmental conditions.

6. How is the module mounted?

   The 5466-411 module can be easily mounted on a DIN rail, allowing for quick and secure installation in control cabinets.

7. What industries benefit from using the 5466-411 Ethernet Module?

   Industries such as power generation, industrial automation, energy management, and process control can benefit from the use of this module.

8. Does the module provide protection against electrical faults?

   Yes, it includes protection against over-voltage and over-current, ensuring safe and reliable operation.

9. What is the weight of the Woodward 5466-411 Ethernet Module?

   The module weighs 0.635 kg.

10. Is the Woodward 5466-411 module compatible with other Ethernet-based systems?

    The module is specifically designed for Woodward control systems and is compatible with Woodward controllers and devices. It may not be compatible with other brands’ systems without additional configuration.
