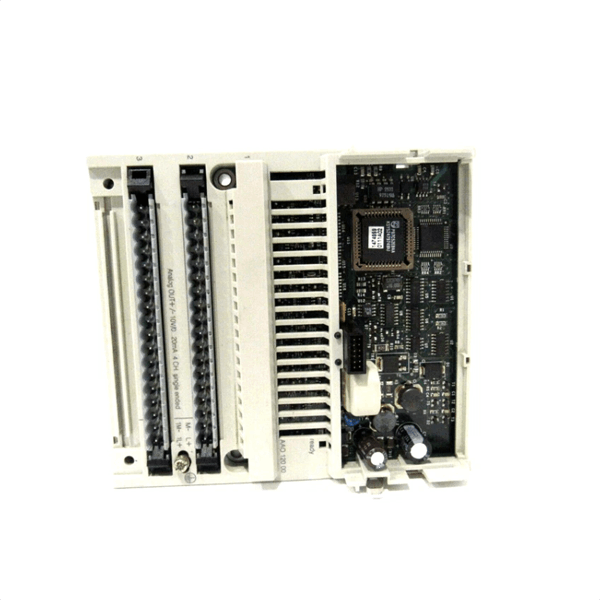

Schneider 170AAO12000 Distributed analog output Modules

It integrates seamlessly into distributed I/O architectures, and thanks to its compact footprint, it’s suitable for installation in space‑constrained control cabinets. With a focus on robustness, accuracy, and ease of use, the 170AAO12000 helps ensure high performance in demanding industrial applications.

Product Parameters

Product Applications

The Schneider 170AAO12000 is widely used in applications where reliable and accurate analog output is essential. Typical applications include:

• Industrial process control for pumps, valves, and actuators

• HVAC (heating, ventilation, and air conditioning) systems to manage temperature and pressure

• Water and wastewater treatment facilities for precise dosing control

• Energy management systems to modulate equipment loads

• Food and beverage production lines for temperature and pressure regulation

• Factory automation for proportional control of drives and other devices

By supporting both current and voltage outputs, this module easily adapts to a broad range of devices and process requirements.

Product Advantages

• Flexible configuration: Supports both voltage and current outputs, making it suitable for diverse industrial needs.

• High precision: With 12‑bit resolution and ±0.5% accuracy, ensures reliable process control.

• Compact design: Small footprint saves space in control panels and distributed I/O stations.

• Proven durability: Built to operate reliably in harsh industrial environments and over wide temperature ranges.

• Easy integration: Seamless compatibility with Modicon Momentum CPUs and bases; plug‑and‑play installation reduces setup time.

• Global certifications: Meets CE, UL, and CSA standards, ensuring compliance for international projects.

FAQ

Q1: What type of output signals does the 170AAO12000 support?

A1: It supports both voltage outputs (0–10 V) and current outputs (4–20 mA), configurable per channel.

Q2: How many analog output channels are available?

A2: The module provides 2 independent analog output channels.

Q3: What is the resolution of the output?

A3: It has a 12‑bit resolution, allowing precise control of analog devices.

Q4: Can the module be used in high‑temperature environments?

A4: Yes, it is rated for operation between 0 °C and +60 °C.

Q5: Is it compatible with other Schneider Momentum modules?

A5: Absolutely. It integrates smoothly with other I/O modules and the Momentum CPU modules.

Q6: What is the typical use case for this module?

A6: Controlling variable speed drives, valves, dampers, and other process equipment that require analog signals.

Q7: How is the module mounted?

A7: It can be mounted directly on a DIN rail or panel.

Q8: Does it have built‑in protection?

A8: Yes, it includes short‑circuit and overload protection to enhance reliability.

Q9: What certifications does it carry?

A9: CE, UL, CSA, and RoHS, making it suitable for global markets.

Q10: How much does the module weigh?

A10: 0.215 kg, which keeps it lightweight and easy to handle.
