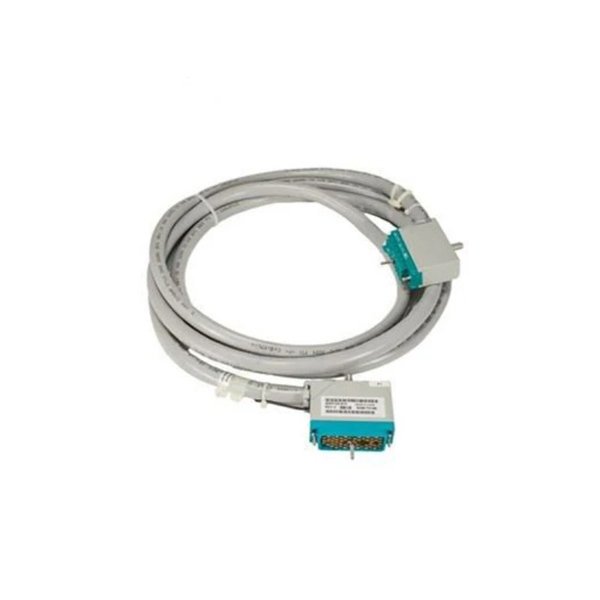

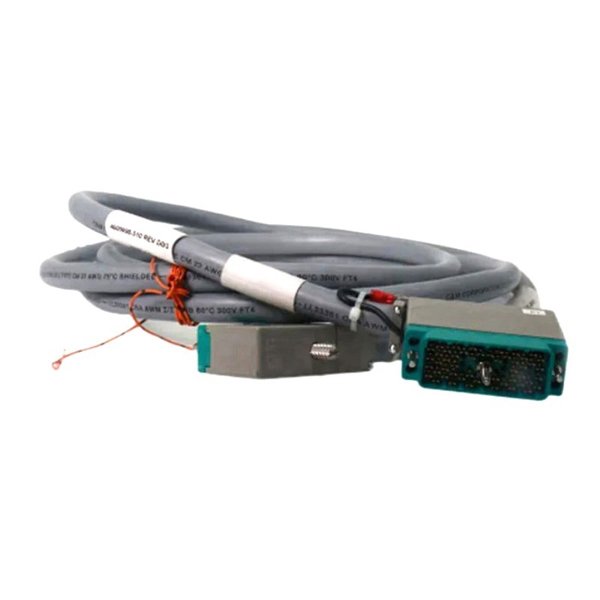

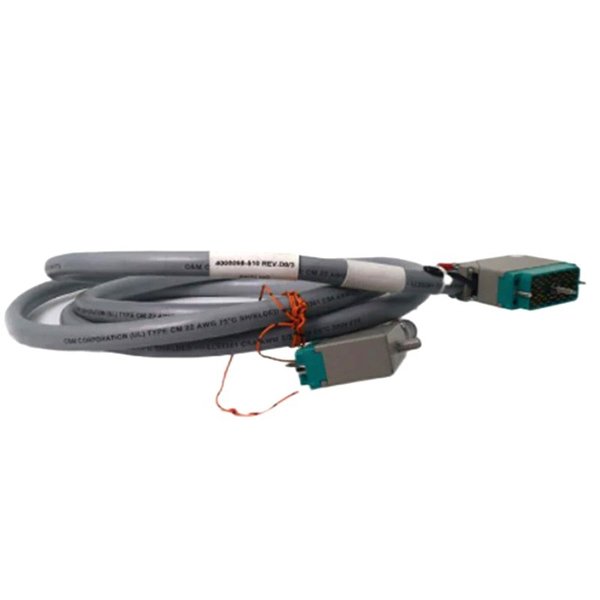

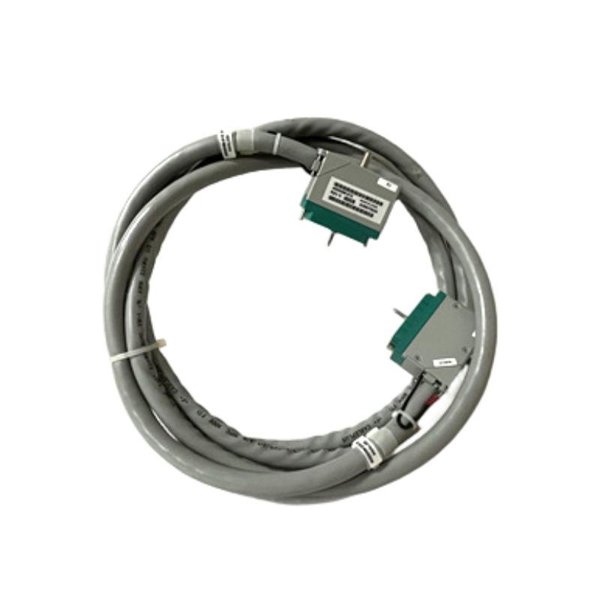

Triconex 4000098-510 Cable Assembly

The Triconex 4000098-510 is a vital safety and control module designed for use within the Triconex TriStation architecture. It serves as an essential component in mission-critical applications where reliability, fault tolerance, and deterministic control are paramount. This module integrates seamlessly into the Triconex safety system, delivering robust processing power and extensive I/O capability, thus ensuring continuous monitoring and protection of industrial processes.

Engineered with advanced fail-safe technology, the 4000098-510 enhances system availability while minimizing risk to personnel, equipment, and the environment. It is widely used in sectors such as oil and gas, power generation, chemical processing, and petrochemicals where safety integrity and regulatory compliance are mandatory.

Product Parameters

Product Applications

The Triconex 4000098-510 module is primarily used for the following applications:

• Safety Instrumented Systems (SIS): Ensures critical shutdown and emergency functions to maintain safe plant operations.

• Process Control: Monitors and controls complex processes to prevent hazardous events.

• Emergency Shutdown Systems (ESD): Provides rapid response and fault tolerance to trigger emergency procedures.

• Fire and Gas Systems: Integrates with fire and gas detection for immediate safety responses.

• Turbine and Compressor Protection: Protects rotating machinery by monitoring vibration, temperature, and speed sensors.

• Critical Infrastructure: Used in power plants and refineries for maintaining safety and compliance with industry standards.

Product Advantages

• High Reliability: Designed with triple modular redundancy to eliminate single points of failure.

• Fault Tolerant Architecture: Continues operation despite module or channel failures, improving system availability.

• Ease of Integration: Fully compatible with Triconex TriStation software and other modules, simplifying system design and maintenance.

• Compliance with Standards: Meets international safety standards such as IEC 61508 SIL 3, making it suitable for the most demanding safety applications.

• Robust Physical Design: Withstands harsh industrial environments, wide temperature ranges, and vibration.

• Scalable: Can be used in systems of varying sizes, from small installations to large, distributed safety networks.

• Diagnostic Features: Built-in self-tests and diagnostics help in early fault detection and maintenance planning.

• Reduced Downtime: Hot-swappable modules minimize process interruptions during maintenance or replacements.

Frequently Asked Questions (FAQ)

Q1: What type of input/output signals does the Triconex 4000098-510 handle?

A1: This module handles safety-rated discrete digital inputs and outputs designed for critical system control and monitoring.

Q2: Is the 4000098-510 compatible with all Triconex systems?

A2: Yes, it is compatible with Triconex TriStation systems, particularly those configured for safety and control applications.

Q3: What safety integrity level (SIL) does this module meet?

A3: The module is certified to meet SIL 3 requirements under IEC 61508.

Q4: Can this module be installed in harsh industrial environments?

A4: Yes, it is designed for use in industrial environments with temperature ranges from -20°C to +70°C and resistance to humidity and vibration.

Q5: What is the typical power supply for this module?

A5: The module operates on a 24 V DC power supply, common in industrial control systems.

Q6: How is the module mounted within a control system?

A6: It can be mounted on standard DIN rails or within designated racks, ensuring easy installation and maintenance.

Q7: What diagnostics are available on this module?

A7: It includes built-in self-tests and diagnostic feedback to detect faults and alert operators promptly.

Q8: Is the module hot-swappable?

A8: Yes, modules can be replaced without shutting down the entire system, minimizing operational downtime.

Q9: How does the module contribute to system safety?

A9: It supports triple modular redundancy and continuous self-checking, ensuring high reliability and fault tolerance.

Q10: What maintenance practices are recommended for the 4000098-510?

A10: Regular inspection, firmware updates, and diagnostic monitoring are recommended to maintain optimal performance.
