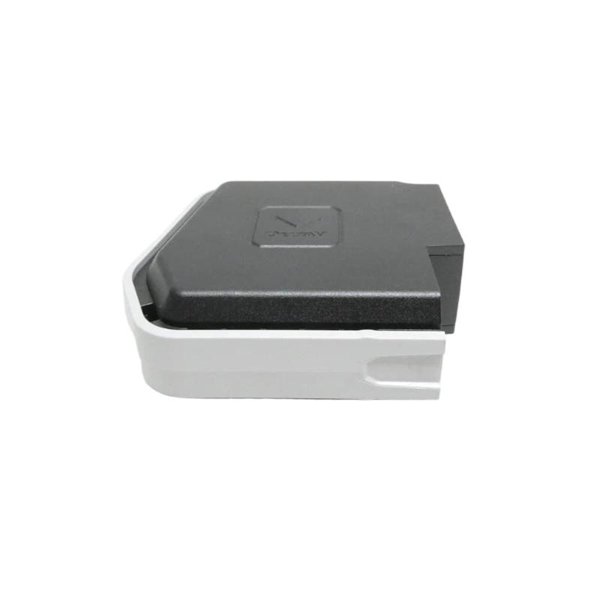

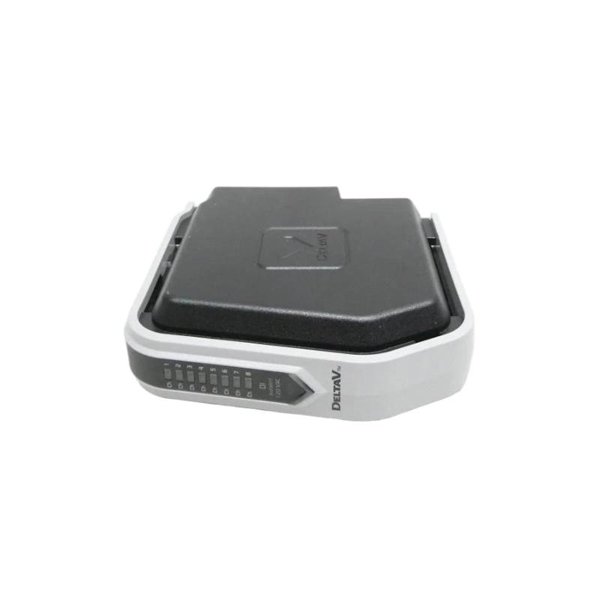

Emerson SE4002S1T2B5 DO Card with 40-Pin High-Capacity I/O Terminal

The Emerson SE4002S1T2B5 Discrete Output (DO) Card with 40-Pin High-Capacity I/O Terminal is a versatile and robust module designed to handle high-density output requirements in industrial control systems. It provides 8 discrete output channels, each capable of handling high-current load, with a 40-pin terminal block that allows for easy and secure wiring connections. This DO card is part of Emerson’s family of automation products, offering seamless integration into control systems where high reliability, fast response, and effective signal isolation are required.

The SE4002S1T2B5 card is ideal for applications that demand precise control over digital output signals, providing reliable performance in environments where electrical noise, surges, and other interference can be a concern. With its compact design and easy installation process, this module is a highly effective solution for a range of industries, including manufacturing, power generation, oil and gas, and chemical processing.

Product Parameters

Product Applications

The Emerson SE4002S1T2B5 Discrete Output Card is used in a wide variety of industrial applications, particularly where high-density, high-capacity control of digital output signals is required. Some of the key applications include:

• Manufacturing Automation: Used to control solenoids, actuators, relays, and other devices that are essential to manufacturing processes.

• Power Generation: Provides output signals to control relays, circuit breakers, and other devices in power plants and substations.

• Oil & Gas Industry: Helps in controlling valves, pumps, and other equipment in refineries, pipelines, and offshore platforms.

• Chemical Processing: Used to manage critical equipment in chemical plants, ensuring safety and reliability in hazardous environments.

• Building Automation: Controls devices such as HVAC systems, lighting, and security systems within commercial and residential buildings.

Advantages of the Product

The Emerson SE4002S1T2B5 Discrete Output Card provides a range of advantages that make it an excellent choice for industrial applications:

• High Capacity: With 40-pin high-capacity I/O terminals, this card can handle multiple output connections, making it ideal for large-scale systems.

• Reliable Performance: The card offers stable and reliable output signals, ensuring consistent operation in high-demand environments.

• Galvanic Isolation: The galvanic isolation between output channels ensures protection from electrical noise, surges, and interference, extending the lifespan of connected equipment.

• Fast Response Times: The card’s discrete output capability ensures rapid switching of signals, making it ideal for high-speed control applications.

• Flexible Integration: The card is designed to easily integrate with Emerson’s control systems, providing a scalable solution for various industries.

• Compact Design: With a compact size of 41.8 x 130.8 x 131 mm, the card fits easily into control panels, saving space without compromising performance.

• Ease of Installation: The card is mounted on a standard DIN rail, simplifying installation and reducing setup time.

• Wide Operating Range: The card operates within a broad temperature range of -20°C to 60°C, making it suitable for both industrial and outdoor environments.

FAQ

1. What type of output does the SE4002S1T2B5 provide?

   • The SE4002S1T2B5 provides discrete digital outputs, which are ideal for controlling devices such as relays, solenoids, and actuators in automation systems.

2. How many output channels are available on the SE4002S1T2B5?

   • The card offers 8 output channels, allowing you to control multiple devices simultaneously.

3. What is the nominal output voltage of the SE4002S1T2B5?

   • The nominal output voltage is 24V DC, which is commonly used in industrial control systems for discrete outputs.

4. What is the maximum current per output channel?

   • Each output channel can handle up to 0.5A, making the card suitable for controlling low-power devices.

5. How does the galvanic isolation benefit the SE4002S1T2B5?

   • The galvanic isolation ensures that each output channel is electrically separated, protecting the card and connected equipment from electrical noise, surges, and ground loops.

6. Can the SE4002S1T2B5 be used in high-temperature environments?

   • Yes, the card operates within a temperature range of -20°C to 60°C, making it suitable for both standard and harsh environmental conditions.

7. How is the SE4002S1T2B5 mounted?

   • The card is mounted on a DIN rail, which is a widely used method for securing components in control panels.

8. What type of connectors does the SE4002S1T2B5 use?

   • The card uses a 40-pin high-capacity I/O terminal, ensuring secure and reliable connections for each output channel.

9. Is the SE4002S1T2B5 compatible with other Emerson control systems?

   • Yes, it is fully compatible with Emerson’s range of control systems, providing a flexible solution for various automation and control applications.

10. What kind of devices can the SE4002S1T2B5 control?

    • The card is used to control devices such as solenoids, relays, actuators, and valves in industrial automation systems.
