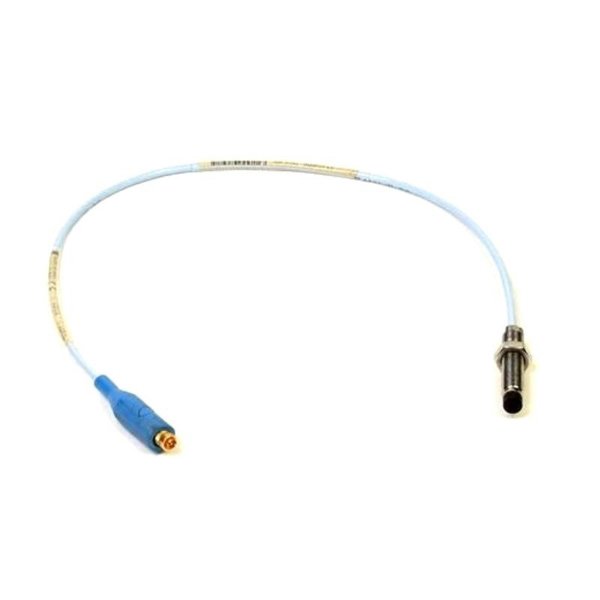

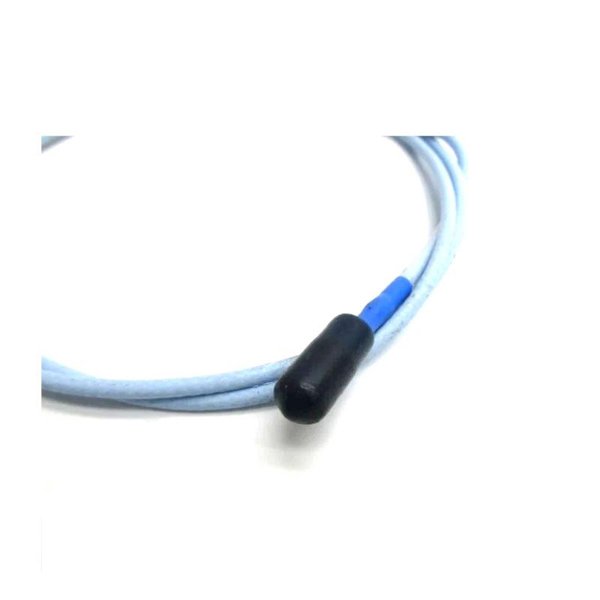

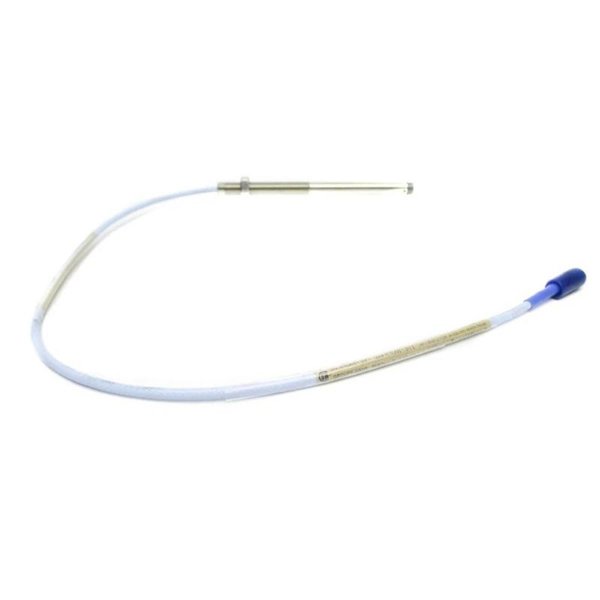

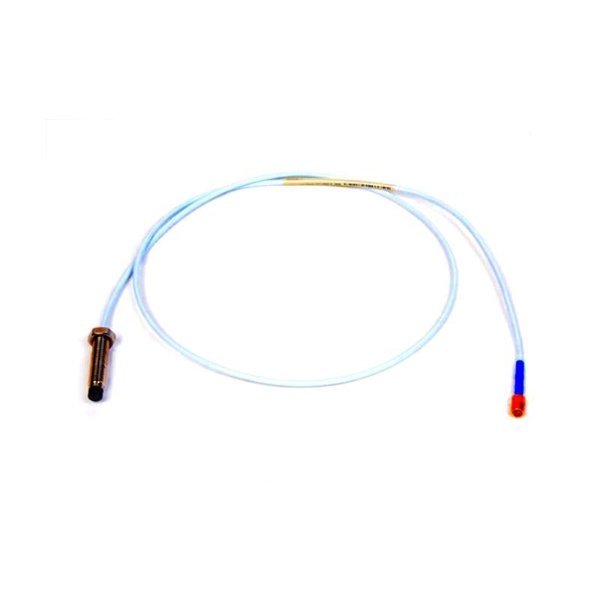

Bently Nevada 330101-00-15-10-02-05 3300 XL 8 mm Proximity Probe
Manufacturer:Bently Nevada
Product Number:330101-00-15-10-02-05
Product Type:3300 XL 8 mm Proximity Probe
Origin:USA
Total Length:1.0 meter
Weight:0.323 kg
Views:39
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330101-00-15-10-02-05 is part of the 3300 XL 8 mm Proximity Transducer System. It measures both static (position) and dynamic (vibration) data on rotating machinery. The system is ideal for fluid-film bearing machines and provides API 670-compliant accuracy, reliability, and robustness. Components are fully interchangeable and backward-compatible.
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Tip Material | PPS (Polyphenylene sulfide) |
| Probe Case Material | Stainless steel 303/304 |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Cable Type | FEP insulated 75Ω coaxial |
| Frequency Response | 0 to 10 kHz (+0, -3 dB) |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap | 1.27 mm (50 mils) |
| Operating Temp (Probe) | -52°C to +177°C (standard) |
| Storage Temp (Probe) | -52°C to +177°C |
| Humidity | <3% ASF change @ 93% RH |
| Pressure Sealing | Viton O-ring seal |
| Compliance | API 670, SIL 2/3, CE, FCC, RoHS |
Applications
-
Vibration and position monitoring of turbines, compressors, pumps, and motors.
-
Keyphasor and speed measurements.
-
Condition monitoring in hazardous and high-density installations.
Advantages
-
API 670 compliance.
-
Fully interchangeable components for easy maintenance.
-
High EMI/RFI immunity, CE-certified.
-
Rugged construction for industrial environments.
-
Backward compatibility with non-XL 3300 systems.
-
Optional FluidLoc cable prevents oil ingress.
FAQ
Q1: What is the primary use of this probe?
A1: It is designed to measure vibration and position on rotating machinery.
Q2: Is the probe compliant with API 670?
A2: Yes, it fully meets API 670 requirements.
Q3: Can I use it in hazardous areas?
A3: Yes, it has CSA, ATEX, IECEx approvals for hazardous areas.
Q4: Is the cable included with the probe?
A4: Yes, it includes a 1.0-meter FEP-insulated cable.
Q5: Are components interchangeable?
A5: Yes, components are fully interchangeable with 3300 series.
Q6: Does it support high temperature?
A6: Standard probe operates up to +177°C. ETR version available for higher temperatures.
Q7: What is the linear measurement range?
A7: The linear range is 2 mm (80 mils).
Q8: How is EMI/RFI handled?
A8: The probe has enhanced shielding and is CE-compliant.
Q9: Does it come with an armored cable?
A9: This model uses standard cable; armored options are available.
Q10: What is the minimum shaft size for use?
A10: Recommended for shafts 76.2 mm (3 inches) or larger.
