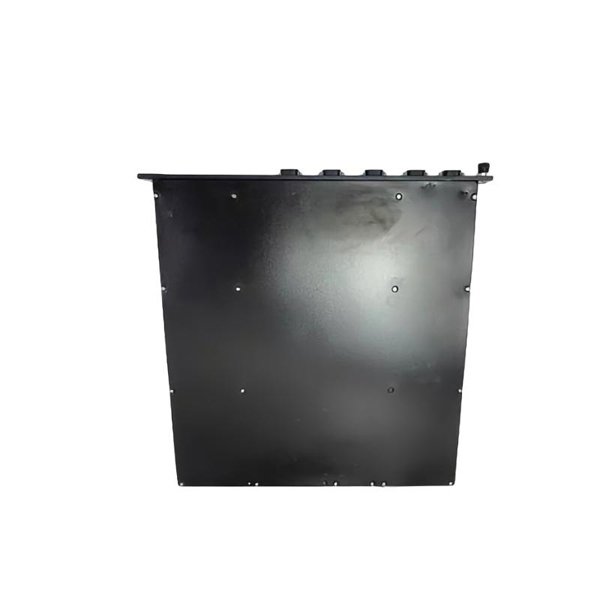

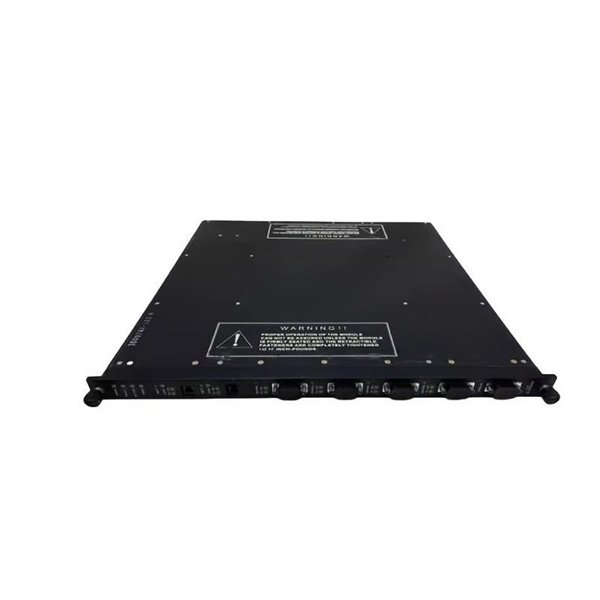

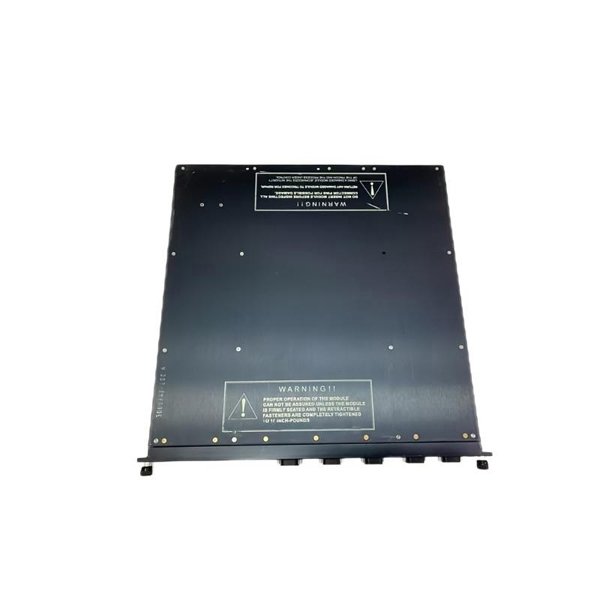

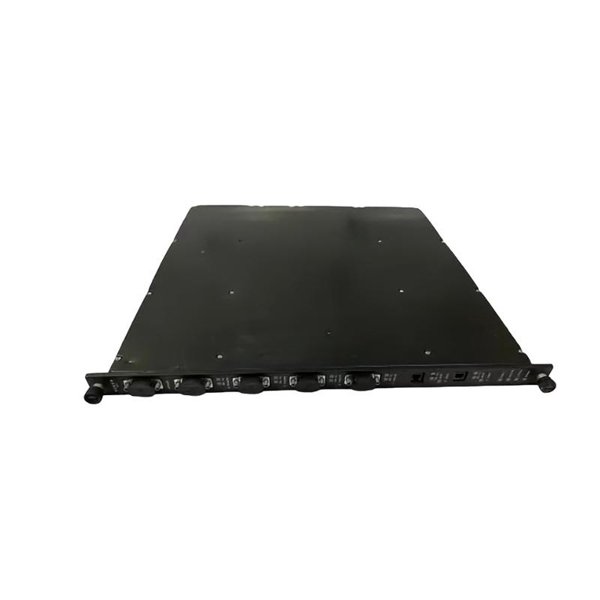

Triconex 4352A Communication Module

The Triconex 4352A Communication Module is a high-performance communication interface module used in the Triconex Tricon® Fault-Tolerant Safety Systems. Engineered for mission-critical applications, the 4352A module facilitates reliable and deterministic communication between the Tricon controller and other control systems or devices within the plant architecture. It supports a wide range of protocols and provides flexible communication paths to various Distributed Control Systems (DCS), Human-Machine Interfaces (HMI), SCADA systems, and engineering workstations.

Built with triple modular redundancy (TMR) and designed to comply with international safety standards such as IEC 61508 and ISA/IEC 62443, the 4352A enhances the safety, availability, and security of critical industrial processes.

Product Specifications

Applications

The Triconex 4352A Communication Module is widely used in industries where functional safety and continuous availability are paramount. Its applications include:

• Oil & Gas: Upstream, midstream, and downstream systems for emergency shutdown (ESD), fire and gas (F&G), burner management systems (BMS), and wellhead control.

• Petrochemical Plants: Used in chemical reactors, distillation units, and hazardous process controls.

• Power Generation: Turbine control systems, boiler protection, and nuclear safety systems.

• Pharmaceutical Manufacturing: High-integrity control systems for batch processing and material handling.

• Mining and Metals: Controls for smelters, refineries, and material handling units.

• Water & Wastewater Treatment: For reliable communication between pump stations, treatment units, and central control rooms.

Advantages

• High Reliability: Based on Triple Modular Redundancy (TMR), offering superior fault tolerance.

• Flexible Protocol Support: Supports both serial and Ethernet-based communication protocols, making integration seamless.

• Safety Certified: Certified up to SIL 3, meeting global safety standards.

• Modular Architecture: Easy to scale and configure according to the needs of the plant or process.

• Built-in Diagnostics: Real-time diagnostics and LED indicators help minimize downtime and ensure proactive maintenance.

• Hot Swappable: Enables maintenance without system downtime, ensuring operational continuity.

• Cybersecurity Ready: Supports secure protocols and complies with IEC 62443 cybersecurity standards.

• Wide Compatibility: Fully compatible with other Triconex modules, DCS, SCADA, and third-party systems.

Frequently Asked Questions (FAQ)

1. Q: What is the main function of the Triconex 4352A module?

   A: It provides communication pathways between the Tricon safety system and external systems like DCS, HMI, and SCADA.

2. Q: Which communication protocols are supported by the 4352A?

   A: It supports Modbus RTU, Modbus TCP/IP, and serial protocols like RS-232 and RS-485.

3. Q: Can the 4352A module be replaced while the system is running?

   A: Yes, it is a hot-swappable module designed for minimal downtime.

4. Q: Is the Triconex 4352A certified for safety applications?

   A: Yes, it is SIL 3 certified per IEC 61508.

5. Q: How many 4352A modules can be installed in one system?

   A: Up to 8 communication modules can be installed per Tricon chassis.

6. Q: Does the 4352A support Ethernet communication?

   A: Yes, it supports Ethernet-based communication including Modbus TCP/IP.

7. Q: What diagnostics features are included?

   A: It features built-in diagnostics, LED indicators, and error-checking mechanisms.

8. Q: What is the physical size of the 4352A?

   A: The module measures 281 mm × 49 mm × 175 mm.

9. Q: Is firmware upgradeable on the 4352A?

   A: Yes, firmware can be updated through an engineering workstation.

10. Q: What industries typically use the Triconex 4352A?

    A: Common industries include oil & gas, power generation, chemical processing, and water treatment.
