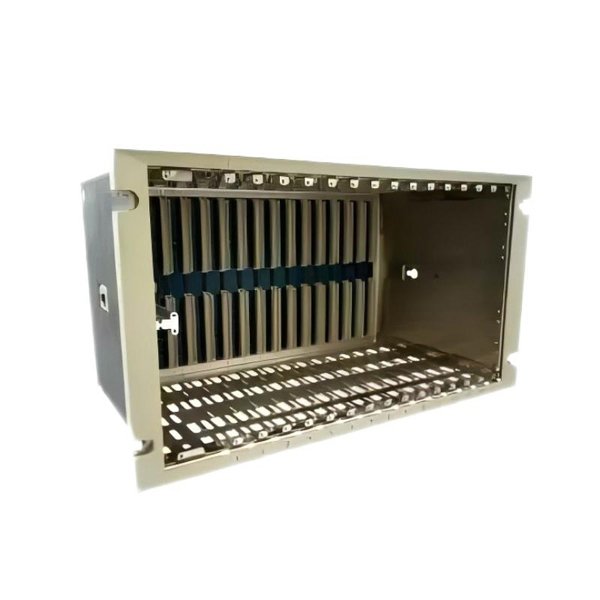

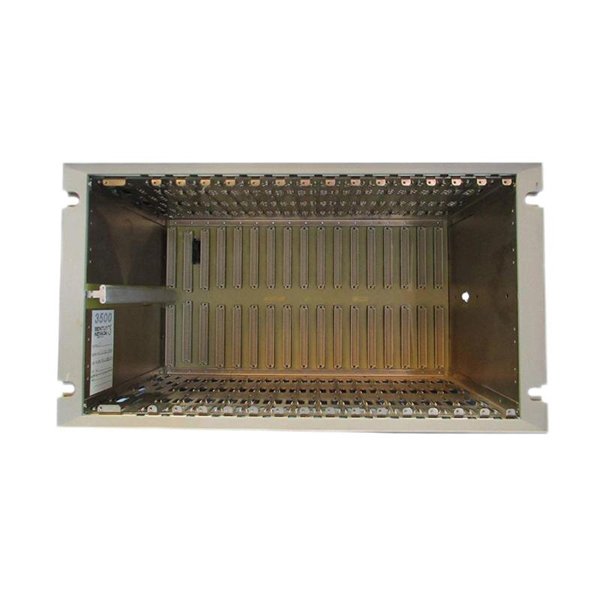

Bently Nevada 3500/05-01-02-01-00-01 3500/05 System Rack

The Bently Nevada 3500/05-01-02-01-00-01 system rack is a rugged and versatile 19-inch chassis designed to house up to 14 modules from the 3500 Series family. This particular model supports rear input/output connections and is configured to accommodate redundant power supplies, ensuring high availability and system reliability in critical machinery protection applications.

Constructed with durable anodized aluminum and stainless steel hardware, this rack is engineered to withstand demanding industrial environments. The passive cooling design eliminates fans, reducing maintenance needs and enhancing long-term reliability. This rack is a core component in the 3500 system platform widely used for continuous machinery condition monitoring and fault diagnostics.

The ability to support redundant power supply modules makes this rack particularly suitable for installations where uninterrupted operation is essential, such as power plants, petrochemical facilities, and heavy manufacturing industries.

Technical Specifications

Applications

The 3500/05-01-02-01-00-01 rack is suited for a variety of demanding industrial environments where continuous equipment monitoring and protection are critical:

• Power Generation

  Used to house modules monitoring turbines, generators, and auxiliaries, enabling uninterrupted power delivery.

• Oil and Gas Industry

  Protects rotating equipment in upstream, midstream, and downstream facilities including offshore platforms.

• Petrochemical Plants

  Supports condition monitoring of pumps, compressors, and other critical rotating assets in harsh environments.

• Mining and Metals

  Applied to protect crushers, mills, and conveyors from catastrophic failures.

• Water and Wastewater Treatment

  Facilitates reliable equipment condition monitoring to optimize maintenance and reduce downtime.

• Heavy Manufacturing

  Enables continuous machinery health monitoring in processes requiring high uptime.

Advantages

• Redundant Power Supply Support

  Dual slots for power supplies increase system availability and fault tolerance.

• Rear I/O Access

  Simplifies wiring and improves serviceability by routing all connections from the back.

• Robust Construction

  Anodized aluminum frame and stainless steel hardware provide durability in harsh conditions.

• Passive Cooling Design

  Fanless operation reduces maintenance requirements and enhances reliability.

• Standard 19-Inch Rack Format

  Easily integrates into standard control room cabinets.

• Modular Flexibility

  Accommodates a wide range of 3500 Series modules for tailored monitoring solutions.

• Integrated Grounding

  Enhances safety and reduces electromagnetic interference.

• Easy Installation and Maintenance

  Tool-less module mounting and accessible connectors reduce downtime during servicing.

Frequently Asked Questions (FAQ)

Q1: How many modules can this rack hold?

A1: It supports up to 14 modules.

Q2: Does this rack support redundant power supplies?

A2: Yes, it supports dual power supply slots for redundancy.

Q3: Where are the I/O connections located?

A3: All input/output connections are accessible at the rear of the rack.

Q4: What cooling method is used?

A4: The rack uses passive cooling with no fans.

Q5: What is the weight of the rack?

A5: Approximately 4.5 kg.

Q6: Is the rack compatible with all 3500 Series modules?

A6: Yes, it supports all standard 3500 Series modules.

Q7: What are the rack’s dimensions?

A7: Standard 19-inch width with 14 module slots.

Q8: What materials are used in the rack’s construction?

A8: Anodized aluminum chassis with stainless steel fasteners.

Q9: What temperature range can it operate in?

A9: From -20°C to +60°C.

Q10: Does the rack have integrated grounding?

A10: Yes, it includes a built-in grounding rail.
