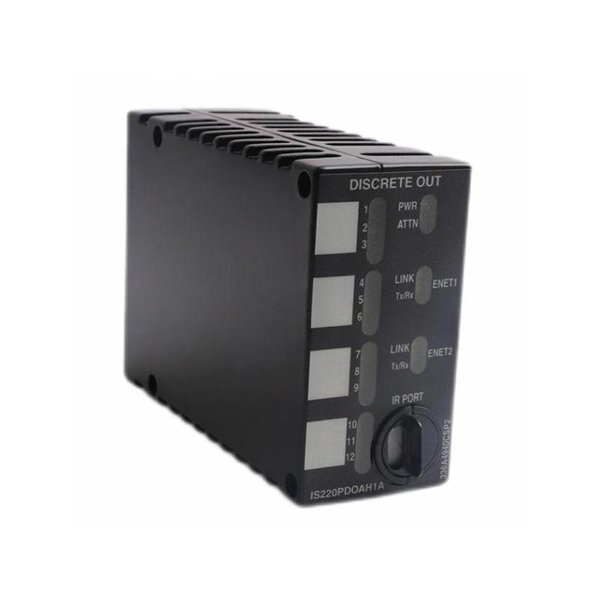

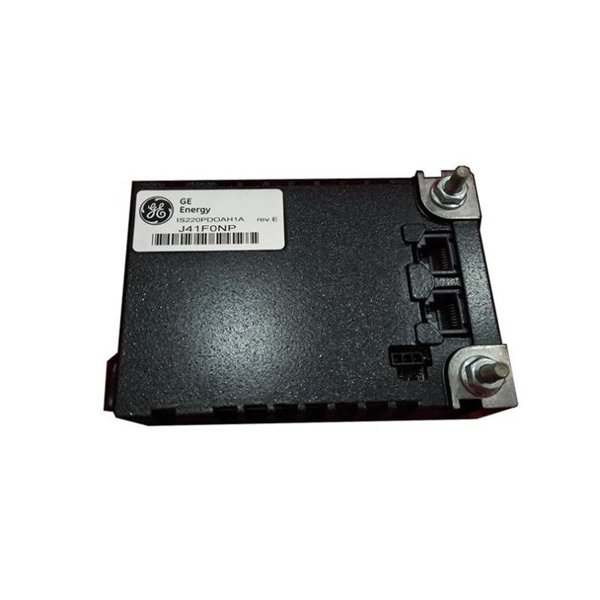

General Electric IS220PDOAH1A Discrete output Modules

The GE IS220PDOAH1A is a high-performance digital output module designed for industrial automation and control systems. It is part of GE’s Mark VIe series, which is widely used in power generation, oil & gas, and other critical industrial applications. This module provides reliable and precise digital output control, ensuring seamless integration within complex automation systems.

Built with rugged industrial-grade components, the IS220PDOAH1A offers exceptional durability and long-term performance in harsh environments. Its modular design allows for easy installation and maintenance, making it a preferred choice for engineers and system integrators.

Product Specifications

Product Applications

The GE IS220PDOAH1A is widely used in industries requiring precise digital control and automation, including:

• Power Generation: Controls turbine systems, circuit breakers, and generator excitation.

• Oil & Gas: Manages valve actuation, pump control, and safety shutdown systems.

• Manufacturing: Used in assembly lines, robotic controls, and machine automation.

• Water Treatment: Controls pumps, valves, and filtration systems.

• Transportation: Deployed in railway signaling and traffic control systems.

Product Advantages

1. High Reliability – Designed for continuous operation in demanding environments.

2. Flexible Configuration – Supports multiple output modes (sink/source).

3. Fast Response Time – Ensures real-time control for critical applications.

4. Robust Construction – Resistant to vibration, dust, and temperature fluctuations.

5. Easy Integration – Compatible with GE’s Mark VIe control systems.

6. Diagnostic Features – Built-in fault detection for quick troubleshooting.

7. Scalability – Can be expanded with additional I/O modules as needed.

Frequently Asked Questions (FAQ)

1. What is the maximum load current per channel?

   Each channel supports up to 0.5A.

2. Can this module be used in hazardous environments?

   It is designed for industrial use but may require additional enclosures for hazardous areas.

3. What communication protocols does it support?

   It uses Ethernet (SRTP) for communication.

4. Is the module hot-swappable?

   No, it is recommended to power down before installation or removal.

5. What is the operating temperature range?

   -20°C to +70°C.

6. Can it be used with non-GE controllers?

   It is optimized for GE Mark VIe systems but may work with third-party controllers with proper interfacing.

7. How many output channels are available?

   16 configurable digital outputs.

8. What is the typical lifespan of this module?

   Over 5 years with proper maintenance.

9. Does it support redundant configurations?

   Yes, when used in a dual-redundant control system.

10. How long is the warranty period?

    The standard warranty is 1 years, subject to proper usage and conditions.
