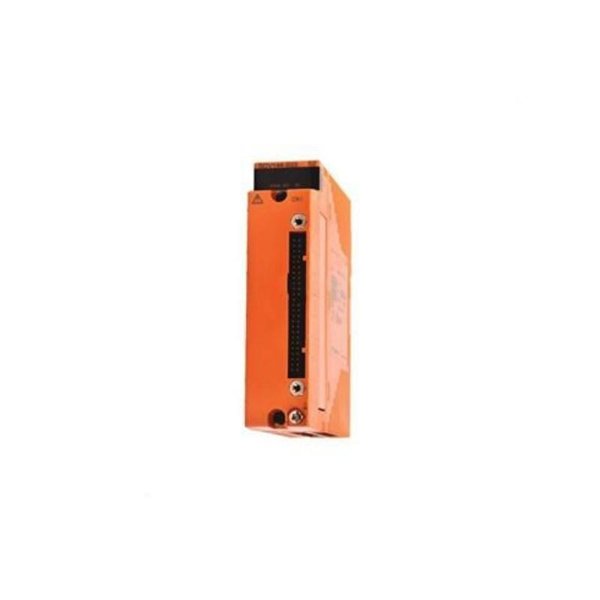

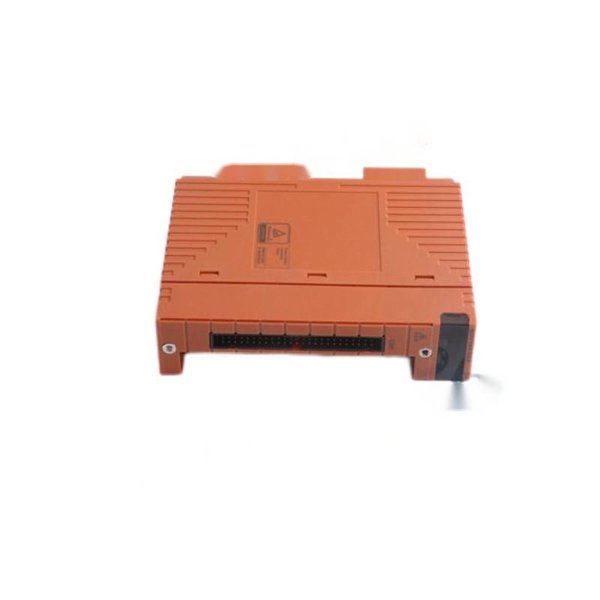

Yokogawa SSC10S Safety Control Unit

The Yokogawa SSC10S Safety Control Unit is a high-performance safety controller designed to provide reliable and safe process control in a wide range of industrial applications. As part of Yokogawa’s comprehensive safety instrumented systems (SIS), the SSC10S is engineered to protect assets and prevent safety incidents by maintaining system integrity under hazardous conditions. It is particularly suited for industries such as oil & gas, chemical processing, power generation, petrochemicals, and other high-risk sectors where safety is paramount.

This unit ensures compliance with IEC 61508 and IEC 61511 functional safety standards, offering fail-safe operation and reducing the risk of accidents or system failures. The SSC10S provides highly reliable safety control, even in complex and mission-critical environments, and is designed to handle a variety of input and output signals.

With a compact form factor of 200 x 150 x 80 mm and a lightweight design of 1.2 kg, the SSC10S is easy to install in existing control systems without requiring excessive space.

Key Features

• Reliable Fail-Safe Operation: The SSC10S is built for fail-safe protection and continuous safety control, ensuring that even if a fault occurs, the system switches to a safe state without interruption.

• Compliance with Functional Safety Standards: The unit meets IEC 61508 and IEC 61511 standards, ensuring it operates in the most demanding environments and complies with international safety regulations.

• Compact and Lightweight: At only 200 x 150 x 80 mm and weighing just 1.2 kg, it can be easily integrated into existing systems and is suitable for installations with limited space.

• Versatile Signal Processing: It supports a wide variety of input and output signals, making it versatile for different applications in industrial automation and safety systems.

• Redundant Channels for Increased Reliability: The unit utilizes redundant channels to ensure continuous safety monitoring, even in the case of a failure in one of the channels.

• Enhanced Diagnostics: The SSC10S provides detailed diagnostics for monitoring system health, which helps to identify potential issues before they lead to safety problems.

• User-Friendly Configuration and Maintenance: The system offers intuitive configuration and maintenance procedures, making it easy for engineers and operators to set up, calibrate, and troubleshoot.

Product Parameters

Product Applications

The Yokogawa SSC10S Safety Control Unit is ideal for applications in industries where safety is a critical concern. Some of its primary applications include:

• Oil & Gas: Protecting assets such as pipelines, drilling rigs, and offshore platforms by ensuring emergency shutdown systems are always operational.

• Chemical Processing: Ensuring safe operations in chemical plants by monitoring key safety parameters and responding to hazardous conditions.

• Power Generation: Providing fail-safe protection to critical systems in power plants, including turbines, generators, and boilers, to avoid catastrophic failures.

• Petrochemical Industry: Monitoring safety parameters in petrochemical refineries and ensuring that emergency shutdown procedures are executed seamlessly when required.

• Industrial Automation: The SSC10S is an essential component in industrial automation systems, helping to maintain operational safety during routine operations or unforeseen events.

• HVAC Systems: Ensuring safe and efficient operation of heating, ventilation, and air conditioning systems, especially in environments where safety is a key concern.

Advantages of the Product

1. High Reliability: With its redundant channels and fail-safe operation, the SSC10S ensures continuous safety monitoring even in the event of system malfunctions.

2. Compact Design: At only 200 x 150 x 80 mm, the unit is compact and ideal for installations where space is limited.

3. Energy Efficient: The unit operates with low power consumption (15 W), contributing to overall energy efficiency and reducing operational costs.

4. Easy Integration: The SSC10S can be easily integrated into existing safety control systems, making it a versatile solution for various industries.

5. Meets Industry Standards: Fully compliant with IEC 61508 and IEC 61511 standards, ensuring high-level safety for critical systems.

6. Wide Input/Output Compatibility: Supports both analog and digital signals, offering flexibility for a wide range of applications.

7. Enhanced Diagnostics: Provides real-time diagnostics and feedback, allowing operators to monitor system health and prevent potential failures.

8. User-Friendly Interface: The configuration, operation, and maintenance are straightforward, with easy-to-use diagnostic tools and setup processes.

9. Versatile Applications: Suitable for use in various industries, including oil & gas, chemical processing, and power generation.

10. Global Support: Being a part of Yokogawa’s product range, the SSC10S benefits from extensive global support and maintenance services.

Frequently Asked Questions (FAQ)

1. What is the primary function of the Yokogawa SSC10S?

   • The SSC10S is designed for safety control, ensuring continuous monitoring and fail-safe operation in critical industrial systems.

2. What are the key features of the SSC10S?

   • Key features include redundant channels, IEC 61508 and IEC 61511 compliance, and compact size for easy integration.

3. What industries use the SSC10S?

   • The SSC10S is primarily used in oil & gas, chemical processing, power generation, and petrochemicals, as well as other industries where safety is critical.

4. What is the size of the SSC10S?

   • The SSC10S measures 200 x 150 x 80 mm and weighs 1.2 kg, making it compact and easy to install.

5. What is the power consumption of the SSC10S?

   • The power consumption is 15 W, which makes the unit energy-efficient and cost-effective to operate.

6. How does the SSC10S handle failures?

   • The SSC10S features dual-channel redundancy and switches to backup channels in case of failure, ensuring continuous safety control.

7. What is the temperature range of the SSC10S?

   • The operating temperature range of the SSC10S is -20°C to 60°C, making it suitable for a variety of industrial environments.

8. Can the SSC10S handle both analog and digital signals?

   • Yes, the SSC10S is capable of processing both analog and digital signals, providing flexibility in industrial control systems.

9. Is the SSC10S compatible with other Yokogawa systems?

   • Yes, the SSC10S is compatible with Yokogawa DCS systems and can easily integrate with existing safety control systems.

10. How easy is it to maintain the SSC10S?

    • The unit is designed for easy maintenance, with user-friendly configuration tools, diagnostics, and setup procedures for quick troubleshooting.
