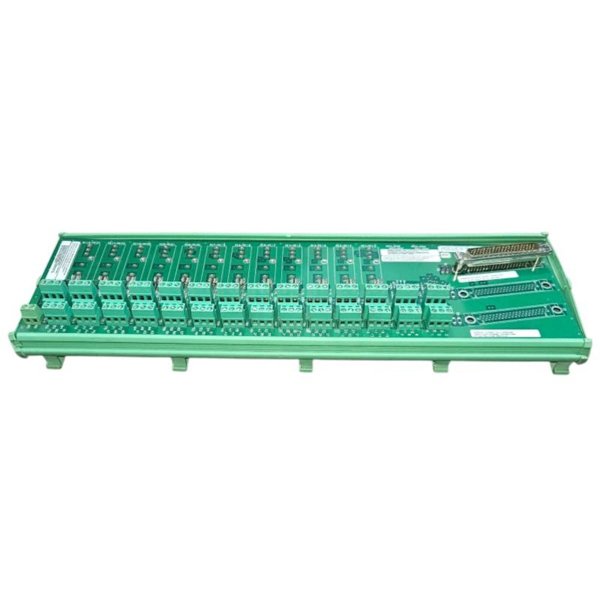

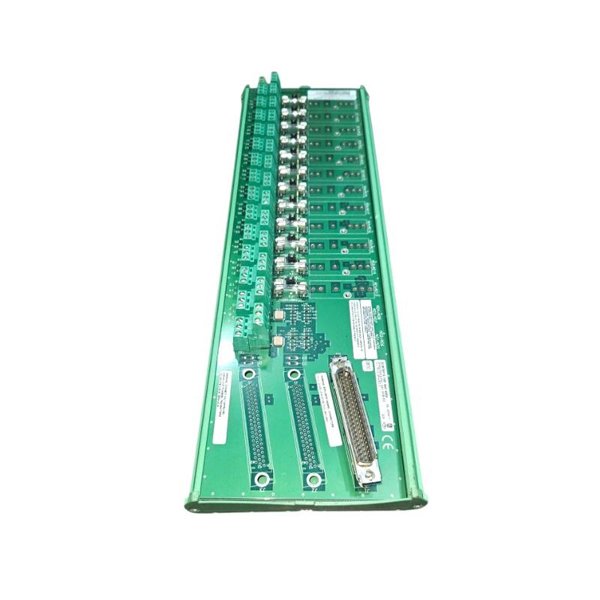

Woodward 5441-695 DataForth FTM Module

The Woodward 5441-695 DataForth FTM Module is a field termination module (FTM) designed to facilitate the integration of Dataforth signal conditioning hardware with Woodward control platforms such as the MicroNet and MicroNet Plus systems. As a specialized interface module, the 5441-695 provides secure, efficient, and organized signal routing between field devices and control systems.

The FTM module supports a variety of analog and discrete signal types and ensures signal integrity through isolation and noise reduction features. It is an essential part of systems requiring accurate signal conversion and high-fidelity transmission across industrial environments. This module is especially useful in turbine, engine, and process control applications where robust I/O connectivity and conditioning are required.

Product Specifications

Product Applications

The 5441-695 FTM module is used in systems that demand accurate signal conditioning, isolation, and reliable data transmission between field sensors and control processors. Typical use cases include:

• Turbine and Engine Control Systems

• Industrial Process Automation

• Power Plant Monitoring Systems

• Compressor and Pump Control Panels

• Signal Isolation and Conditioning for Harsh Environments

• SCADA and Remote I/O Interfaces

• Safety-Critical Signal Routing Applications

Product Advantages

• Flexible Signal Compatibility

  Supports a wide range of analog and digital signal types, including voltage and current loops.

• Seamless Integration

  Designed to interface directly with Woodward MicroNet platforms and Dataforth SCM5B signal conditioning modules.

• Enhanced Signal Integrity

  Built-in optical and galvanic isolation minimizes noise and prevents ground loops.

• Robust Diagnostics

  Integrated LED indicators and system compatibility enable real-time signal monitoring and fault detection.

• Industrial Ruggedness

  Built to operate in high-temperature, high-noise environments with robust electrical immunity.

• High Channel Density

  Offers up to 32 I/O channels per module, reducing panel space and simplifying system architecture.

• Reliable Termination

  Field-tested screw terminals and modular plugs ensure secure, vibration-resistant connectivity.

FAQ

1. Which signal types can the 5441-695 module interface with?

   It supports analog voltage (±10 VDC), current (4–20 mA), and discrete signals (TTL, 24 VDC).

2. Can I use Dataforth SCM5B modules with this FTM?

   Yes, it is specifically designed to support the Dataforth SCM5B signal conditioning series.

3. Does the module provide electrical isolation between channels?

   Yes, it features optical and galvanic isolation to protect the system from noise and transients.

4. How many channels are supported on one module?

   The module supports up to 32 channels, depending on configuration and signal type.

5. Is it compatible with Woodward MicroNet Plus controllers?

   Yes, it integrates fully with MicroNet and MicroNet Plus systems.

6. Does the module offer any onboard diagnostics?

   Yes, it includes signal status LEDs for each channel and supports fault feedback to the controller.

7. Can it be mounted on a DIN rail?

   Yes, it supports both DIN-rail and panel mounting options.

8. What is the input power requirement?

   It operates on a nominal 24 VDC power supply.

9. Can it isolate analog and digital signals simultaneously?

   Yes, the module is designed to handle mixed signal types with channel-specific isolation.

10. Does the module meet industrial EMC standards?

    Yes, it is CE compliant and built to meet strict electromagnetic compatibility (EMC) standards.
