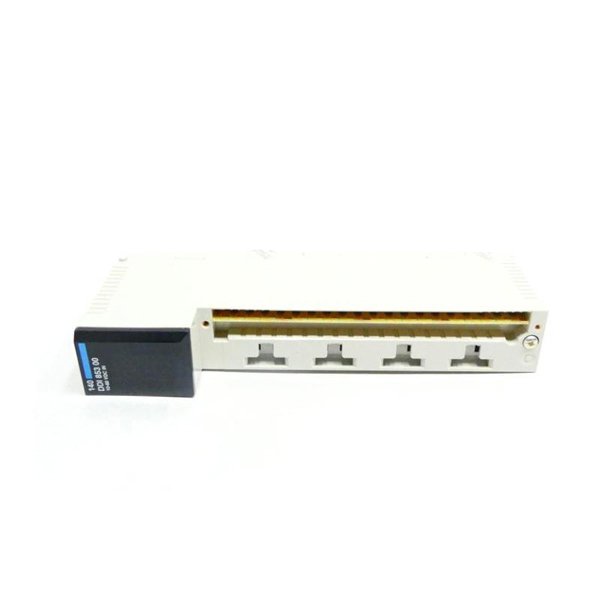

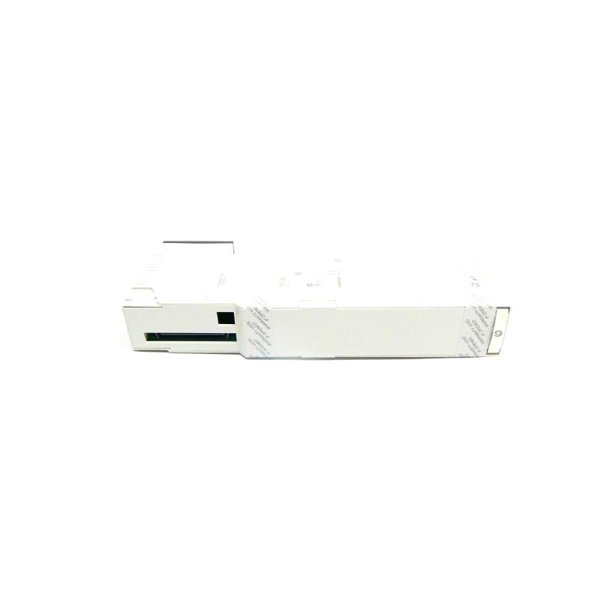

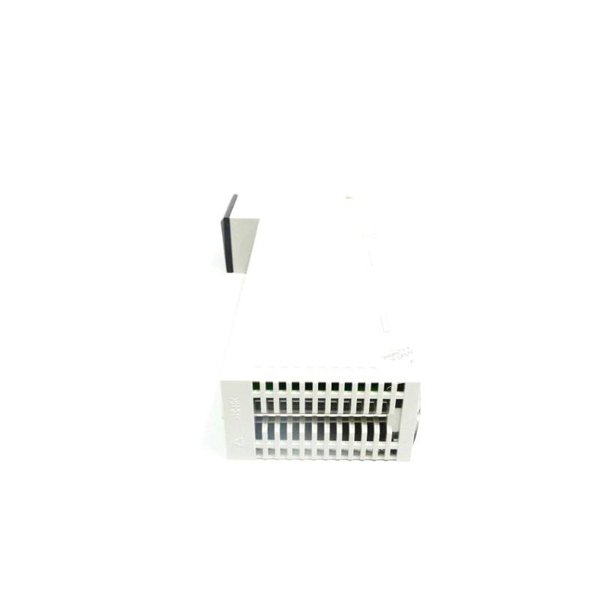

Schneider 140DDI85300 Discrete Input Module
Manufacturer:Schneider
Product Number: 140DDI85300
Product Type:Discrete Input Module
Origin:France
Dimensions:103.9 × 40.3 × 250 mm
Weight:0.295 kg
Views:77
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Schneider 140DDI85300 is a Modicon Quantum discrete input module, engineered for high-performance automation and industrial control systems. It is designed to interface with 24V DC signals and supports 32 input channels, making it an ideal solution for applications that require multiple discrete inputs. This module is known for its fast response time, high reliability, and robust isolation, making it widely used in industries such as manufacturing, energy, transportation, and infrastructure.
Product Specifications
| Specification | Details |
|---|---|
| Discrete Input Channels | 32 |
| Input Voltage Range | 24V DC |
| Input Current | 5-7 mA per channel |
| Voltage State 1 Guaranteed | 11-30V DC |
| Voltage State 0 Guaranteed | 0-5V DC |
| Response Time | 2 ms (state 0 to 1 and state 1 to 0) |
| Isolation Voltage | 2500 Vrms between group and bus, 500 Vrms between channels |
| Bus Current Requirement | 300 mA |
| Power Dissipation | 1 W + (0.8 W per activated input) |
| Local Signaling |
– 32 Green LEDs (input status)
– 1 Red LED (external fault detected) |
| Operating Temperature | 0 to 60 °C |
| Storage Temperature | -40 to 85 °C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Operating Altitude | ≤ 5000 m |
| Shock Resistance | 15g for 11 ms |
| Vibration Resistance | 1g from 5 to 200 Hz |
| Dimensions (H x W x D) | 103.9 × 40.3 × 250 mm |
| Weight | 0.295 kg |
Applications
The Schneider 140DDI85300 is widely implemented in industrial automation environments where reliable and high-speed digital input processing is essential. Its applications include:
- Manufacturing Plants: Used in automated assembly lines, robotic systems, and process control.
- Energy Sector: Facilitates power grid monitoring, substation automation, and renewable energy integration.
- Transportation Systems: Applied in railway signaling, automated traffic control, and airport operations.
- Building Automation: Plays a role in smart building controls, security systems, and HVAC management.
- Water Treatment Facilities: Ensures efficient monitoring and control of pumps, valves, and filtration systems.
Advantages
- High-Density Input Handling: Supports 32 discrete inputs, reducing the need for multiple modules.
- Fast Signal Processing: 2 ms response time ensures real-time data acquisition.
- Robust Electrical Isolation: 2500 Vrms isolation provides protection against electrical noise and interference.
- LED Status Indication: Each channel has an individual LED indicator for quick diagnostics.
- Seamless Modicon Quantum Integration: Easily connects with Schneider Electric’s Quantum series PLCs.
- Wide Operating Conditions: Withstands extreme temperatures, high humidity, and industrial vibrations.
