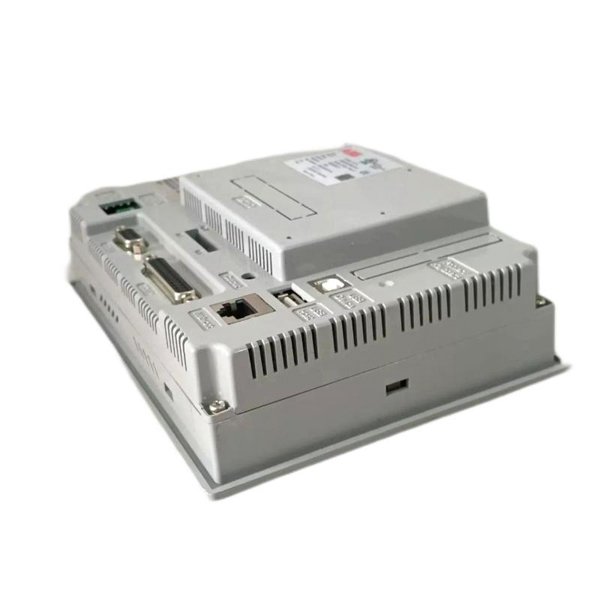

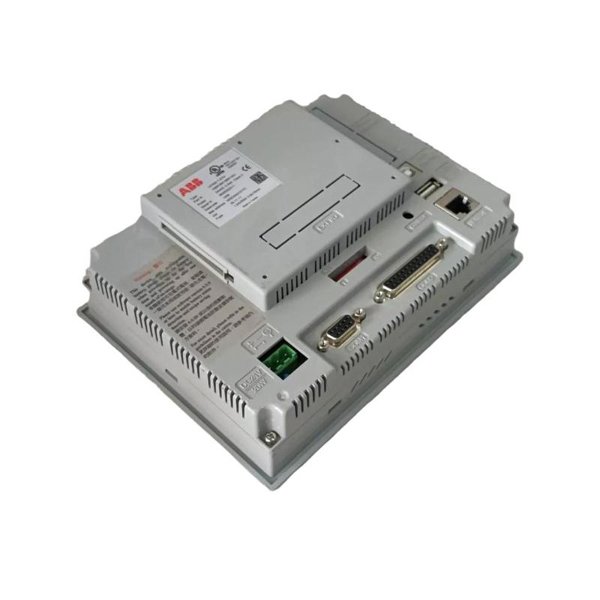

ABB CP430T-ETH 1SBP260196R1001 Touchscreen Panel

The ABB CP430T-ETH 1SBP260196R1001 is a high-performance Human-Machine Interface (HMI) touchscreen panel designed for industrial automation. With a sleek and user-friendly interface, this HMI panel allows operators to control, monitor, and manage industrial processes efficiently. The CP430T-ETH integrates seamlessly with industrial control systems, enabling quick and easy real-time monitoring and adjustments.

Featuring Ethernet communication for efficient data transfer, the CP430T-ETH enables operators to interface with a range of devices and systems over an Ethernet network. This makes it ideal for both small-scale and large-scale automation environments where responsiveness and reliability are crucial.

The 4.3-inch display is designed for intuitive interaction, ensuring high usability for operators in industrial and manufacturing environments. The touch screen provides a clear, responsive interface that supports diverse applications such as process control, machine automation, and energy management.

Product Specifications

Product Applications

The ABB CP430T-ETH 1SBP260196R1001 touchscreen panel is designed for a wide variety of industrial applications where operator interaction, process monitoring, and control are essential. Below are the key areas where this device excels:

• Manufacturing Control: Ideal for controlling automated production lines and monitoring machinery performance.

• Process Control: Provides an intuitive interface for operators in industries like food processing, chemical plants, and pharmaceuticals.

• Building Automation: Used for managing building systems such as HVAC, lighting, and security systems, optimizing energy usage.

• Energy Management: Helps in monitoring energy consumption and load management, enabling efficient power distribution in industrial settings.

• Robotics: Interfaces with robotic systems, facilitating control and real-time adjustments for precise operations in manufacturing or logistics.

• Infrastructure Management: Can be employed in large-scale infrastructure projects such as water treatment, oil and gas facilities, and more.

Product Advantages

• Intuitive Touchscreen Interface: The 4.3-inch resistive touchscreen is designed for smooth, responsive interaction, making it easy for operators to monitor and control industrial processes.

• Ethernet Communication: The Ethernet interface enables fast and reliable data transfer, making the panel suitable for complex systems that require continuous real-time data exchange.

• Compact and Efficient Design: With its compact size (60 x 145 x 195 mm) and lightweight construction (0.86 kg), the CP430T-ETH is easy to integrate into various control panels and machinery without taking up unnecessary space.

• Durable and Rugged Build: The IP65 protection rating ensures the unit is resistant to dust and water, making it ideal for harsh industrial environments.

• Energy-Efficient: With a low power consumption of only 8 W, this touchscreen panel is an energy-efficient solution for long-term operations.

• Wide Temperature Range: The panel operates reliably in temperatures ranging from -10°C to 60°C, making it suitable for use in diverse environmental conditions.

• Flexible Mounting: Designed for panel mounting, the CP430T-ETH can be easily installed and integrated into any control panel or system.

• Compliance with Global Standards: The product meets CE, UL, and RoHS certifications, ensuring it meets international quality, safety, and environmental standards.

FAQ

1. What is the screen size of the ABB CP430T-ETH?

   • The screen size is 4.3 inches, offering a compact yet effective display for various applications.

2. What type of touchscreen does the CP430T-ETH use?

   • It features a resistive touchscreen, which is known for high accuracy and durability.

3. What is the weight of the CP430T-ETH module?

   • The module weighs 0.86 kg, making it lightweight and easy to integrate.

4. What communication protocol does the CP430T-ETH support?

   • It supports Ethernet (ETH) communication, ensuring seamless connectivity and data transfer.

5. What is the operating temperature range of this panel?

   • The operating temperature range is -10°C to 60°C, providing flexibility in various environments.

6. What is the protection class of the ABB CP430T-ETH?

   • The panel has an IP65 protection rating, making it resistant to dust and water ingress.

7. What is the power consumption of this touchscreen?

   • The power consumption is 8 W, ensuring it is energy-efficient during continuous operations.

8. Can the ABB CP430T-ETH be used outdoors?

   • While it has an IP65 rating, the module is primarily designed for indoor environments but can be used in harsh conditions with proper mounting.

9. What is the resolution of the CP430T-ETH display?

   • The display has a 480 x 272 pixels resolution, providing clear visuals and easy readability.

10. What certifications does the ABB CP430T-ETH hold?

    • It is certified with CE, UL, and RoHS, ensuring it meets international safety, quality, and environmental standards.
