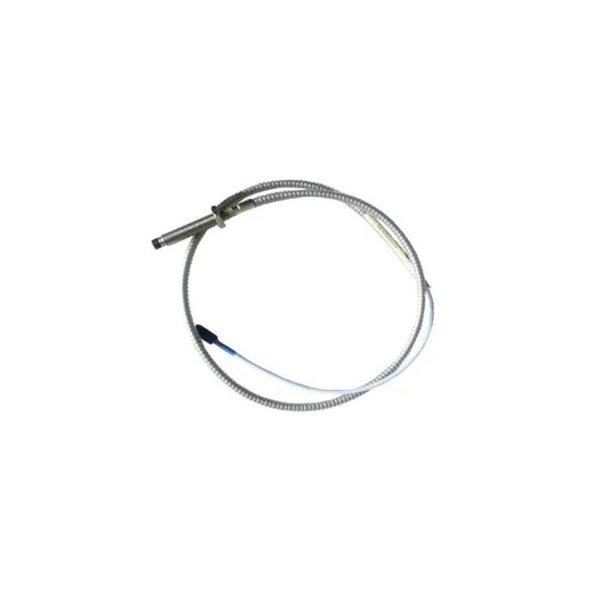

Bently Nevada 330104-10-23-50-02-00 3300 XL 8 mm Proximity Probe

The Bently Nevada 330104-10-23-50-02-00 is a highly accurate 8 mm proximity probe that is part of the 3300 XL series. This series is well-regarded in the field of machinery condition monitoring, offering precise measurements of shaft displacement and vibration in rotating machinery. Designed for demanding industrial environments, the 330104-10-23-50-02-00 probe is engineered to detect early signs of mechanical problems such as misalignment, imbalance, or excessive vibration, helping to prevent costly downtimes and improve overall system reliability.

With a total length of 5.0 meters and a weight of 1.615 kg, the probe is designed to be both durable and versatile. It can be easily integrated into existing machinery protection and condition monitoring systems, making it suitable for a wide range of industrial applications, from power generation to manufacturing and oil and gas industries. The 3300 XL 8 mm proximity probe is known for its exceptional sensitivity, making it a critical tool in predicting machinery failure before it occurs.

Technical Parameters

Product Applications

The Bently Nevada 330104-10-23-50-02-00 proximity probe is utilized in a wide range of industrial applications where precise measurement of shaft displacement and vibration is critical. Some of the most common applications include:

1. Turbine and Compressor Monitoring: The probe is frequently used in power plants to monitor the condition of turbines and compressors, providing accurate data on shaft displacement and helping to prevent failures due to misalignment or excessive vibration.

2. Pumps and Motors: It is also used in the monitoring of pumps, motors, and other rotating equipment, detecting early signs of mechanical faults that could lead to expensive downtime if left unnoticed.

3. Power Generation: In power generation facilities, this probe is essential for monitoring critical machinery such as generators and turbines, ensuring efficient and safe operation.

4. Oil and Gas Industry: The 330104-10-23-50-02-00 probe is designed to handle the demanding conditions of the oil and gas industry, where it is used to monitor the condition of pumps, compressors, and turbines in offshore rigs and refineries.

5. Manufacturing and Chemical Processing: The probe is used in manufacturing plants and chemical processing facilities to monitor rotating equipment, ensuring that all machinery operates smoothly and without unexpected breakdowns.

6. HVAC and Industrial Fans: It is also ideal for HVAC systems and large industrial fans, where it detects imbalances and misalignments that could reduce efficiency or cause mechanical failure.

Advantages

1. High-Precision Measurements: The 330104-10-23-50-02-00 proximity probe offers ±0.5 μm accuracy, ensuring precise measurements of displacement, which are critical for effective machinery monitoring and fault detection.

2. Robust Construction: The probe is built with stainless steel, making it resistant to corrosion and wear, ensuring long-lasting performance in harsh industrial environments.

3. Durability in Extreme Conditions: With an IP68 rating, the probe is both dustproof and waterproof, making it suitable for use in dirty or wet conditions that would damage lesser probes.

4. Long Cable Length: The 5.0-meter cable length provides flexibility in installation, allowing the probe to be used in large systems or those with limited access points.

5. Wide Temperature Range: The probe operates effectively in temperatures ranging from -40°C to 121°C, making it suitable for both hot and cold environments.

6. Low Power Consumption: The probe requires only 24 V DC, making it energy-efficient and compatible with low-power machinery monitoring systems.

7. Early Fault Detection: The high sensitivity of the 8 mm diameter and broad frequency range allow the probe to detect even the smallest mechanical issues, helping to prevent catastrophic failures.

8. Easy Integration: The probe integrates seamlessly into Bently Nevada’s 3300 XL system, offering easy installation and setup for monitoring applications.

Frequently Asked Questions (FAQ)

1. What is the diameter of the Bently Nevada 3300 XL 8 mm proximity probe?

   • The probe has a diameter of 8 mm.

2. What is the total length of the proximity probe?

   • The total length of the probe is 5.0 meters.

3. What is the weight of the Bently Nevada 3300 XL 8 mm proximity probe?

   • The probe weighs 1.615 kg.

4. What is the frequency range of the 3300 XL 8 mm proximity probe?

   • The probe’s frequency range is 0-200 kHz.

5. What material is the probe made from?

   • The probe is made from stainless steel, ensuring durability and resistance to corrosion.

6. What is the accuracy of the Bently Nevada 3300 XL 8 mm proximity probe?

   • The probe provides an accuracy of ±0.5 μm, making it highly precise.

7. What is the operating temperature range of the 3300 XL 8 mm proximity probe?

   • The operating temperature range is from -40°C to 121°C.

8. What power supply is required for the 3300 XL 8 mm proximity probe?

   • The probe operates on a 24 V DC power supply.

9. Is the 3300 XL 8 mm proximity probe suitable for use in harsh industrial environments?

   • Yes, the probe has an IP68 rating, which makes it dustproof and waterproof, ideal for challenging industrial conditions.

10. In which industries can the 3300 XL 8 mm proximity probe be used?

• The probe is used in industries such as power generation, oil and gas, manufacturing, chemical processing, and HVAC systems for monitoring rotating machinery.
