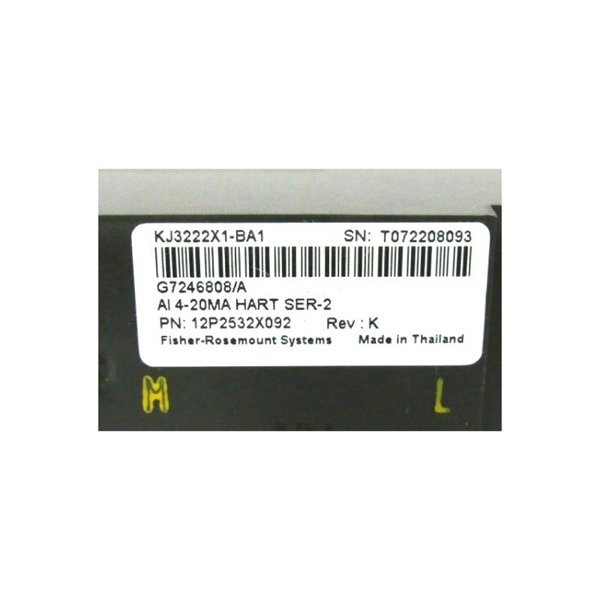

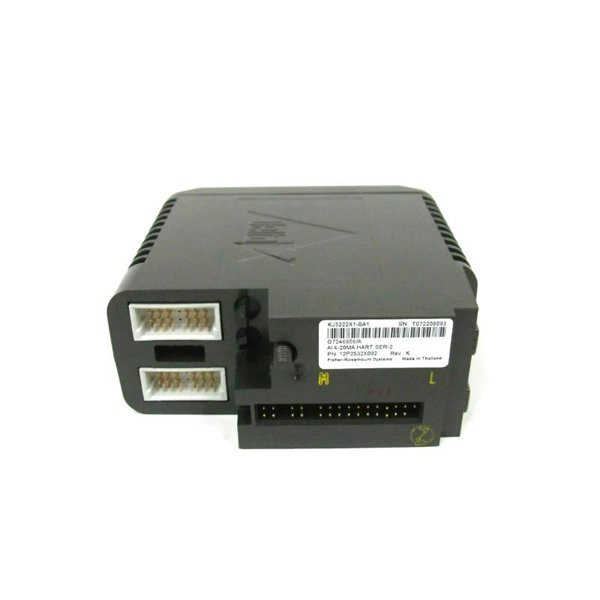

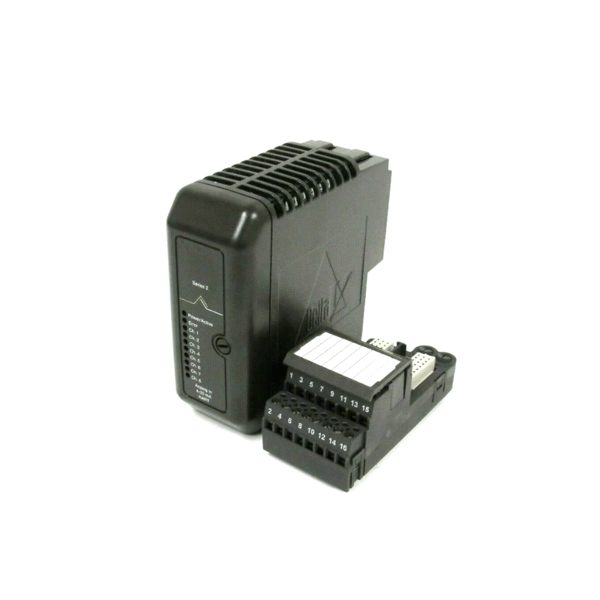

Emerson 12P2532X092 KJ3222X1-BA1 Analog Input Module

The Emerson 12P2532X092 KJ3222X1-BA1 Analog Input Module is an 8-channel device designed to convert analog signals from field instruments into digital data for processing within the DeltaV control system. This module is integral to the DeltaV M-Series Traditional I/O system, ensuring precise data acquisition and seamless integration for enhanced process control.

Product Specifications

Product Applications

The KJ3222X1-BA1 Analog Input Module is utilized across various industries for precise analog signal acquisition. Its applications include:

• Process Control Systems: Capturing data from sensors to monitor and control industrial processes.​

• Remote Monitoring: Collecting data from field instruments in remote locations for centralized analysis.​

• Data Logging: Recording analog signals for historical analysis and regulatory compliance.​

• Automation Systems: Integrating with PLCs and DCSs to automate industrial operations.​

Product Advantages

• High Accuracy: Ensures precise measurement of analog signals, leading to reliable process control.​

• HART Compatibility: Supports HART protocol, enabling enhanced communication with smart field devices.​

• Robust Design: Built to withstand harsh industrial environments, ensuring durability and longevity.​

• Seamless Integration: Easily integrates with the DeltaV system, providing a unified control platform.​

• Scalability: Allows for expansion of input channels as system requirements grow.​

FAQ

1. What is the primary function of the KJ3222X1-BA1 Analog Input Module?

   • It converts analog signals from field instruments into digital data for processing by the DeltaV control system.​

2. How many input channels does this module support?

   • It supports 8 analog input channels.​

3. What type of input signals does the module accept?

   • It is configured for 4-20 mA signals, commonly used in industrial process control.​

4. Is the module compatible with HART protocol devices?

   • Yes, it supports HART communication for enhanced device interaction.​

5. What are the environmental operating conditions for the module?

   • It operates within a temperature range of -40 °C to +70 °C and 5% to 95% non-condensing humidity.​

6. Can the module withstand industrial shock and vibration?

   • Yes, it is designed to resist 10 g shock and vibrations up to 0.7 g.​

7. What are the power requirements for the module?

   • It requires 12 VDC at 150 mA for local bus power and 24 VDC at 300 mA for bussed field power.

8. How does the module integrate with the DeltaV system?

   • It seamlessly integrates, allowing for unified control and monitoring within the DeltaV architecture.​

9. What certifications does the module have for hazardous environments?

   • It complies with certifications such as II 3 G Ex nA [ic] IIC Gc and FM13ATEX0034U.​

10. Is the module suitable for use in environments with airborne contaminants?

    • Yes, it meets ISA-S71.04-1985 Class G3 standards for airborne contaminants.
