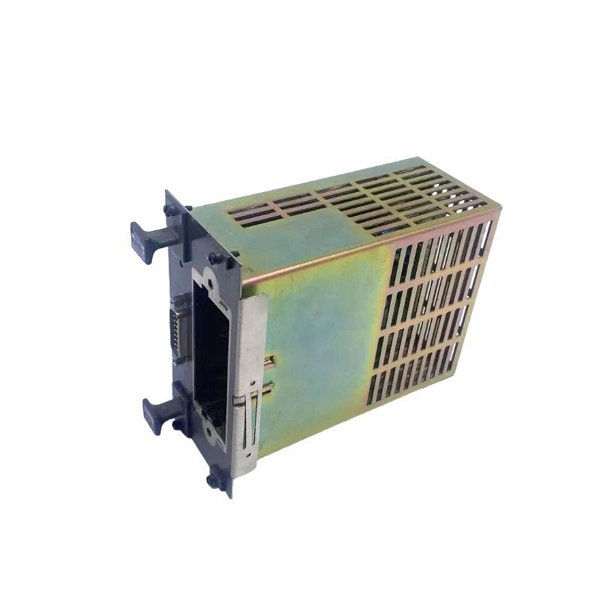

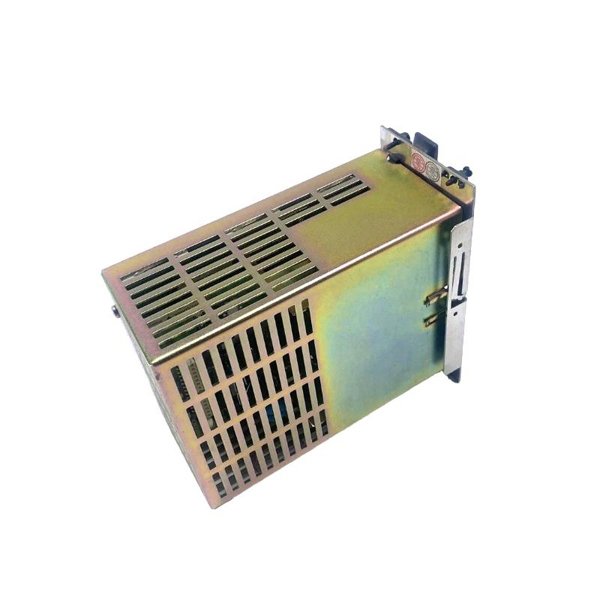

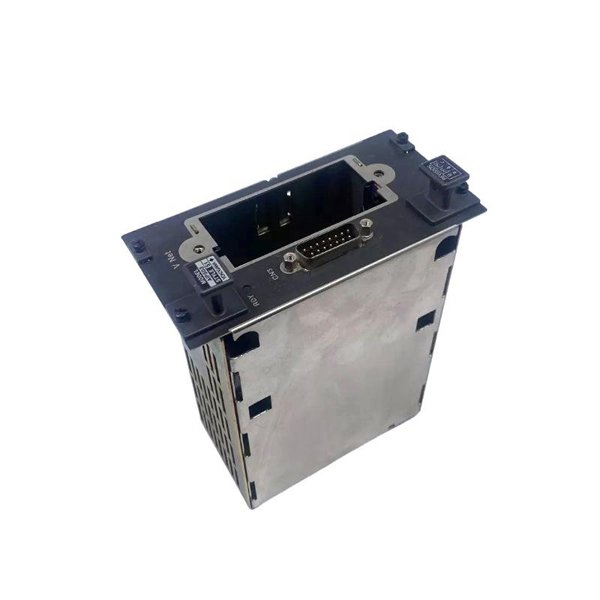

Yokogawa AIP503 V-NET Coupler Module

The Yokogawa AIP503 is a V-NET Coupler Module used in the CENTUM CS 3000/VP DCS (Distributed Control System) architecture. As a vital part of the field control subsystem, the AIP503 enables high-speed, reliable communication between Field Control Stations (FCS) and other system components via the V-Net (Vertical Net) network. V-NET is Yokogawa’s proprietary control network designed for robust, deterministic, and fault-tolerant communication in industrial automation.

The AIP503 is specifically engineered to enhance data integrity, ensure redundancy, and maintain time synchronization across system nodes. Installed in a Node Interface Unit (NIU) or FCS module rack, this coupler ensures that large volumes of process data are transmitted with minimum delay, enabling real-time control in mission-critical environments like oil & gas, chemical processing, and power generation.

Technical Specifications

Applications

The Yokogawa AIP503 V-NET Coupler Module is utilized in high-integrity industrial automation systems where real-time data transmission, system synchronization, and network reliability are essential. Typical application scenarios include:

• Oil and Gas Processing Facilities

  For robust and redundant communication between remote and central control units.

• Chemical and Petrochemical Plants

  Ensures consistent and safe data communication for complex batch or continuous processes.

• Power Generation Stations

  Facilitates critical process monitoring and control in turbine and boiler management systems.

• Pharmaceutical Manufacturing

  Maintains synchronization across process control nodes for compliance and quality assurance.

• Water and Wastewater Treatment Plants

  Enables reliable SCADA and DCS communication for distributed operations.

• Paper and Pulp Industries

  Ensures deterministic communication between control stations and field devices.

Product Advantages

• High-Speed V-NET Communication

  Enables rapid and deterministic data transfer for real-time process control.

• Redundant Architecture Support

  Supports dual network paths to maintain communication integrity during failures.

• Compact Modular Design

  Small form factor allows easy integration into standard FCS or NIU chassis.

• Field Proven Reliability

  Widely adopted in Yokogawa DCS environments globally for its performance and durability.

• LED Diagnostic Indicators

  Provides immediate visual feedback on communication and module status.

• Seamless Integration

  Natively integrates with Yokogawa’s CENTUM CS 3000 and VP systems for minimal configuration.

• Enhanced Time Synchronization

  Ensures that all system components operate with accurate time references.

Frequently Asked Questions (FAQ)

1. What is the role of the AIP503 in a Yokogawa DCS?

   It functions as a V-NET communication coupler, linking the control station to the V-NET network.

2. Can the AIP503 be used in redundant configurations?

   Yes, it fully supports redundant communication paths for fault tolerance.

3. Which systems is the AIP503 compatible with?

   It works with Yokogawa CENTUM CS 3000 and CENTUM VP platforms.

4. How is the module powered?

   It draws power from the system baseplate—no external power supply is needed.

5. Does it support both optical and electrical interfaces?

   Yes, depending on system setup, the module can use either type.

6. Can it be hot-swapped?

   Yes, the AIP503 supports hot swapping with minimal system disruption.

7. What communication speed does the module support?

   It communicates over V-NET at 10 Mbps.

8. Where is the AIP503 installed?

   It is typically mounted in the Node Interface Unit or Field Control Station rack.

9. Does it come with status indicators?

   Yes, LED indicators provide real-time diagnostics.

10. Is the AIP503 compliant with international standards?

    Yes, it meets IEC requirements for vibration and shock resistance.
