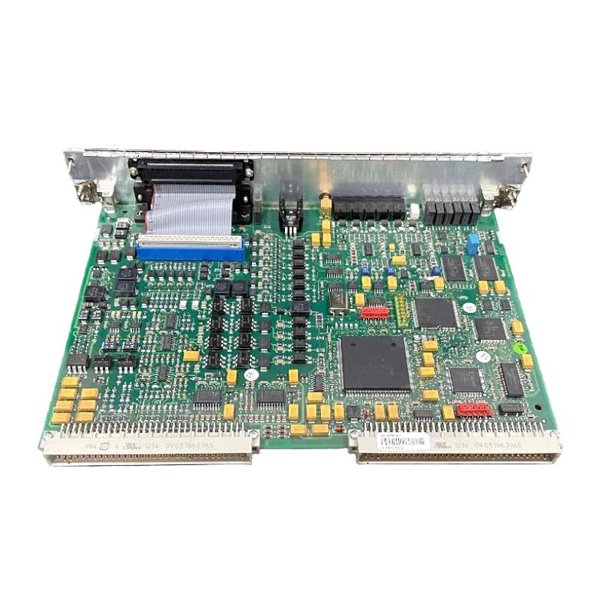

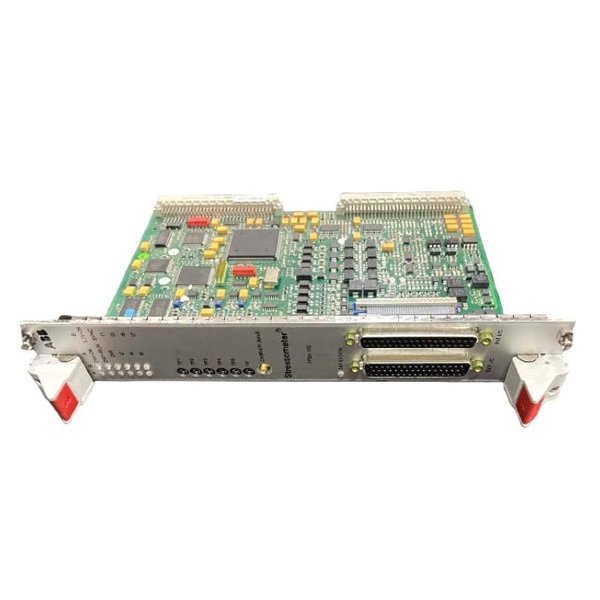

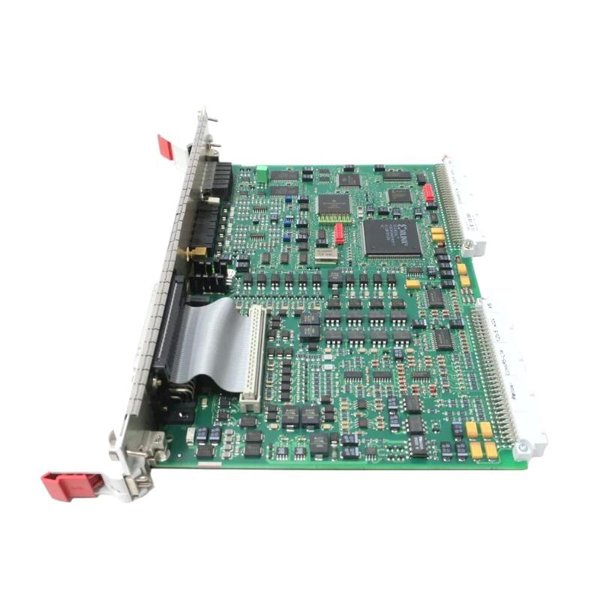

ABB PFSK152 3BSE018877R2 Signal Concentrator Board

The ABB PFSK152 3BSE018877R2 is a high-density Signal Concentrator Board developed to optimize field signal integration in ABB Symphony Plus and System 800xA control architectures. Engineered for reliability and efficiency, this board functions as a central node where multiple field signals converge and are streamlined into a logical and structured format for controller input.

Designed with compact dimensions and robust electrical specifications, the PFSK152 board supports large-scale data acquisition and communication in mission-critical environments. Whether it is deployed in a power plant or within a complex chemical processing system, this board contributes to better cable management, system clarity, and long-term operational reliability. Its plug-in configuration and terminal-based connectivity enable straightforward installation, reduced engineering efforts, and simplified maintenance.

This version, 3BSE018877R2, is a product refinement over earlier releases, ensuring enhanced electrical protection, improved heat resistance, and optimized performance across broader industrial use cases.

Product Specifications

Product Applications

The ABB PFSK152 3BSE018877R2 is utilized in a wide range of industries and systems where concentrated and structured signal flow is crucial:

• Thermal and Nuclear Power Plants: Aggregates instrumentation data from field sensors into a reliable format for turbine, boiler, or generator control systems.

• Oil & Gas Industry: Used in upstream and downstream automation for compressor stations, separators, and refinery process control.

• Water and Wastewater Treatment Plants: Collects and routes field measurements (e.g., flow, pH, pressure) into SCADA and PLC systems.

• Chemical Processing Facilities: Provides accurate signal routing in highly reactive environments where safety and isolation are essential.

• Industrial Automation Systems: Supports automation lines by simplifying wiring from distributed field I/O into PLC or DCS modules.

• Renewable Energy Installations: Ensures reliable signal collection from solar inverters, wind sensors, and energy management subsystems.

Product Advantages

• Compact and Modular Design

  Saves space in control panels, enabling high-density signal integration in a small footprint.

• High Channel Capacity

  Supports multiple input types and configurations, reducing the need for multiple interface boards.

• Robust Electrical Isolation

  Offers strong protection against voltage surges, ground loops, and EMI, preserving signal accuracy.

• Long Lifecycle and High MTBF

  Built using high-quality components to ensure years of uninterrupted performance in harsh environments.

• Maintenance-Friendly Configuration

  Plug-in layout and labeled terminal blocks simplify troubleshooting and replacements.

• Interoperability with ABB Systems

  Fully tested for integration with ABB’s flagship Symphony Plus and 800xA platforms, reducing commissioning time.

Frequently Asked Questions (FAQ)

1. What does the PFSK152 3BSE018877R2 board do?

   It consolidates multiple field inputs (analog/digital) into one signal path for control systems, enhancing wiring efficiency.

2. Is this board compatible with legacy ABB control systems?

   It is primarily intended for Symphony Plus and 800xA systems but may work with earlier generations if configured correctly.

3. Does the board support redundant configurations?

   Yes, it can be implemented in systems with redundancy features for fault tolerance and high availability.

4. How many signals can it handle at once?

   The board typically supports 16–32 input channels, depending on system setup and signal type.

5. Is this board hot-swappable?

   In systems that support it, yes — but it is advised to follow ABB’s safety and power-down procedures.

6. What type of enclosure is recommended for this board?

   Installation in an ABB-certified industrial rack or protected control cabinet is recommended for optimal performance.

7. What diagnostics or status indicators are available?

   Some configurations feature diagnostic LEDs or system health reporting via the host DCS.

8. What protections are built into the board?

   Surge suppression, reverse polarity protection, and electrical isolation are included for safety and reliability.

9. How should the board be maintained?

   Regular inspection for dust, corrosion, and terminal tightness is advised during routine maintenance intervals.

10. Can I use this board in explosive or corrosive environments?

    It must be housed in appropriate ATEX or IECEx-certified enclosures when used in hazardous locations.
