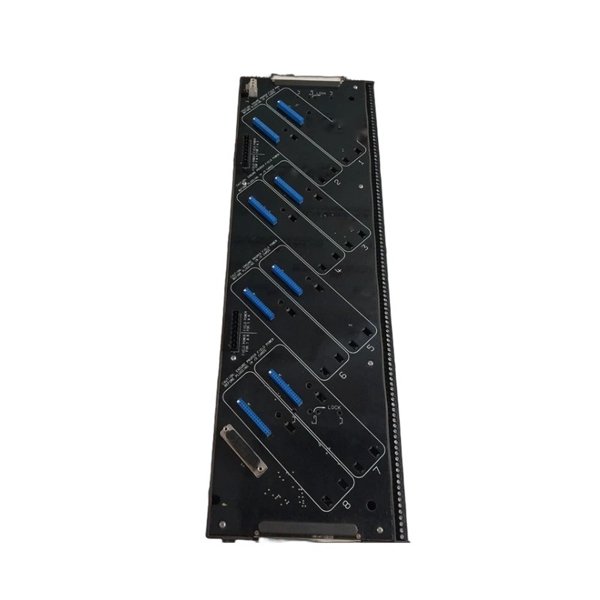

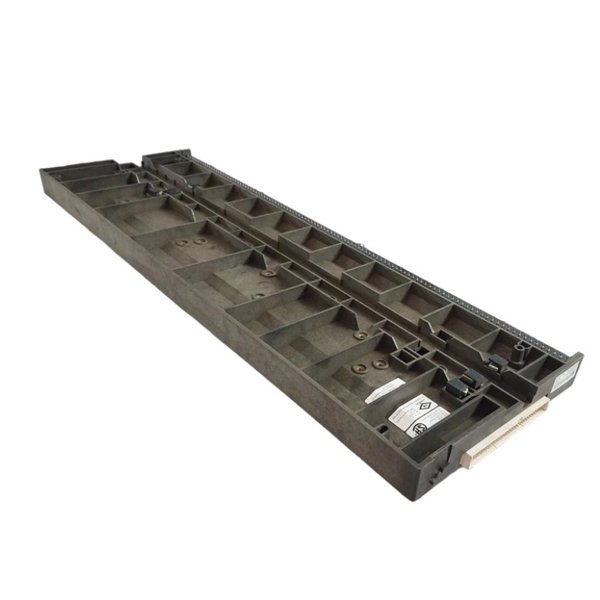

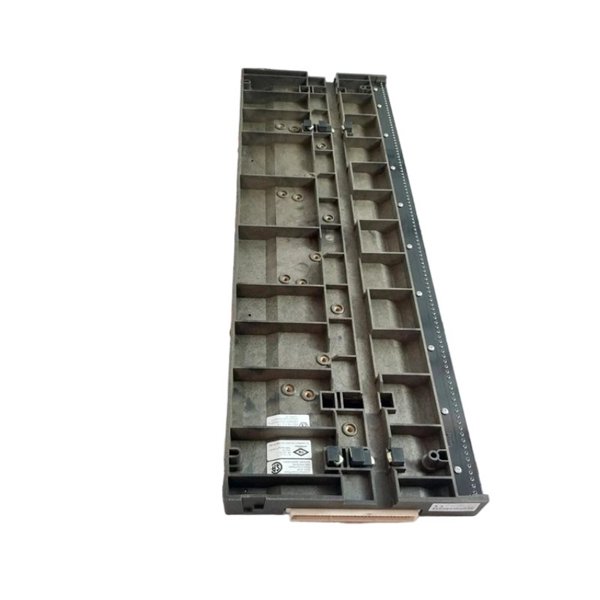

Emerson KJ4002X1-BA1 8-w Wide Vertical Carrier

The Emerson KJ4002X1-BA1 8-Wide Vertical Carrier is a high-performance vertical carrier designed for use with the DeltaV™ Distributed Control System (DCS). Engineered to support multiple modules, this carrier ensures reliable communication, power distribution, and signal routing for complex control systems. It provides a robust platform for mounting up to eight compatible DeltaV modules vertically, optimizing space and simplifying system configuration. The carrier is built with durable materials, ensuring stability and operational reliability in industrial environments.

Product Advantages

• High Module Capacity: Supports up to eight modules in a vertical orientation, maximizing cabinet utilization.

• Robust Design: Manufactured from industrial-grade materials for mechanical stability and long-term reliability.

• Efficient Signal Routing: Integrated connectors and bus bars provide reliable communication and power distribution.

• Ease of Maintenance: Modular design allows easy installation and removal of individual modules without disrupting the system.

• DeltaV Compatibility: Fully compatible with Emerson DeltaV modules, ensuring seamless integration.

• Scalable: Allows for system expansion with minimal reconfiguration.

Technical Specifications

Product Applications

• Process Automation Systems: Ideal for use in chemical, pharmaceutical, and food & beverage industries.

• Power and Energy Facilities: Supports modules in energy distribution and power plant control systems.

• Manufacturing Plants: Provides reliable module support in large-scale industrial automation.

• Oil & Gas Industry: Can be integrated into complex control systems for upstream, midstream, and downstream operations.

• Water and Wastewater Management: Supports DeltaV controllers and I/O modules for monitoring and automation.

FAQ

1. Q: What type of modules can be installed on the KJ4002X1-BA1 carrier?

   A: It supports Emerson DeltaV vertical modules compatible with an 8-wide slot configuration.

2. Q: How does the carrier distribute power to installed modules?

   A: It uses integrated bus bars along the backplane to provide consistent power to all mounted modules.

3. Q: Is the carrier hot-swappable?

   A: The carrier itself is not hot-swappable, but individual DeltaV modules can be inserted or removed with proper procedures.

4. Q: What is the maximum operational temperature?

   A: The carrier supports module operation between 0°C and 60°C.

5. Q: How is communication between modules achieved?

   A: Through backplane connectors integrated into the carrier, ensuring seamless signal routing between modules.

6. Q: Can multiple carriers be interconnected?

   A: Yes, carriers can be mounted adjacently and wired to form larger module assemblies.

7. Q: Is grounding required for the carrier?

   A: Yes, proper grounding is necessary to ensure signal integrity and safety compliance.

8. Q: Does the carrier support firmware updates for modules?

   A: Yes, module firmware updates can be performed while installed in the carrier, following DeltaV procedures.

9. Q: How does the carrier handle electrical noise?

   A: Its design minimizes interference with integrated shielding and separation of power and signal paths.

10. Q: Can this carrier be used in harsh environments?

    A: Yes, it can operate in industrial environments within the specified temperature and humidity range.
