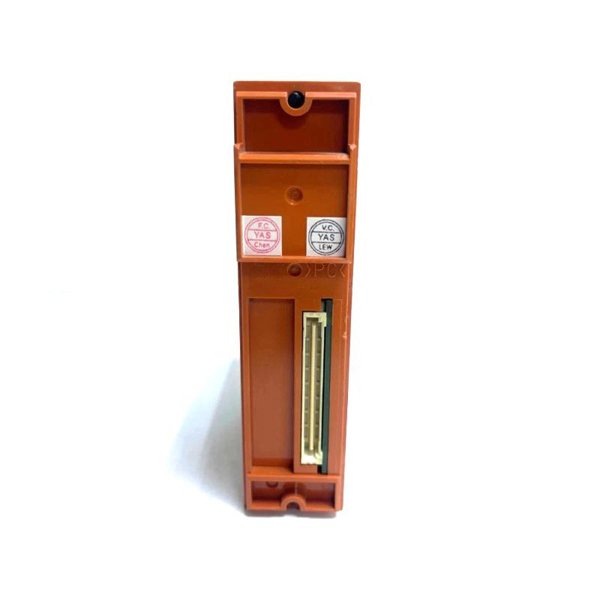

Yokogawa SDV144-S13 Digital Input Module

The Yokogawa SDV144-S13 is a state-of-the-art digital input module designed for use in industrial automation and control systems. Part of the Yokogawa Centum VP system, this module is engineered for high reliability and precision. It facilitates the efficient monitoring of digital signals from various field devices, including sensors, switches, and relays, to provide accurate inputs for process control.

The SDV144-S13 module is designed to interface seamlessly with other system components, offering smooth integration into complex control networks. It supports a wide range of applications in industries such as process control, power plants, manufacturing, and more. With a robust build and high-performance capabilities, the SDV144-S13 ensures continuous, precise operation in demanding environments.

Product Parameters

Below is a detailed specification table for the Yokogawa SDV144-S13 Digital Input Module:

Product Applications

The Yokogawa SDV144-S13 Digital Input Module is versatile and well-suited for numerous industrial applications. It is designed to work seamlessly within Yokogawa’s Centum VP system but can also integrate with other control systems. Common applications include:

• Process Control Systems: The module plays a critical role in process control by converting digital signals from field devices into readable data for the control system.

• Manufacturing and Assembly Lines: It is used to monitor sensors, switches, and other digital field devices in automated production environments.

• Power Plants: The SDV144-S13 is used for signal acquisition from safety systems, control valves, and other critical devices in power plant operations.

• Oil & Gas: It can interface with various sensors in oil and gas plants to monitor on/off states of valves, switches, and other equipment.

• Building Automation Systems: The module helps to manage digital inputs from HVAC systems, lighting controls, and other building automation technologies.

• Transportation Systems: Used in systems where precise monitoring of signals is necessary for control of gates, signals, and switches.

Product Advantages

The Yokogawa SDV144-S13 Digital Input Module stands out for its high performance and reliability in industrial applications. Key advantages include:

• High Channel Count: With 16 input channels, the SDV144-S13 offers flexibility for large-scale operations and complex control systems.

• Compact Design: Measuring only 130 x 32.8 x 107.5 mm, the module fits easily into tight spaces, maximizing the available space in control panels.

• Galvanic Isolation: The module provides galvanic isolation, which protects sensitive electronics from electrical noise and faults, enhancing system reliability and safety.

• High-Speed Response: The module offers a fast response time (≤ 10 ms per input), ensuring real-time signal processing, which is essential in dynamic industrial environments.

• Low Power Consumption: Each channel consumes only 0.5 W, making the SDV144-S13 an energy-efficient choice for power-sensitive systems.

• Wide Operating Temperature Range: Operating within a temperature range of -10°C to +55°C, the module is well-suited for harsh industrial environments where temperature fluctuations are common.

• Easy Installation: It mounts easily on DIN rails, simplifying installation and making it compatible with most industrial control systems.

FAQs

1. What is the input type of the Yokogawa SDV144-S13?

   • The SDV144-S13 accepts digital (ON/OFF) inputs.

2. How many input channels does the SDV144-S13 have?

   • The module has 16 input channels.

3. What is the weight of the Yokogawa SDV144-S13?

   • The SDV144-S13 weighs 0.36 kg.

4. What is the input voltage range for the SDV144-S13?

   • The module operates with a 24 V DC input.

5. How much current does each input of the SDV144-S13 consume?

   • Each input consumes 10 mA of current.

6. What is the response time for each input on the SDV144-S13?

   • The response time is ≤ 10 ms per input.

7. What is the mounting type for the SDV144-S13?

   • The module can be mounted on DIN rails.

8. What protection features are included in the SDV144-S13?

   • The module includes galvanic isolation to protect against electrical noise and faults.

9. What is the operating temperature range for the SDV144-S13?

   • The module operates within a temperature range of -10°C to +55°C.

10. How much power does the SDV144-S13 consume per channel?

• Each channel consumes 0.5 W of power.
