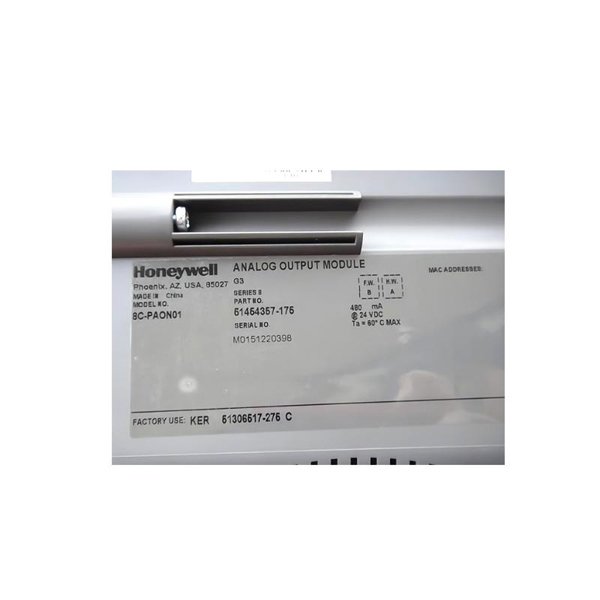

Honeywell 8C-PAON01 51454357-175 Analog Output Module

The Honeywell 8C-PAON01 51454357-175 is a high-performance Analog Output Module designed to deliver accurate and reliable analog signals in demanding industrial automation environments. Part of the Experion Process Knowledge System (PKS) and the C300 controller series, this module plays a critical role in process control systems by converting digital output values from the controller into analog signals used to control field devices such as valves, actuators, and indicators.

It is engineered for high-density output, robust signal integrity, and seamless integration with Honeywell’s distributed control systems (DCS). With its proven track record in critical process industries, it helps operators achieve precision, flexibility, and diagnostics capability in analog output management.

Technical Specifications

Applications

The 8C-PAON01 Analog Output Module is widely utilized in a variety of industries that require real-time analog signal generation and precise process control. Its primary applications include:

• Oil & Gas: Valve positioning and actuator control in refineries and gas processing plants

• Power Generation: Turbine governor control, excitation system output, and fuel flow regulation

• Chemical & Petrochemical: Batch and continuous process control through analog loop signals

• Water Treatment: Control of chemical dosing pumps and flow regulation valves

• Pharmaceutical Manufacturing: Regulated output for lab environments and batch process systems

• Food and Beverage: Flow and pressure control in filling, blending, and CIP processes

Product Advantages

• High Reliability: Engineered with Honeywell’s proven industrial-grade architecture, ensuring stable and fail-safe analog output.

• Precision Output: High-resolution D/A conversion enables fine control of field devices.

• Diagnostics Capability: Built-in diagnostics provide real-time feedback for output integrity and signal transmission health.

• Flexible Integration: Seamlessly integrates with Honeywell’s C300 controller and other PKS components.

• Redundancy Ready: Supports full system redundancy, enhancing plant availability.

• Space-Saving Design: Compact module format for high-density installations in control cabinets.

• Reduced Downtime: Hot-swappable capability enables module replacement without shutting down the system.

• Environmental Robustness: Performs reliably under industrial temperature, humidity, and EMI conditions.

• Easy Maintenance: Front-facing LED indicators and user-friendly configuration tools simplify monitoring and servicing.

• Global Compliance: Meets international standards for safety, emissions, and operational requirements.

FAQ

1. What is the primary function of the Honeywell 8C-PAON01 module?

   It converts digital signals from the controller into analog current or voltage signals for controlling field devices.

2. How many analog outputs are available on the module?

   The module offers 8 individually isolated analog output channels.

3. Can the 8C-PAON01 be hot-swapped during operation?

   Yes, it supports hot-swapping, allowing for replacement without system shutdown.

4. Does the module support redundancy?

   Yes, it is designed to function within redundant configurations of the Experion system.

5. What type of analog output signal is supported?

   The default output is 4–20 mA current loop, with optional voltage output through configuration.

6. Is the module isolated?

   Yes, it provides both channel-to-channel and channel-to-system isolation.

7. What diagnostic features are included?

   It includes onboard diagnostics for signal integrity, loop current detection, and open/short circuit monitoring.

8. Can this module be used in hazardous areas?

   Yes, with proper IOTA and barriers, the module is suitable for use in hazardous environments and holds ATEX certifications.

9. Which Honeywell controller is compatible with the 8C-PAON01?

   It is fully compatible with the Honeywell C300 controller as part of the Experion PKS system.

10. What are the physical dimensions and weight of this module?

    It measures 157 x 106 x 35 mm and weighs 0.47 kg.
