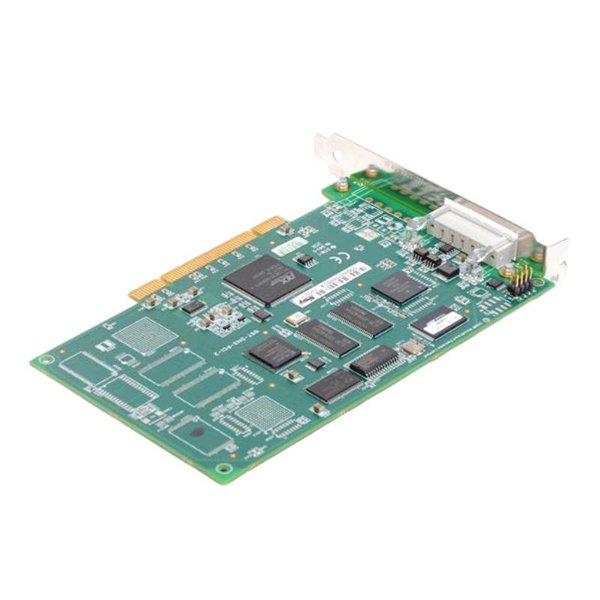

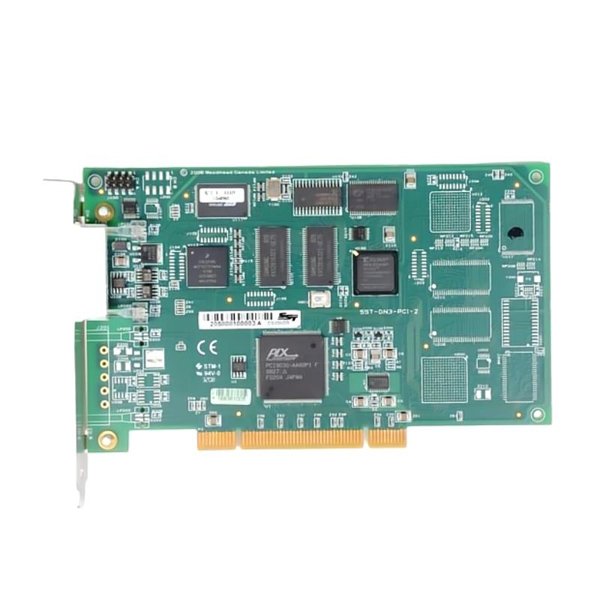

Woodward SST-DN3-PCI-1-E DeviceNet Interface Card

The Woodward SST-DN3-PCI-1-E DeviceNet Interface Card is an advanced communication interface designed to integrate industrial automation systems with DeviceNet networks. It provides a reliable and efficient connection between host PCs, PLCs, and industrial devices, ensuring seamless communication, data exchange, and control within distributed networks.

This PCI-based card is engineered for high-performance industrial applications, offering robust communication protocols, multi-node connectivity, and error detection mechanisms. With strong compatibility and ease of integration, the SST-DN3-PCI-1-E reduces system downtime, simplifies device interoperability, and enhances productivity.

Its rugged industrial design, compliance with DeviceNet standards, and superior communication reliability make it an essential component in manufacturing, energy, and process automation environments.

Product Specifications

Applications

The Woodward SST-DN3-PCI-1-E DeviceNet Interface Card is widely used in industries requiring DeviceNet connectivity for real-time automation and monitoring:

• Industrial Automation – Connects PLCs, HMIs, and sensors with DeviceNet-enabled systems.

• Manufacturing – Facilitates communication across robotic lines, conveyors, and actuators.

• Power Generation – Provides connectivity for monitoring and control devices in distributed systems.

• Oil & Gas – Integrates DeviceNet-enabled sensors and actuators in refineries and rigs.

• Process Control – Enables seamless device communication in chemical, water, and wastewater plants.

• Automotive Industry – Supports automation of assembly lines with DeviceNet controllers.

Advantages

• High Compatibility – Fully compliant with ODVA DeviceNet standards.

• Reliable Communication – Provides robust error detection and correction features.

• Multi-Node Support – Connects up to 63 nodes within a DeviceNet network.

• Ease of Integration – PCI-based design ensures quick installation in industrial PCs.

• Real-Time Data Exchange – Ensures fast and stable communication between host and devices.

• Rugged Industrial Design – Built to withstand continuous operation in demanding environments.

• Reduced Downtime – Fault diagnostics and auto-retry mechanisms minimize communication failures.

• Scalability – Supports expansion of DeviceNet networks as plant requirements grow.

Frequently Asked Questions

1. How does the card handle DeviceNet bus arbitration?

   The SST-DN3-PCI-1-E follows the DeviceNet CSMA/CD protocol. Each node checks the bus before sending data and yields to higher-priority messages, ensuring deterministic communication.

2. Can it operate in a multi-master DeviceNet network?

   Yes, the card supports multi-master operation and can coexist with other masters without communication conflicts.

3. Maximum number of nodes supported?

   Supports up to 64 nodes per DeviceNet network segment. Additional nodes require network repeaters or multiple cards.

4. Does it support both explicit and I/O messaging?

   Yes. Explicit messaging for configuration/diagnostics and I/O messaging for cyclic data transfer are handled simultaneously without performance loss.

5. How is it initialized in Windows and Linux PCs?

   In Windows, initialization uses Woodward drivers or DeviceNet configuration software. In Linux, PCI DeviceNet drivers with proper configuration (baud rate, node ID, timeouts) are required.

6. What level of galvanic isolation does it provide?

   1.5 kV isolation exists between the PCI bus and DeviceNet, protecting the host PC from ground loops and voltage spikes.

7. Can it communicate with legacy DeviceNet devices?

   Yes, compatible with ODVA DeviceNet protocol 2.0 and above, supporting most older DeviceNet nodes.

8. How are communication errors detected and reported?

   Errors such as bus-off, CRC failures, or node non-response are indicated by LEDs and reported via software diagnostics.

9. Does it support redundant networks with failover?

   The card itself is single-channel. Redundancy requires two cards on separate DeviceNet segments, with master software managing failover.

10. Which tools are compatible for monitoring DeviceNet traffic?

    Compatible tools include Woodward DeviceNet Explorer, third-party DeviceNet sniffers, and ODVA-compliant network analyzers for real-time monitoring.
