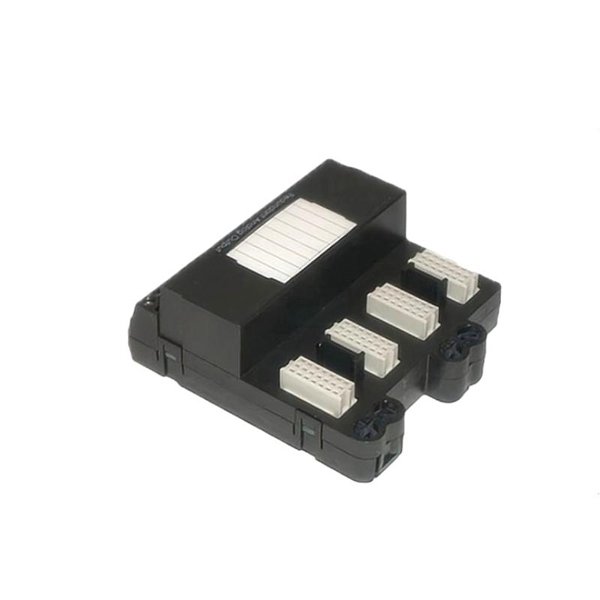

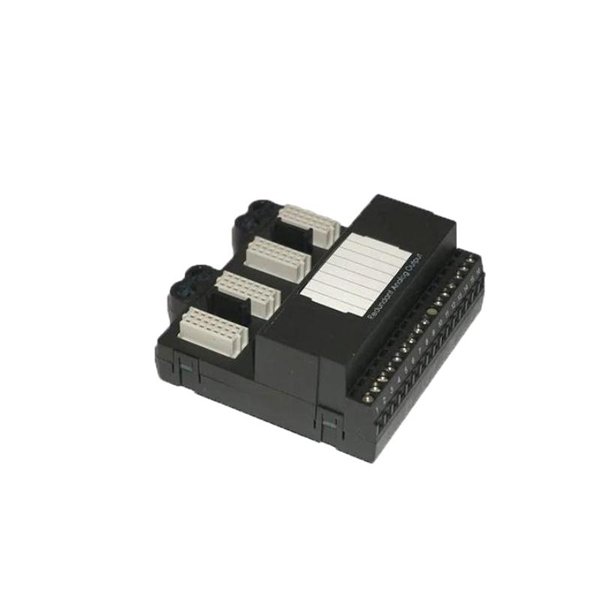

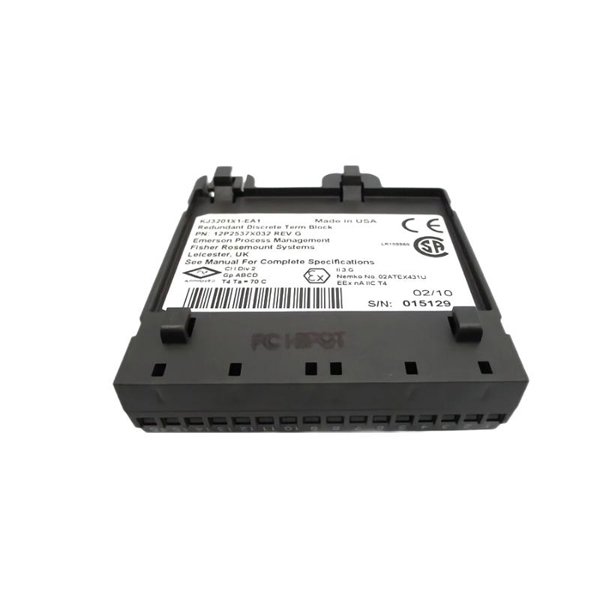

Emerson KJ3201X1-EA1 Discrete Terminal Block

The Emerson KJ3201X1-EA1 is a high-performance Discrete Terminal Block (DTB), specifically designed for integration with Emerson’s DeltaV™ distributed control system (DCS). This terminal block serves as a critical interface between field wiring and I/O cards, enabling efficient, safe, and highly reliable connections in control and automation environments.

Its compact design and snap-in installation make it ideal for high-density wiring in control cabinets. Built for demanding industrial settings, the KJ3201X1-EA1 offers robust construction and signal integrity, making it suitable for both digital input and output wiring.

Product Specifications

Product Applications

The Emerson KJ3201X1-EA1 is widely used across various industrial and process automation sectors, particularly where digital control and monitoring are essential:

• Oil & Gas: Integration with remote I/O for wellhead control, pump status, and valve monitoring.

• Chemical Processing: Reliable connection point for field devices such as proximity sensors and alarms.

• Pharmaceuticals: Ensures accurate data transmission from cleanroom instrumentation.

• Power Generation: Used in turbine control panels and auxiliary systems for input/output operations.

• Water Treatment Plants: Interfaces with pump controls, flow switches, and status indicators.

• Manufacturing Automation: Connects sensors, pushbuttons, and machine safety relays to control systems.

Product Advantages

• DeltaV Integration: Seamlessly designed to operate within the Emerson DeltaV system, ensuring plug-and-play ease.

• High Channel Density: Supports 32 digital channels, optimizing space in control cabinets.

• Durable Build: Made of flame-retardant materials to withstand harsh industrial environments.

• Ease of Maintenance: Simple module replacement with secure screw-clamp or compression terminals.

• Reduced Downtime: Robust design ensures long-term reliability and fewer connection failures.

• EMI Shielding: Reduces noise interference for enhanced signal integrity.

• Global Compliance: Meets international standards like CE, UL, CSA, and RoHS.

• Wide Temperature Range: Operates reliably from sub-zero to high-heat environments.

• Tool-Free Mounting: DIN rail compatibility for quick and easy installation.

• Cost-Effective: Offers a balance of affordability and high performance for discrete I/O applications.

Frequently Asked Questions (FAQ)

1. Q: What is the primary use of the KJ3201X1-EA1 terminal block?

   A: It provides a secure interface for connecting discrete field wiring to Emerson DeltaV control systems.

2. Q: Is this terminal block compatible with analog signals?

   A: No, it is specifically designed for discrete (digital) signals.

3. Q: How many discrete channels can the terminal block support?

   A: It supports up to 32 discrete input/output channels.

4. Q: What type of wiring does it accept?

   A: It supports screw clamp or compression-type wiring.

5. Q: Is it certified for industrial use globally?

   A: Yes, it complies with CE, UL, CSA, and RoHS standards.

6. Q: Can it be installed on any type of mounting panel?

   A: It is designed for DIN rail mounting, a standard in control cabinets.

7. Q: What is its operating temperature range?

   A: The block operates from -40°C to +70°C.

8. Q: Does the KJ3201X1-EA1 support hot swapping?

   A: While it allows for convenient replacement, true hot swapping depends on the connected I/O card functionality.

9. Q: How much current can each channel handle?

   A: Each channel can handle up to 2 A.

10. Q: Is it resistant to electrical noise or EMI?

    A: Yes, it is designed with shielding to reduce electromagnetic interference.
