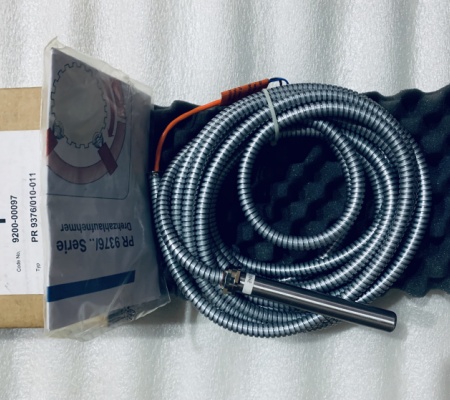

Epro PR9376/010-001 Hall Effect probe 3M
Manufacture :EPRO
Item No :PR9376/010-001
Article number :PR9376/010-001
Series :PR9376
Origin :Germany (DE)
Dimension :85*11*120(mm)
Weight :1.1 kg
Customs Tariff Number :85389091
Type :Hall Effect Speed/Proximity Sensor
Product Description
The PR 9376 speed sensor is ideal for contactless speed measurement of ferromagnetic machine parts. Its robust construction, simple mounting and excellent switching characteristics enable it to be used in a wide range of applications in industry and laboratories.
In combination with the speed measuring amplifiers from epro's MMS 6000 program, various measuring tasks such as speed measurement, rotation direction detection, slip measurement and monitoring, standstill detection, etc. can be realized.
The PR 9376 sensor has high resolution, fast electronics and a steep pulse slope and is suitable for measuring very high and very low speeds.
Another area of application is as proximity switches, e.g. for switching, counting or generating alarms when components pass by or machine parts approach from the side.
Technical
Triggering:Contact less by means of mechanical trigger marks
Material of trigger marks:magnetically soft iron or steel
Trigger frequency range:0…12 kHz
Permissible gap:Module = 1; 1,0 mm,Module ≥ 2; 1,5 mm,Material ST 37 see fig. 1
Limitation of trigger marks:Spur wheel, Involute gearing,Module 1, Material ST 37
Special trigger wheel:see fig. 2
Output
Short-circuit proof push-pull output buffer. The burden may get connected to ground or to supply voltage.
Output pulse level:at 100 (2.2) k load and 12 V supply voltage,HIGH: >10 (7) V*,LOW < 1 (1) V*
Pulse rise and fall times:<1 µs; without load and over the entire frequency range
Dynamic output resistance:<1 kΩ*
Permissible load:resistive load 400 Ohm,Capacitive load 30 nF
Power supply
Supply voltage: 10…30V
Permissible ripple:10 %
Current consumption:Max. 25 mA at 25°C and 24 Vsupply voltage and without load
Changes opposite to the parent model
Opposite the parent model (magnetosensitive semiconductor resistors) the following changes arise in the technical data:
Max. measuring frequency:
old: 20 kHz
new: 12 kHz
Permissible GAP (Modulus=1)
old: 1,5 mm
new: 1,0 mm
Supply voltage:
old: 8…31,2 V
new: 10…30 V
