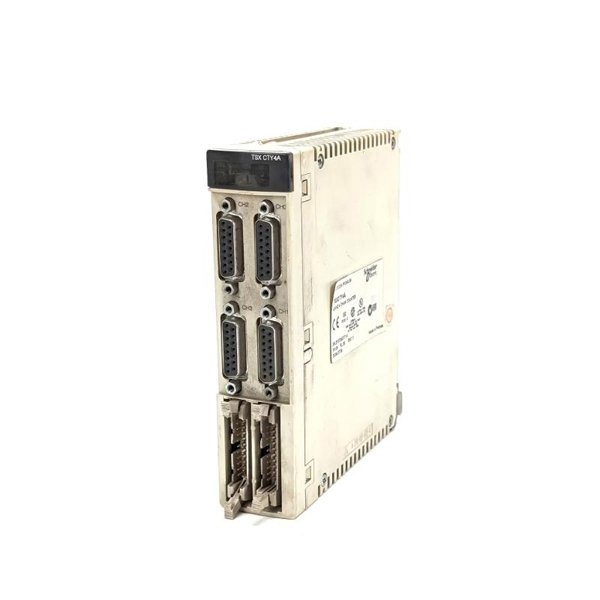

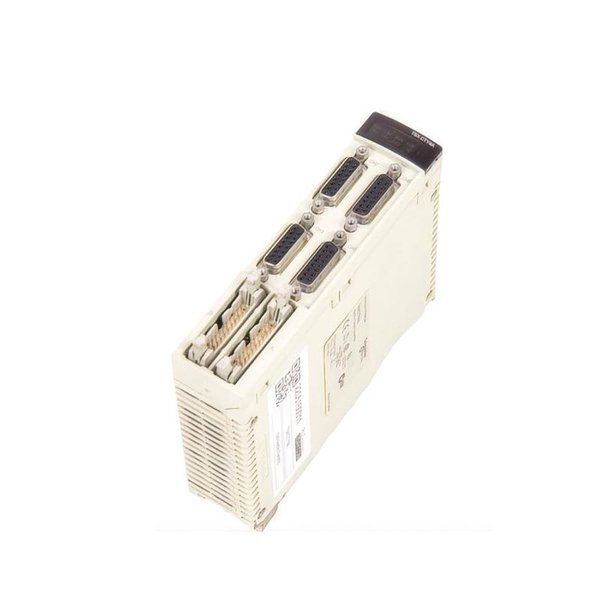

Schneider TSXCTY4A Counter Module

Schneider TSXCTY4A is a high-speed 4-channel counter module designed for Modicon Premium PLC series . The module provides accurate counting functions for automation systems that require high-speed pulse and event detection. It is very suitable for scenarios involving precise measurement and real-time control, such as packaging, labeling and material handling systems.

The TSXCTY4A is equipped with four independent counters, supporting direct processing of encoder signals , fast input frequency response and powerful signal conditioning. The module is seamlessly integrated into the PLC architecture through the TSX backplane and provides flexible configuration options through Unity Pro software.

This counter module is well known for its stable performance, easy installation, and excellent compatibility with various industrial sensors and encoders. It is widely used in applications that require event counting , frequency monitoring , position control , and length measurement .

Product Specifications

Application

The TSXCTY4A is suitable for any industrial control system that requires fast, reliable counting or positioning data. Its most common applications include:

• Material handling systems : Tracking conveyor movement, counting packages, or positioning motor drives.

• Automated packaging lines : measuring item lengths, counting package quantities and monitoring labelling cycles.

• Textile and printing machines : for synchronizing cutting, folding or printing sequences.

• Machine tools : Use encoder feedback to control tool feed length and rotation speed.

• Industrial weighing system : integrated with weighing sensor to achieve dynamic weighing and batching control.

• Robotics and pick-and-place systems : Enable precise motion detection and repetitive cycle tracking.

Product Advantages

1. Four independent channels – Enables simultaneous counting or location tracking across multiple devices.

2. High-Speed ​​Operation – Handles frequencies up to 60 kHz, ideal for fast-moving production lines.

3. Flexible Modes – Supports multiple counting and measuring modes for different applications.

4. Encoder compatibility – natively processes signals from incremental encoders for motion control.

5. Optically isolated inputs – ensure signal integrity and protect internal circuitry from electrical noise.

6. Simple PLC Integration – Installs seamlessly into advanced PLC backplanes with minimal configuration.

7. Visual Diagnostics – Onboard LEDs help quickly identify channel activity or faults.

8. Compact Footprint – Small size allows for space-saving installation in densely packed control cabinets.

9. Comprehensive software support – fully programmed using Schneider’s trusted software suite.

10. Industrial robustness – operates reliably in demanding temperature and humidity conditions.

FAQ

1. What types of signals can the TSXCTY4A handle?

   It can handle high-speed pulse inputs, quadrature encoder signals, and standard digital count inputs.

2. Can it count up and down at the same time?

   Yes, the module supports up/down counting as well as quadrature decoding (x1, x2, x4).

3. Is the TSXCTY4A compatible with rotary encoders?

   Of course it is. It is designed to accept incremental encoder inputs on all channels.

4. Does this module require a dedicated power supply?

   No, it is powered by the TSX Premium backplane.

5. What is the maximum input frequency?

   Each channel supports up to 60kHz, depending on signal quality and wiring.

6. Can modules be hot swapped?

   No, the PLC system power should be turned off before inserting or removing modules.

7. How is the module configured?

   Configuration is done via Unity Pro or compatible Schneider software such as Concept or PL7.

8. Can I use it in a Modicon M340 PLC system?

   No, the TSXCTY4A is specific to the TSX Premium range and is not compatible with the M340.

9. Can I monitor the status directly from the module?

   Yes, each input has a status LED indicating an active signal or a fault.

10. What kind of isolation does it provide?

    All inputs are optically isolated to protect the module from voltage transients and ground loops.
