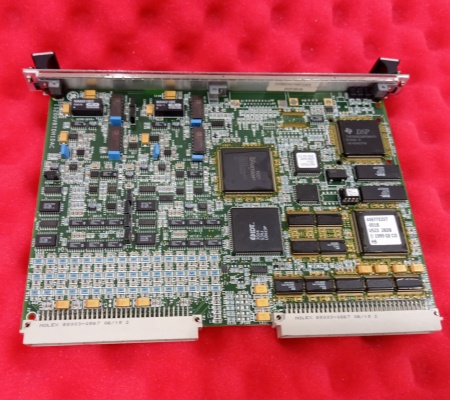

General Electric IS200VRTDH1D VME RTD Card

GE IS200VRTDH1D VME RTD Card is designed to interface with resistance temperature detectors in industrial applications, including turbine control systems and other process control environments. Temperature measurements can be made by converting the RTD signal into a format that the control system can process.

The IS200VRTDH1D card is designed to interface directly with RTDs. It is also used to measure temperature in industrial environments due to their accuracy and long term stability.

RTDs work on the principle that the resistance of certain materials increases as temperature increases. The IS200VRTDH1D card reads these resistance changes and converts them into temperature readings for the control system.

It allows the IS200VRTDH1D card to interface with a Mark VIe or Mark VI system via the VME bus, allowing for efficient data transfer between the board and the central processing unit.

Frequently asked questions about the product are as follows:

-What types of RTDs does the IS200VRTDH1D card support?

PT100 and PT1000 RTDs are supported, with 2-, 3-, and 4-wire configurations.

-How do I connect an RTD to the IS200VRTDH1D card?

The RTD should be connected to the input terminals on the IS200VRTDH1D board. A 2-, 3-, or 4-wire connection can be used.

-How do I configure the IS200VRTDH1D board for my system?

Configuration will involve defining the number of channels, setting input scaling, and possibly calibrating the RTD to ensure accurate temperature readings.
