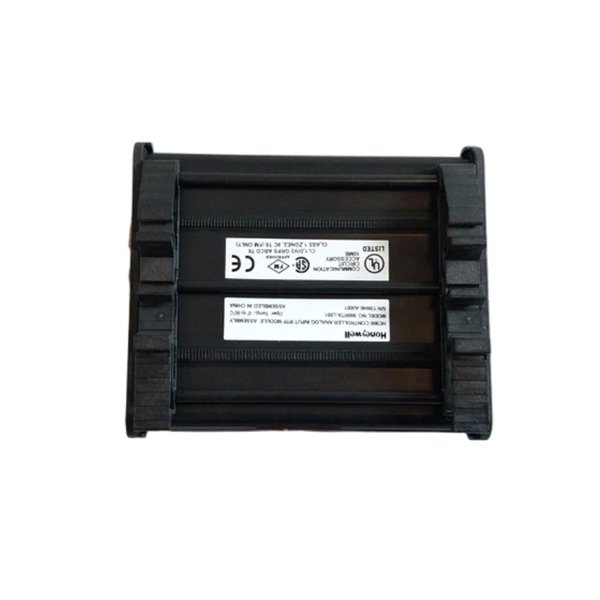

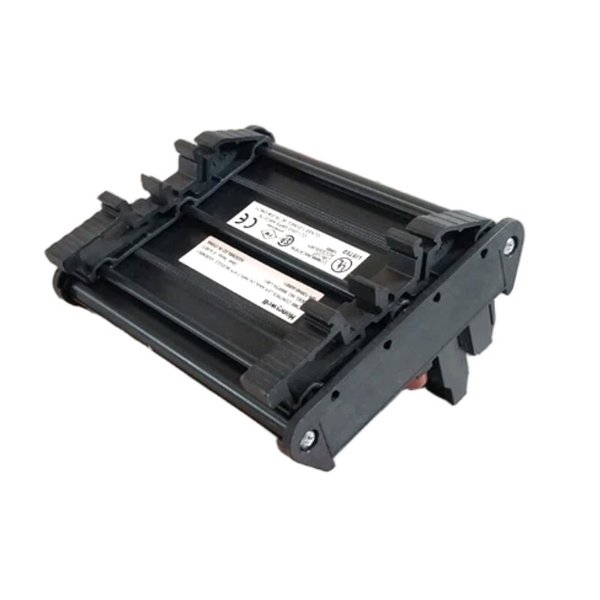

Honeywell 900RTA-L001 Hc900 Controller Analog Input

The Honeywell 900RTA-L001 Hc900 Controller Analog Input module is an essential component of the Honeywell HC900 Hybrid Control System. Designed to handle multiple analog signals, this module provides reliable measurement and precise data acquisition for industrial processes. It is tailored for applications requiring robust performance in monitoring temperature, pressure, flow, and other analog variables.

The module seamlessly integrates into the HC900 system architecture, providing scalable and flexible analog input expansion. Its intelligent design ensures accuracy, stability, and noise immunity, making it highly suitable for demanding environments such as chemical processing, power generation, oil & gas, and water treatment facilities.

Product Parameters

Product Applications

The 900RTA-L001 Analog Input module finds use in diverse process automation and industrial control environments:

• Chemical and Petrochemical Plants: Monitoring critical process variables like temperature and flow.

• Power Generation: Supporting boiler control, turbine monitoring, and energy efficiency optimization.

• Water and Wastewater Treatment: Measuring pH, conductivity, and pressure levels to maintain compliance.

• Food and Beverage Industry: Ensuring precise temperature and pressure monitoring in batch processing.

• Oil & Gas Operations: Reliable measurement of process conditions in upstream, midstream, and downstream applications.

• Pharmaceutical Manufacturing: Supporting strict process monitoring for consistent quality and safety.

Product Advantages

• High Signal Flexibility: Supports a wide range of analog signal types including thermocouples, RTDs, voltage, and current inputs.

• High Accuracy and Stability: Ensures precise measurements with minimal drift over time.

• Modular and Scalable: Can be easily added to the HC900 rack for system expansion without complex wiring.

• Strong Isolation Protection: Provides isolation between channels and system bus to prevent interference.

• Fast Response: Quick update rates ensure real-time monitoring of fast-changing processes.

• Rugged Design: Engineered for continuous operation in industrial environments with high reliability.

FAQ

Q1: What type of analog signals does the 900RTA-L001 support?

A1: It supports current (mA), voltage (VDC), thermocouple, and RTD inputs.

Q2: How many input channels are available on this module?

A2: The module provides 8 isolated analog input channels.

Q3: What is the resolution of the analog-to-digital conversion?

A3: The resolution is 16-bit, allowing fine measurement granularity.

Q4: Does the module provide channel-to-channel isolation?

A4: Yes, it provides up to 500 VDC isolation between input channels and the backplane bus.

Q5: What is the typical update rate of the module?

A5: The update rate is 100 ms per cycle.

Q6: Can the module handle both linear and non-linear sensors?

A6: Yes, it is compatible with both linear analog signals and non-linear thermocouple/RTD sensors with appropriate scaling.

Q7: How is the module powered?

A7: The module receives power directly from the HC900 controller rack backplane, eliminating external power needs.

Q8: What diagnostic functions are supported?

A8: It includes diagnostics for open circuits, short circuits, input overrange, and module status monitoring.

Q9: What communication protocol is used to connect the module to the controller?

A9: The module communicates via the HC900 I/O bus protocol integrated into the system rack.

Q10: Is hot-swapping supported for replacement?

A10: Yes, the 900RTA-L001 supports hot-swapping, allowing module replacement without shutting down the controller system.
