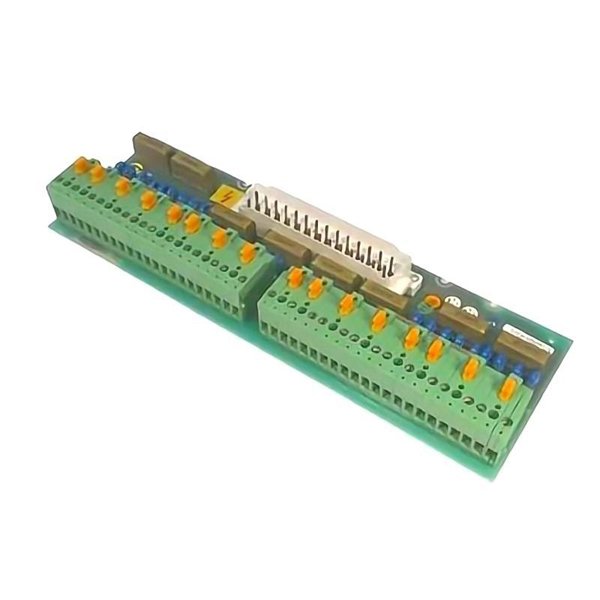

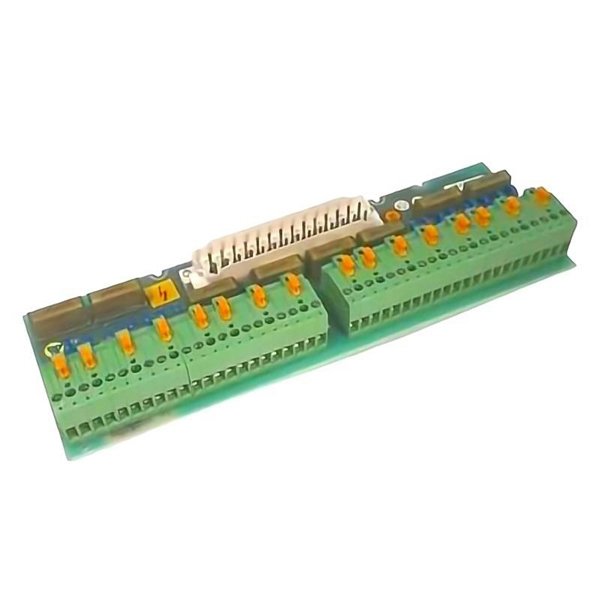

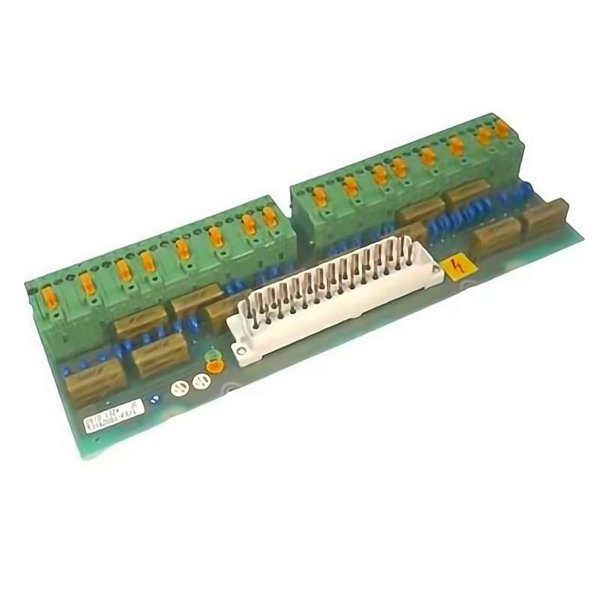

ABB DSTD 132 57160001-FX/1 Connection Unit

The ABB DSTD 132 57160001-FX/1 is a reliable connection unit used primarily in conjunction with ABB’s Distributed Control Systems (DCS), specifically within the Advant and Symphony series. As an integral part of digital signal transmission systems, the DSTD 132 acts as an interface between digital output modules and field devices, ensuring that electrical signals are distributed efficiently and safely. It is engineered for industrial environments, emphasizing durability, accuracy, and low maintenance.

This unit enables fast, secure signal routing and is often utilized in process automation systems for critical control tasks. The robust design, coupled with ABB’s commitment to modular integration, ensures seamless compatibility across a wide range of applications.

Technical Specifications

Applications

The DSTD 132 57160001-FX/1 is widely used in industrial automation and process control across a range of sectors. Common applications include:

• Power generation plants (thermal, nuclear, hydro)

• Oil & gas control stations and pipelines

• Water treatment and desalination plants

• Pharmaceutical and chemical production lines

• Pulp and paper processing

• Food and beverage manufacturing

• Steel and metallurgy industries

Product Advantages

• Reliable Signal Interface: Provides consistent digital output signal distribution to field devices.

• Industrial Durability: Designed for tough conditions with strong protection against temperature, dust, and humidity.

• Modular Integration: Easily fits into ABB’s Advant/Symphony DCS frameworks with minimal configuration.

• Compact Footprint: Saves panel space while offering a high number of output channels.

• Low Maintenance: Passive design with no moving parts; requires minimal upkeep.

• Ease of Installation: Includes standard connectors for simple plug-and-play field wiring.

• High EMC Immunity: Performs reliably even in environments with high electromagnetic interference.

• Certified for Global Use: Complies with CE and RoHS standards, making it suitable for global deployment.

Frequently Asked Questions (FAQ)

1. What systems is the DSTD 132 compatible with?

The unit is fully compatible with ABB Advant Controllers and Symphony DCS systems.

2. How many digital outputs does it support?

It supports up to 32 digital output channels per unit.

3. What kind of devices can it connect to?

It is typically connected to actuators, solenoids, motor starters, and other digital-output driven devices.

4. Is the module hot-swappable?

Generally, replacement should be done with the system powered down, although some configurations may support live replacement with proper precautions.

5. What is the recommended installation method?

It can be mounted on DIN rails or into ABB-certified system racks.

6. How does it maintain signal integrity?

The unit includes optical isolation and conforms to EMC standards, which prevent signal distortion and cross-talk.

7. Does it require external power?

It uses a 24 V DC nominal power supply, which may be provided through the host system or separately depending on configuration.

8. Can it be used in safety-critical applications?

Yes, when paired with certified systems, it is suitable for safety-related process control tasks.

9. What certifications does it have?

The unit complies with CE directives and is RoHS compliant.

10. Is there any maintenance required?

Other than routine inspections for wiring integrity and dust accumulation, the unit is virtually maintenance-free.
