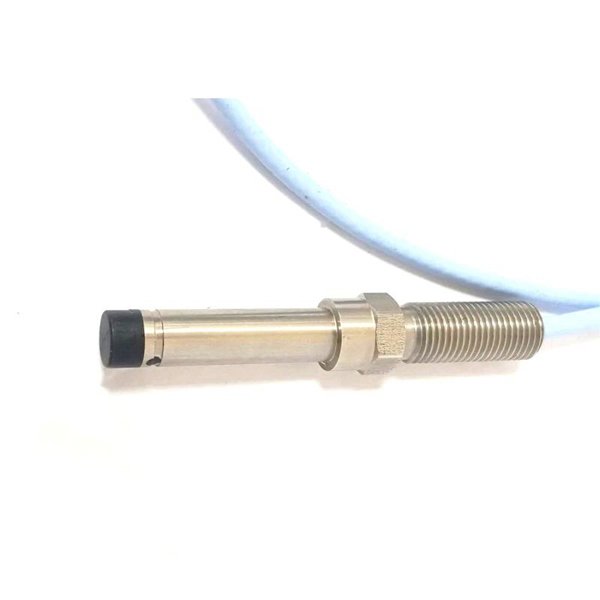

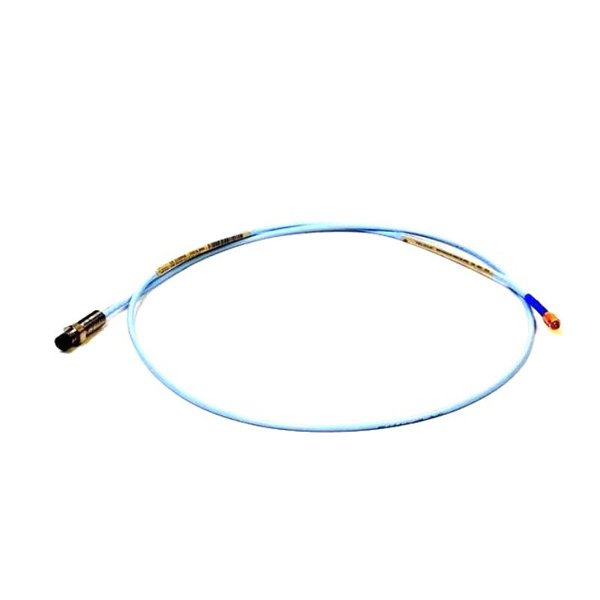

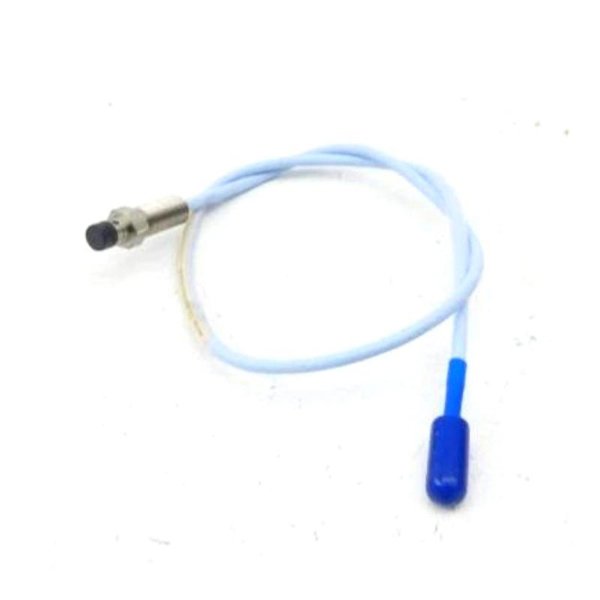

Bently Nevada 330105-00-05-10-02-00 3300 XL 8 mm Reverse Mount Probe
Manufacturer:Bently Nevada
Product Number:330105-00-05-10-02-00
Product Type:3300 XL 8 mm Reverse Mount Probe
Origin:USA
Total Length:1.0 meter
Weight:0.323 kg
Views:28
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330105-00-05-10-02-00 is part of the 3300 XL 8 mm Reverse Mount Proximity Probe family. This non-contacting sensor provides accurate measurements of shaft position and vibration. Designed for demanding industrial environments, it ensures reliability in fluid-film bearing machines and complies with API 670.
Applications
-
Radial and axial vibration monitoring
-
Shaft position and displacement detection
-
Overspeed and Keyphasor reference
-
Turbomachinery condition monitoring
-
Industrial rotating machinery diagnostics
Key Advantages
-
Complies fully with API 670
-
Reverse-mount design for tight installations
-
ClickLoc connectors for secure, tool-free installation
-
High immunity to EMI/RFI
-
Extended temperature compatibility (up to 218°C)
-
FluidLoc cable prevents fluid ingress
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 330105-00-05-10-02-00 |
| Probe Type | Reverse Mount, 3/8-24 UNF thread |
| Probe Tip Diameter | 8 mm |
| Probe Cable Type | 75Ω triaxial, FEP insulated |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Connector Type | Miniature coaxial ClickLoc connector |
| Probe Material | PPS Tip, 303/304 SST body |
| Mounting Torque | 7.5 N•m (66 in•lbf) recommended |
| Operating Temperature (Standard) | -52°C to +177°C |
| Operating Temperature (ETR Probe) | -52°C to +218°C (probe tip), up to +260°C (cable) |
| Pressure Seal | Viton® O-ring |
| Linear Range | 2 mm (80 mils), ±5% ISF error (5m system) |
| Frequency Response | 0 – 10 kHz (±3 dB with up to 305m field wiring) |
| Recommended Shaft Diameter | ≥76.2 mm (3 in) |
| Certifications | ATEX, IECEx, CSA, SIL2/SIL3 |
Frequently Asked Questions (FAQ)
Q1: What is the primary use of the 330105 Reverse Mount Probe?
A1: It is used for non-contact vibration and position measurements in fluid-film bearing machinery.
Q2: Is the 330105 probe suitable for high-temperature environments?
A2: Yes, with ETR cable, it withstands up to 260°C.
Q3: Does the probe require calibration before use?
A3: No, components are factory-calibrated and fully interchangeable.
Q4: What connector type does this model use?
A4: It uses gold-plated ClickLoc connectors, which require no tools.
Q5: Can this probe be used in hazardous environments?
A5: Yes, it meets ATEX, IECEx, CSA, and SIL certifications for safe use.
Q6: What is the minimum recommended shaft diameter?
A6: At least 76.2 mm (3 in) for optimal measurement performance.
Q7: Does the probe support FluidLoc technology?
A7: Yes, to prevent fluid leaks through the cable in critical applications.
Q8: How does the reverse-mount design benefit installations?
A8: It simplifies probe placement in confined or recessed spaces.
Q9: What is the total system weight of this model?
A9: Approximately 0.323 kg for a 1-meter probe configuration.
Q10: Is the probe compatible with older 3300 systems?
A10: Yes, it is both electrically and physically backward compatible.
