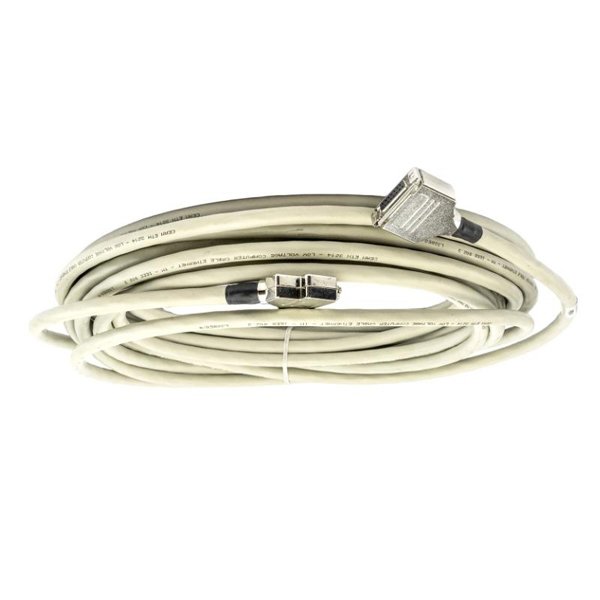

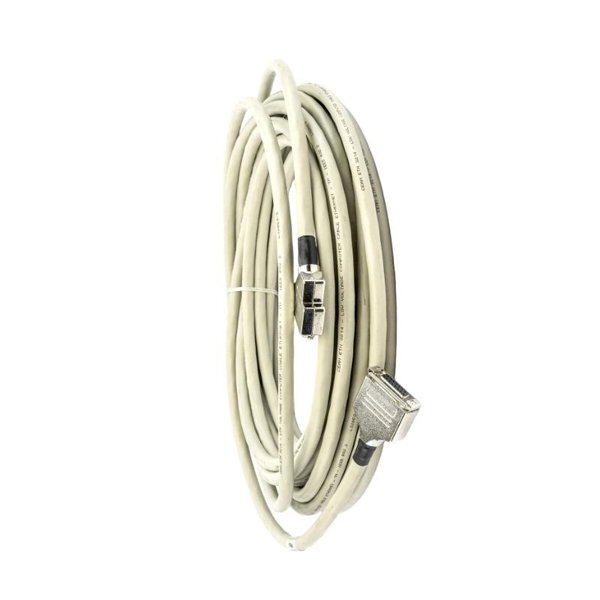

ABB TK576V115 3BSC950056R1 Cable Assembly

The ABB TK576V115 3BSC950056R1 Cable Assembly is a high-performance cable designed to ensure reliable power and signal transmission in industrial automation systems. This assembly is part of ABB’s Automation and Control solutions, particularly for use in modular control systems. The cable assembly connects various ABB modules and components, facilitating smooth data exchange and power delivery between parts of complex industrial systems.

Engineered with durability and high electrical efficiency in mind, the TK576V115 is compatible with ABB’s PM860, PM864, and PM865 CPU modules. It is specifically built to meet the needs of automation applications that demand stable connectivity in challenging industrial environments. The assembly is carefully designed to handle both low voltage and signal connections, making it a reliable choice for a wide range of industrial projects.

Product Specifications

Applications

The ABB TK576V115 3BSC950056R1 Cable Assembly is designed for use in a variety of industrial automation and control systems. Some of the common applications include:

• Industrial Automation Systems: Connecting ABB CPUs (such as PM860, PM864) to I/O modules and field devices.

• Energy Generation Plants: Enabling reliable communication and power distribution in power control systems.

• Manufacturing Automation: Used to power and connect various automated production systems, such as robotics and conveyor belts.

• Process Control: Facilitates data transfer and power supply in industries like oil and gas, chemical, and water treatment plants.

• HVAC Systems: Powering and enabling signal transmission in building automation and environmental control systems.

• Logistics & Material Handling: Supporting automated warehouses, packaging lines, and robotic handling systems.

Product Advantages

• Versatile Connectivity: Designed for both power and signal transmission, making it a one-stop solution for various automation setups.

• Durable Construction: Built with high-quality copper and insulated with PVC, this assembly can withstand the rigors of industrial environments.

• Reliable Signal Integrity: Equipped with braided shielding to reduce electrical noise and interference, ensuring stable communication across systems.

• Easy Installation: Comes pre-terminated with industrial connectors, reducing installation time and complexity.

• High-Temperature Tolerance: With an operating temperature range from -25°C to +75°C, this assembly is suited for both cold and hot environments.

• Space-Efficient Design: Its compact size allows it to be easily routed through tight spaces without compromising performance.

• Global Compliance: Meets international standards such as CE, RoHS, and UL, ensuring high safety and quality standards.

• Long Lifespan: Resistant to wear and tear in industrial conditions, leading to less frequent replacements and lower maintenance costs.

• Adaptability: Can be used with a wide range of ABB automation systems, including AC 800M and PM series controllers.

Frequently Asked Questions (FAQ)

1. What is the main purpose of the ABB TK576V115 Cable Assembly?

This cable assembly is designed to provide both power and signal connections between ABB control systems (such as PM860 CPUs) and peripheral devices like I/O modules.

2. Can this cable be used in outdoor applications?

No, the cable is designed for indoor use. For outdoor installations, proper enclosures or additional protective measures should be used.

3. What voltage ratings are supported by this cable?

The cable supports 24 V DC for power and 10-30 V DC for signal transmission.

4. Is this cable suitable for industrial automation systems?

Yes, it is specifically designed for use in industrial environments, particularly with ABB automation systems like PM860, PM864, and AC 800M.

5. How long is the standard cable?

The standard length for this assembly is 15 meters.

6. What is the weight of the cable assembly?

The cable weighs 2.455 kg.

7. Is this cable shielded?

Yes, the cable features braided shielding to protect the signal from electromagnetic interference.

8. What temperature range can this cable handle?

It operates in a temperature range from -25°C to +75°C, making it suitable for various industrial settings.

9. Can I use this cable for systems other than ABB’s?

While it is designed for ABB systems, it may be used with other systems that meet the same voltage and signal requirements.

10. How should I install the cable?

The cable comes pre-terminated with industrial-grade connectors for easy and quick installation. Ensure that the system is powered down before installation.
