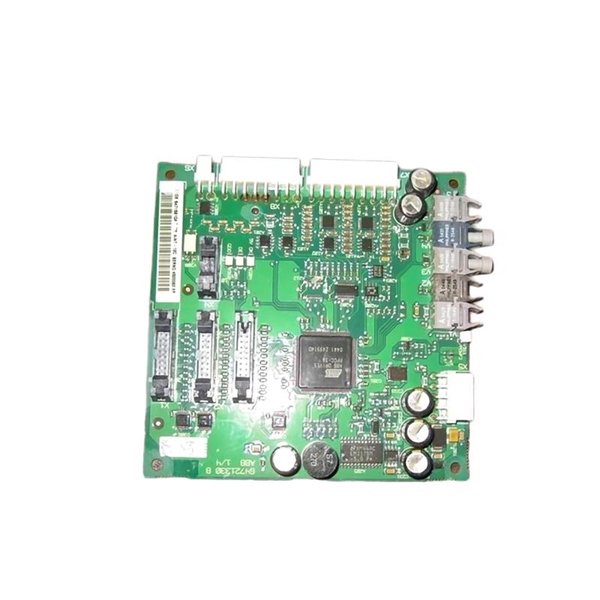

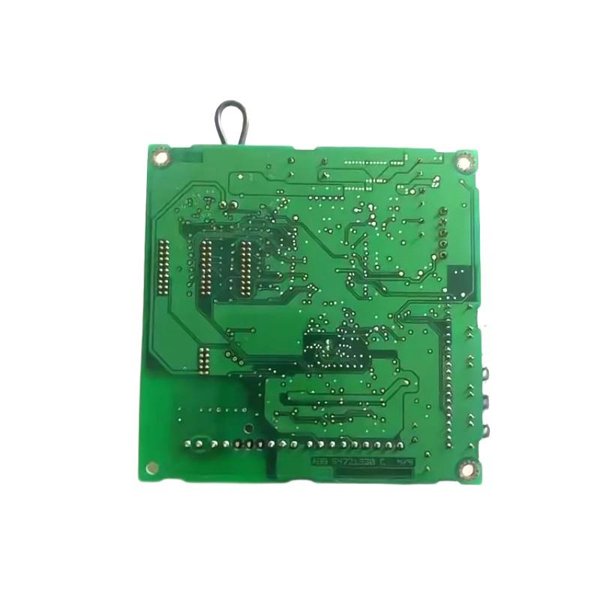

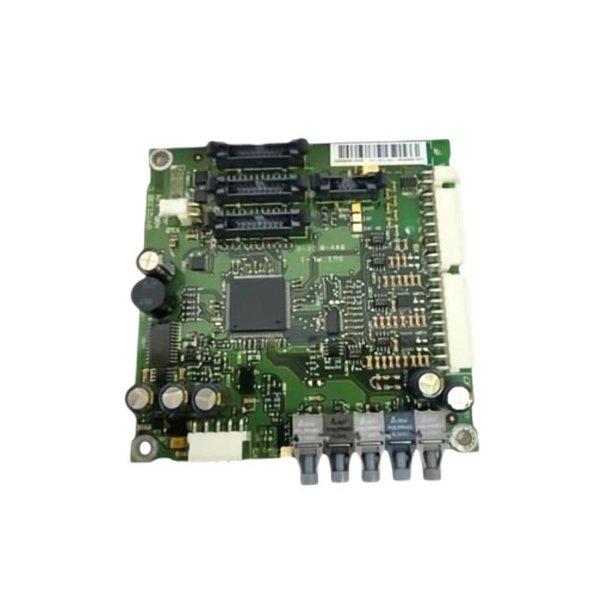

ABB AINT-12C 64715810 MC Interface Board

The ABB AINT-12C (Part No. 64715810) is a high-performance MC (Master Communication) Interface Board designed for robust industrial communication in critical automation systems. As part of ABB’s renowned Advant Controller 400 series, this module serves as a reliable bridge between the controller and peripheral devices, ensuring stable and synchronized data transmission in distributed control systems.

This board is engineered with industrial-grade components that guarantee long-term stability, even in harsh operating environments. The AINT-12C facilitates seamless integration with ABB’s control systems and supports multiple communication protocols, making it a versatile and dependable solution for a wide range of industrial applications.

Product Specifications

Product Applications

The ABB AINT-12C board is widely used in the following industrial scenarios:

• Distributed Control Systems (DCS): Facilitates communication between main controllers and subsystems in chemical plants, oil & gas refineries, and power stations.

• Manufacturing Automation: Acts as a bridge for high-speed data exchange between PLCs and supervisory control systems.

• Energy & Utilities: Used in energy monitoring and control applications, ensuring consistent data relay in power distribution.

• Metals and Mining: Provides rugged communication support in mining process control systems.

• Pulp and Paper: Interfaces between various processing stages, synchronizing operational data.

Product Advantages

• High Reliability: Industrial-grade components ensure stable long-term operation in demanding environments.

• Seamless Integration: Fully compatible with ABB’s Advant and Masterpiece platforms, reducing integration time.

• Fast Communication: Supports ABB’s high-speed MC protocol for low-latency data transmission.

• Compact Design: Small footprint allows installation in dense control cabinets.

• Field-Proven: Time-tested in thousands of installations globally with minimal failure rates.

• Firmware Upgradable: Extends lifecycle and ensures compatibility with evolving systems.

• LED Diagnostics: Quick fault identification via onboard status LEDs.

FAQ

1. What systems is the ABB AINT-12C compatible with?

   It is primarily designed for the ABB Advant Controller 400 and Masterpiece DCS systems.

2. Can this board be used in non-ABB systems?

   While it’s optimized for ABB systems, integration into other systems may require custom interfacing or protocol conversion.

3. Is the firmware on the AINT-12C upgradable?

   Yes, the module supports firmware upgrades via its controller interface.

4. What is the typical installation method?

   The board is designed for slot-based installation into a DIN-rail mounted ABB rack system.

5. Does it require active cooling?

   No, it uses passive air cooling for thermal management.

6. Are status LEDs available for diagnostics?

   Yes, it includes onboard LEDs for operational and fault indication.

7. What is the average lifespan of the AINT-12C board?

   With proper operating conditions, it exceeds 10 years of active service life.

8. Is the board RoHS and CE compliant?

   Yes, the board adheres to international compliance standards, including CE and RoHS.

9. Can the board operate in high-humidity environments?

   Yes, up to 95% relative humidity in non-condensing conditions.

10. How do I know if the board is functioning properly?

    Normal operation is indicated by green status LEDs; faults are indicated with red.
