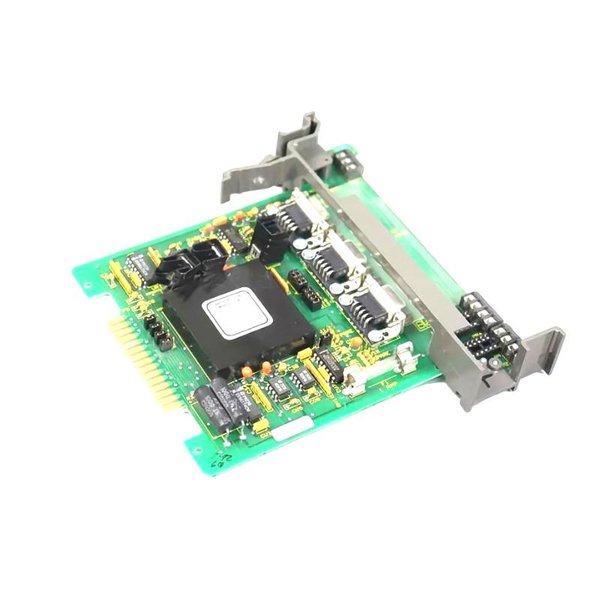

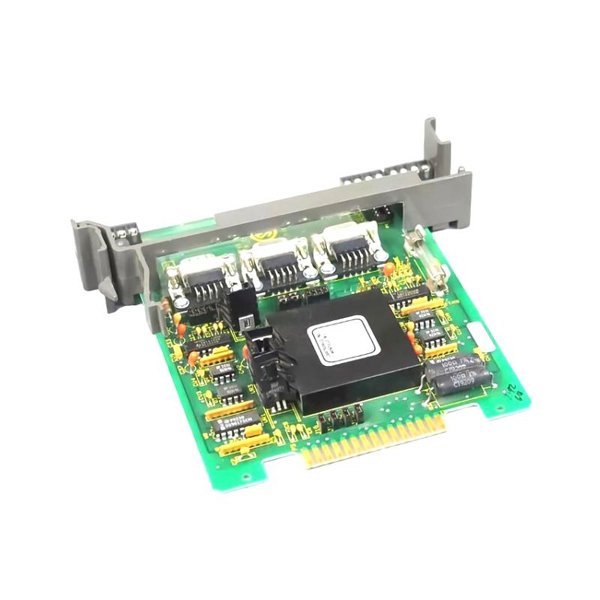

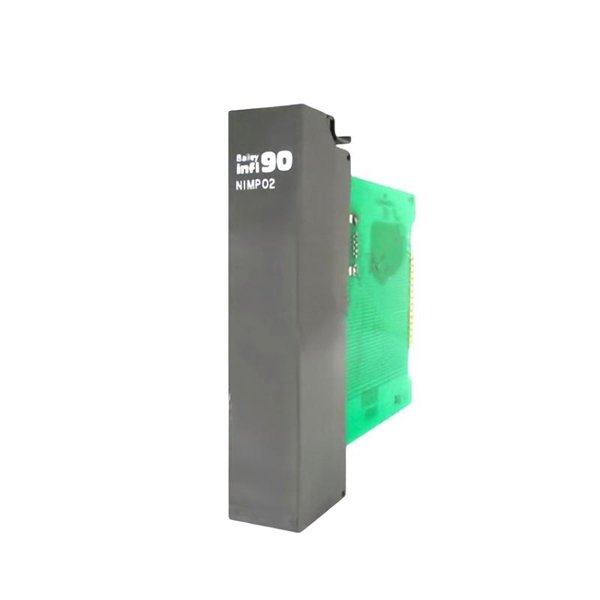

ABB Bailey NIMP02 Multifunction Controller Terminal Module

The ABB Bailey NIMP02 Multifunction Controller Terminal Module is an integral component of ABB’s Infi 90 Distributed Control System (DCS), offering advanced interface and control capabilities for various industrial automation applications. Designed to seamlessly integrate into complex control architectures, the NIMP02 module enables connectivity between controllers, I/O modules, and higher-level process systems.

As part of ABB’s highly reliable and field-proven Bailey Infi 90 series, the NIMP02 plays a key role in executing control strategies, processing real-time data, and ensuring effective system communication. It supports flexible programming, modular expansion, and offers a robust platform for continuous process control in industries such as power generation, oil & gas, chemical processing, and metals.

Thanks to its rugged design and proven performance in demanding environments, the NIMP02 Multifunction Controller Terminal Module is widely used in modern industrial control systems and continues to be a preferred solution for both system upgrades and legacy DCS support.

Product Specifications

Applications

The ABB Bailey NIMP02 Multifunction Controller Terminal Module is suitable for a wide range of applications across various industries:

• Power Generation

  Control and monitoring of turbines, generators, boilers, and auxiliary systems.

• Oil & Gas

  Distributed control of upstream, midstream, and downstream equipment including pumps, compressors, and separators.

• Chemical & Petrochemical

  Continuous process control for reactors, heat exchangers, and distillation units.

• Metals & Mining

  Automation of rolling mills, blast furnaces, and conveyor systems.

• Pulp & Paper

  Control of paper machines, dryers, and chemical processing stages.

• Water & Wastewater Treatment

  Supervisory control of pumps, valves, chemical dosing systems, and filtration equipment.

Advantages

The NIMP02 Multifunction Controller Terminal Module offers several significant benefits:

• Reliable Data Interface

  Ensures seamless communication between control processors and field I/O devices.

• Robust Design

  Built to operate reliably in harsh industrial environments with wide temperature and humidity ranges.

• Flexible Integration

  Compatible with both legacy and upgraded ABB Infi 90 systems.

• Modular and Scalable

  Supports expansion of I/O points and integration into large-scale DCS architectures.

• Proven Field Performance

  Established in numerous mission-critical installations worldwide.

• LED Diagnostics

  Provides visual status indicators for quick troubleshooting and maintenance.

• Minimal Downtime

  Hot-swappable for simplified maintenance without shutting down the entire system.

• Reduced Total Cost of Ownership

  Long lifecycle and compatibility with existing systems lower upgrade costs.

FAQs

1. What is the function of the NIMP02 module?

   It serves as an interface between the controller and connected I/O modules in an ABB Infi 90 DCS.

2. Is the NIMP02 compatible with legacy Bailey Infi 90 systems?

   Yes, it is fully compatible with legacy and upgraded Infi 90 installations.

3. Does the module support hot-swapping?

   Yes, the NIMP02 can be hot-swapped for maintenance purposes.

4. What communication protocols does it use?

   It communicates over the proprietary Bailey Infi 90 bus with serial connections to field devices.

5. What kind of diagnostics does it provide?

   The NIMP02 has LED indicators for monitoring module health and communication status.

6. What is the operating temperature range?

   0°C to +60°C.

7. Is it CE compliant?

   Yes, it meets CE and RoHS compliance standards.

8. What industries commonly use this module?

   Power generation, oil & gas, chemical processing, metals & mining, pulp & paper.

9. Can it be integrated with modern ABB control systems?

   Yes, it is often used in hybrid DCS configurations combining modern and legacy systems.

10. What is the physical size of the module?

    It measures 305 × 102 × 50 mmand weighs 0.8 kg.
