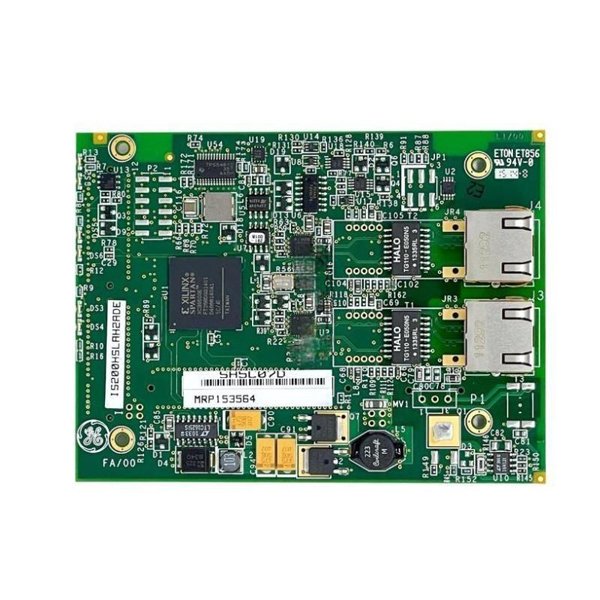

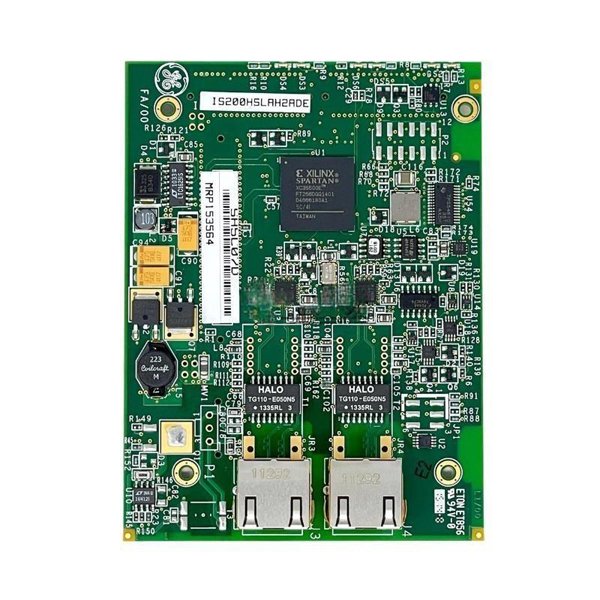

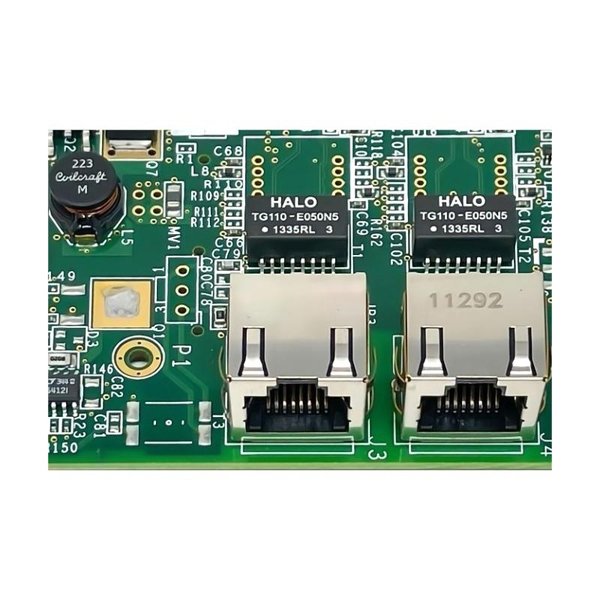

General Electric IS200HSLAH1A High Speed Serial Link Interface Module

The GE IS200HSLAH1A High Speed Serial Link Interface Module is a critical component used in industrial automation systems. It enables high-speed serial communication between control systems and remote devices, enhancing overall system efficiency and reducing communication delays. The module is designed to support various communication protocols, ensuring that it can be seamlessly integrated into different control environments.

This module is primarily used in applications where high-speed, real-time data exchange is essential, such as in industrial control systems, distributed control systems (DCS), and programmable logic controller (PLC) networks. It provides reliable and stable communication over extended distances, making it ideal for demanding environments.

Product Specifications

Product Applications

The GE IS200HSLAH1A is used in various industrial settings where reliable and high-speed communication is needed for controlling equipment and exchanging data across different systems. Its primary applications include:

• Industrial Control Systems: The module is often used in automation systems that require high-speed data transfer between controllers, sensors, and actuators.

• Distributed Control Systems (DCS): In DCS environments, the module ensures seamless and continuous communication between local and remote control systems, enabling centralized monitoring and management.

• Programmable Logic Controllers (PLC): It can be used as an interface to connect PLC systems for the exchange of real-time data and operational commands, improving control system performance and reliability.

• Remote Data Monitoring: In remote monitoring applications, this module ensures that high-speed data is transmitted efficiently over long distances, making it ideal for operations in remote locations.

Product Advantages

1. High-Speed Communication: The module supports a high data transfer rate of 1 Mbps, making it ideal for time-sensitive applications where rapid data exchange is necessary.

2. Reliable Performance: Designed for use in harsh industrial environments, it offers stable and reliable operation even under extreme conditions such as temperature variations and electrical noise.

3. Wide Compatibility: The IS200HSLAH1A module supports multiple communication protocols, ensuring that it can be easily integrated into a variety of industrial systems, including PLCs, DCS, and other control systems.

4. Compact Design: Its compact form factor allows it to be installed in tight spaces, ensuring that system layouts remain efficient and organized without sacrificing performance.

5. Low Power Consumption: The module consumes only 5W, which makes it energy-efficient and helps reduce operational costs in large-scale installations.

6. Durability: Built to last, it is designed to operate in tough industrial environments with temperatures ranging from -10°C to 60°C.

FAQ

1. What communication protocols does the IS200HSLAH1A support?

   The IS200HSLAH1A supports serial link protocols for high-speed communication in industrial environments.

2. Can the module be used in distributed control systems?

   Yes, the module is ideal for use in DCS systems, ensuring seamless communication between control systems and remote devices.

3. Is the module compatible with PLC systems?

   The IS200HSLAH1A is fully compatible with PLCs, making it a suitable option for industrial automation applications.

4. What is the maximum data transfer rate supported by the module?

   The module supports a maximum data transfer rate of 1 Mbps, ensuring fast and efficient data exchange.

5. Can the module be mounted on a DIN rail?

   Yes, the module is designed for easy installation on a DIN rail or panel mount.

6. What is the operating temperature range of the IS200HSLAH1A?

   The module can operate in temperatures ranging from -10°C to 60°C, making it suitable for a variety of industrial environments.

7. Is this module suitable for remote data monitoring applications?

   Yes, the IS200HSLAH1A is an excellent choice for remote data monitoring due to its high-speed communication capabilities over extended distances.

8. What is the power consumption of the module?

   The IS200HSLAH1A has a low power consumption of 5W, making it energy-efficient.

9. What is the weight of the module?

   The module weighs approximately 0.75 kg (1.65 lbs), ensuring it is lightweight for easy installation.

10. Is the IS200HSLAH1A CE and UL certified?

    Yes, the module complies with CE, UL, and CSA standards, ensuring it meets international safety and quality regulations.
